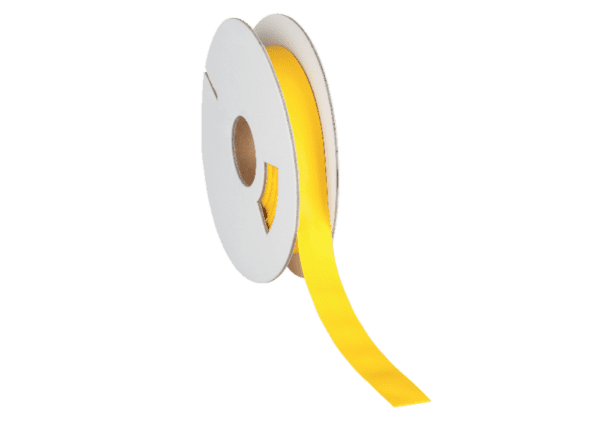

ST-BT-H For rail transport, endless

Polyolefin (PO) heat shrink tubing, type ST-BT-H, endless

Halogen-free, polyolefin, heat-shrinkable cable marker tubing with excellent properties
For use with the thermal pattern transfer method. This hose, with its special approvals, is particularly suitable for applications in air and rail transport, marine and coastal construction, and tunnel construction.

Characteristics

• Excellent printing characteristics
• Flat-rolled, for thermal transfer printing
• Halogen-free, thin-walled
• Shrinkage Ratio: 2:1 (Recommended shrinkage range from max. value -20% to min. value +20%)
• Vehicle class: 1a according to BS 6853 (1999)
• Flammability: ASTM D 635-HB
• Shrinkage temperature: > 90° C
• Operating temperature: from -55 to +105° C

Standards

• ASTM D 635-HB "Flammability"«
• Boeing BSS 7239 "Emission of Toxic Gases During Combustion of Materials" M7
• Railway standards
• EN 45545-2 level 3x HL3 (R22)
• BS6853 (1999) for Class 1a vehicles
• UNI CEI 11170-3 level LR4
• DIN 5510-2 Appendix C "Low toxicity of flue gases"«
• DIN 5510-2 "Droplet Formation Class" ST2
• DIN 5510-2 "Smoke emission class" SR2
