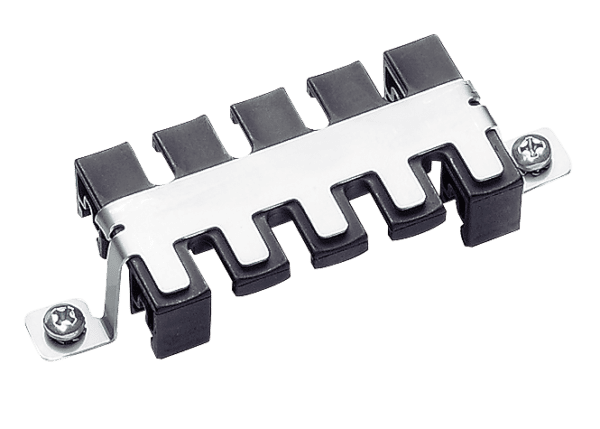

The KAF/SF cable support bar is designed to divert interference that may occur on cable shields. Grounding is achieved using a special snap-on support for a 35 mm U-shaped busbar (EN50022). By wrapping the cable around the KAF/SF and clamping it within the KAF/SF, contact is achieved with the KAF/SF. The KAF/SF's pawl ensures low-impedance grounding. The use of two contact points ensures good interference diversion regardless of the cable's position on the KAF/SF.
Suitable for 35mm U-shaped rail (EN50022)
It just snaps into place
| Name | GTIN | Article |
|---|---|---|
| KAF/SF-50 EMV | 4045005065735 | 87201240 |
| KAF/SF-83 EMV | 4045005192066 | 87201242 |
| KAF/SF-116 EMV | 4045005196118 | 87201244 |
| KAF/SF-180 EMV | 4045005188090 | 87201248 |
| Type of product | Color | GTIN | Quantity | Min. order |
|---|---|---|---|---|
| KAF/SF-50 EMV | 4045005065735 | 1 | 1 | |
| KAF/SF-83 EMV | 4045005192066 | 1 | 1 | |
| KAF/SF-116 EMV | 4045005196118 | 1 | 1 | |
| KAF/SF-180 EMV | 4045005188090 | 1 | 1 |
