P-VW 45-M

P-VW 45-M

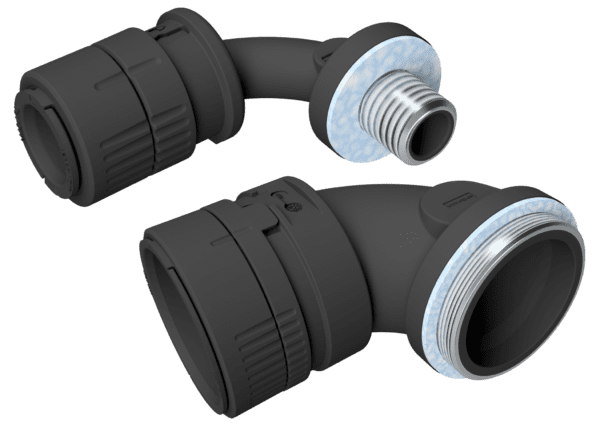

The M-PRO P-VW 45°-M hose coupling, a super-tight and cable-safe threaded coupling with a 45° metal external thread, is used for quick and secure connections of corrugated pipes. It offers excellent chemical resistance and is suitable for outdoor use thanks to its UV and weather resistance.

Specification:

  • ECE 324 R 118 Annex 6+8

Other benefits:

  • Installation/dismantling of corrugated pipes without tools
  • High density padding
  • High degree of fixation
  • Resistance to vibration, shock and vibration
SKU: 184867 Category:

Description

Options

Name GTIN Article
None 4045005446909 83403250
None 4045005446886 83403252
None 4045005446879 83403254
None 4045005446855 83403256
None 4045005446848 83403258
None 4045005446817 83403261
None 4045005446800 83403263
None 4045005446770 83403266
None 4045005446763 83403268
None 4045005446749 83403270
None 4045005446732 83403272
None 4045005446718 83403274
None 4045005446701 83403276
None 4045005446688 83403278
None 4045005446664 83403280
None 4045005446336 83403651
None 4045005446329 83403653
None 4045005446312 83403657
None 4045005446299 83403662
None 4045005446282 83403663
None 4045005446268 83403666
None 4045005446251 83403668
None 4045005446244 83403670
None 4045005446237 83403672
None 4045005447098 83403201
None 4045005447074 83403203
None 4045005447067 83403205
None 4045005447043 83403207
None 4045005447036 83403209
None 4045005430946 83403212
None 4045005430939 83403214
None 4045005447005 83403217
None 4045005446992 83403219
None 4045005446978 83403221
None 4045005446961 83403223
None 4045005446947 83403225
None 4045005446930 83403227
None 4045005430915 83403229
None 4045005446916 83403231
None 4045005446442 83403602
None 4045005446435 83403604
None 4045005446428 83403608
None 4045005446404 83403613
None 4045005446398 83403614
None 4045005446374 83403617
None 4045005446367 83403619
None 4045005446350 83403621
None 4045005446343 83403623



Metric metal thread

Type of product Color GTIN Quantity Min. order
P-VW/L 45-M12/07-M Black 4045005446909 4 4
P-VW/L 45-M12/09-M Black 4045005446886 4 4
P-VW/L 45-M16/09-M Black 4045005446879 4 4
P-VW/L 45-M16/11-M Black 4045005446855 4 4
P-VW/L 45-M20/11-M Black 4045005446848 4 4
P-VW/L 45-M20/16-M Black 4045005446817 4 4
P-VW/L 45-M25/16-M Black 4045005446800 4 4
P-VW/L 45-M25/21-M Black 4045005446770 4 4
P-VW/L 45-M32/21-M Black 4045005446763 2 2
P-VW/L 45-M32/29-M Black 4045005446749 2 2
P-VW/L 45-M40/29-M Black 4045005446732 2 2
P-VW/L 45-M40/36-M Black 4045005446718 2 2
P-VW/L 45-M50/36-M Black 4045005446701 2 2
P-VW/L 45-M50/48-M Black 4045005446688 2 2
P-VW/L 45-M63/48-M Black 4045005446664 2 2



Metal thread type PG

Type of product Color GTIN Quantity Min. order
P-VW/L 45-PG07/07-M Black 4045005446336 4 4
P-VW/L 45-PG09/09-M Black 4045005446329 4 4
P-VW/L 45-PG11/11-M Black 4045005446312 4 4
P-VW/L 45-PG13.5/16-M Black 4045005446299 4 4
P-VW/L 45-PG16/16-M Black 4045005446282 4 4
P-VW/L 45-PG21/21-M Black 4045005446268 4 4
P-VW/L 45-PG29/29-M Black 4045005446251 2 2
P-VW/L 45-PG36/36-M Black 4045005446244 2 2
P-VW/L 45-PG48/48-M Black 4045005446237 2 2

Additional details

Type of product Order number Color UV Connecting thread Suitable for Murrflex A mm EH mm AD mm GL mm LW mm B mm SW mm Qty. pcs.
Metric metal thread

P-VW/L 45-M12/07-M

83403250

Black

1

M12 x 1.5

M10/P07

55.3

44.3

23.7

12

5.3

46

11

4

P-VW/L 45-M12/09-M

83403252

Black

1

M12 x 1.5

M12/P09

57.2

46.2

25

12

5.5

47.4

11

4

P-VW/L 45-M16/09-M

83403254

Black

1

M16 x 1.5

M12/P09

57.2

46.2

25

12

8.8

47.4

15

4

P-VW/L 45-M16/11-M

83403256

Black

1

M16 x 1.5

M16/P11

62.2

51.2

27.9

12

8.9

51.9

15

4

P-VW/L 45-M20/11-M

83403258

Black

1

M20 x 1.5

M16/P11

62.2

51.2

27.9

12

12.6

53.4

18

4

P-VW/L 45-M20/16-M

83403261

Black

1

M20 x 1.5

M20/P16

67.9

56.9

33.7

12

12.5

58.3

19

4

P-VW/L 45-M25/16-M

83403263

Black

1

M25 x 1.5

M20/P16

68.9

57.4

33.7

13

17

61.5

24

4

P-VW/L 45-M25/21-M

83403266

Black

1

M25 x 1.5

M25/P21

76.5

65

41.6

13

17

68

24

4

P-VW/L 45-M32/21-M

83403268

Black

1

M32 x 1.5

M25/P21

77.5

65

41.6

14

23.5

71.8

32

2

P-VW/L 45-M32/29-M

83403270

Black

1

M32 x 1.5

M32/P29

87.3

74.8

51

14

23.2

80.9

30

2

P-VW/L 45-M40/29-M

83403272

Black

1

M40 x 1.5

M32/P29

91.3

76.3

51

17

29.5

85.4

36

2

P-VW/L 45-M40/36-M

83403274

Black

1

M40 x 1.5

M40/P36

100.7

85.7

60

17

29.9

92.6

41

2

P-VW/L 45-M50/36-M

83403276

Black

1

M50 x 1.5

M40/P36

100.7

85.7

60

17

38.4

97.6

50

2

P-VW/L 45-M50/48-M

83403278

Black

1

M50 x 1.5

M50/P48

112.3

97.3

71

17

38.8

106.1

50

2

P-VW/L 45-M63/48-M

83403280

Black

1

M63 x 1.5

M50/P48

113.3

98.3

71

17

47.8

112.6

60

2
Metal thread type PG

P-VW/L 45-PG07/07-M

83403651

Black

1

PG 07

M10/P07

55.3

44.3

23.7

12

5.3

46

11

4

P-VW/L 45-PG09/09-M

83403653

Black

1

PG 09

M12/P09

57.2

46.2

25

12

7.8

46.9

14

4

P-VW/L 45-PG11/11-M

83403657

Black

1

PG 11

M16/P11

62.2

51.2

27.9

12

10.6

53.4

17

4

P-VW/L 45-PG13.5/16-M

83403662

Black

1

PG 13.5

M20/P16

68.9

56.9

33.7

13

12.2

61.6

20

4

P-VW/L 45-PG16/16-M

83403663

Black

1

PG 16

M20/P16

68.9

56.9

33.7

13

14.3

61.6

21

4

P-VW/L 45-PG21/21-M

83403666

Black

1

PG 21

M25/P21

77.5

65

41.6

14

19.8

71.8

28

4

P-VW/L 45-PG29/29-M

83403668

Black

1

PG 29

M32/P29

88.3

75.8

51

14

26.5

85.4

34

2

P-VW/L 45-PG36/36-M

83403670

Black

1

PG 36

M40/P36

100.7

85.7

60

17

36.2

97.6

46

2

P-VW/L 45-PG48/48-M

83403672

Black

1

PG 48

M50/P48

113.3

98.3

71

17

47.1

112.6

60

2
