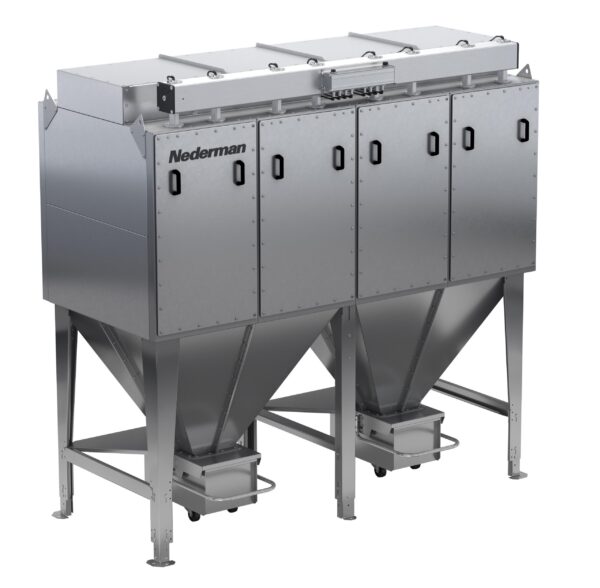

MEP Flat Bag Filter

The MEP SmartFilter is a multi-purpose filtration system. It can be configured to perfectly meet specific customer requirements, with airflow rates up to 10,500

Description

«The MEP SmartFilter is a multi-purpose filtration system. It can be configured to perfectly meet specific customer requirements. It is suitable for various types of dry dust and can be used in a variety of applications, including metal grinding, abrasive blasting, and general industrial dust.
The modular design allows for solutions with both stand-alone units and multiple units for broader applications. The MEP dust collector utilizes our proven fabric filter bags, which are easily serviced through front-hinged doors.
Bag filter materials are available to suit most applications, depending on dust type, dust load and filtration efficiency requirements.
The filter housing is made of 2mm steel panels, is easy to install, economical to transport, and corrosion-resistant. This design is designed for long service life with low operating costs.
The Insight cloud-ready controller with advanced pulse cleaning logic provides complete control and monitoring of system operation, as well as a gateway for functional communication with the cloud platform.
The MEP SmartFilter is available with a wide range of accessories including fans, inlet adapters, dust containers, etc., and bags can be selected from a wide variety of filter materials.»

  • Gain control over your filtration system with Insight Analytics, Nederman's unique monitoring technology.
  • Optimum footprint thanks to innovative medium airflow filter bag design.
  • Reduced operating costs thanks to an intelligent cleaning system, long service life and optimal footprint.
  • A future-ready system is what prepares you for the IoT (Internet of Things) – Insight Ready
Characteristics
Technical Data
Certification CE
Compressed air consumption 58 liters per cleaning pulse at 5.5 bar compressed air
Installation Outdoors, Indoors
Material 2 mm galvanized sheet metal
Suitable for explosive dust No
Filter cleaning method Pulse blowing
Application smoke, dust
Working pressure (kPa) Vacuum max. 6 kPa. Overpressure max. 0 Pa. (1.5 kPa for silotop solution)
Dust container capacity (l) 50 or 100 liter bin
Filter area (m²) 15 - 88
Performance (max. air flow m3/hour) 1800 - 10500
Operating temperature -20°C to +70°C
Filter material Depending on the area of application
