| Function principle | hydraulically operated piston pump | |
| Operating temperature | –20 to +60 °C | –4 to +140 °F |
| Operating back pressure | max. 300 bar | max. 4 350 psi |
| Lubricant | grease up to NLGI 2 | |
| Number of outlets | 1 | |
| Metering quantity | 0.04 to 0.24 cm³/stroke | 0.006 to 0.014 in³/stroke |
| Operation frequency | max. 6 strokes per minute | |
| Venting pressure | 10 bar | 145 psi |
| Reservoirs/cartridges | 380 to 500 ml | 12.8 to 16.9 oz |
| Hydraulic connection | G1/8 | |
| Connection outlet | G1/4 | |
| Dimensions | max. 390 × 150 × 60 mm | max. 15.35 × 5.90 × 2.36 in |
| Weight (incl. cartridge cover) | 1.6 kg | 3.5 lbs |
| Mounting position | upright / any with spring loaded cover | |

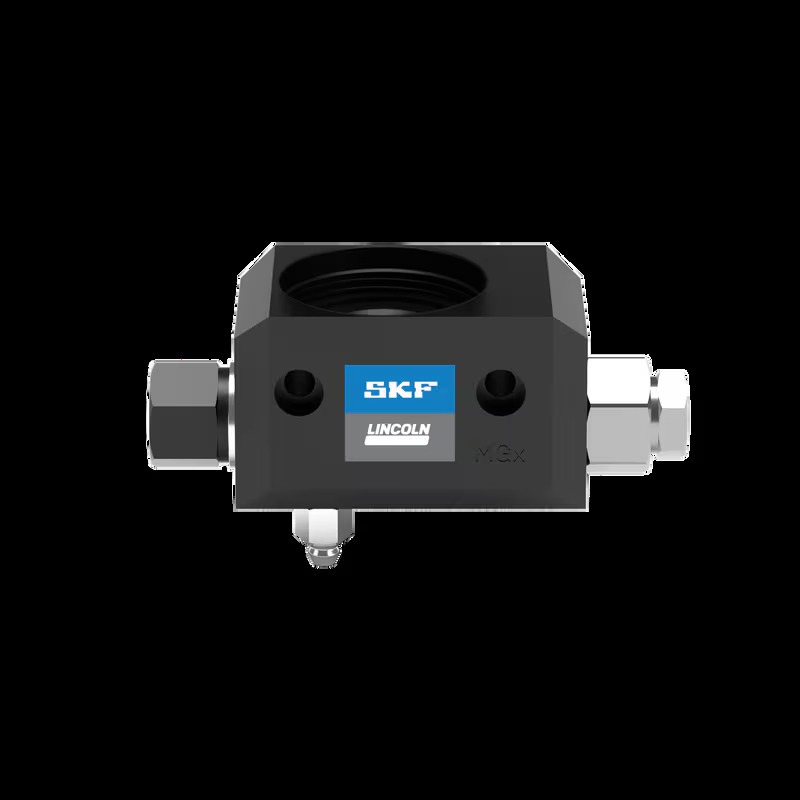

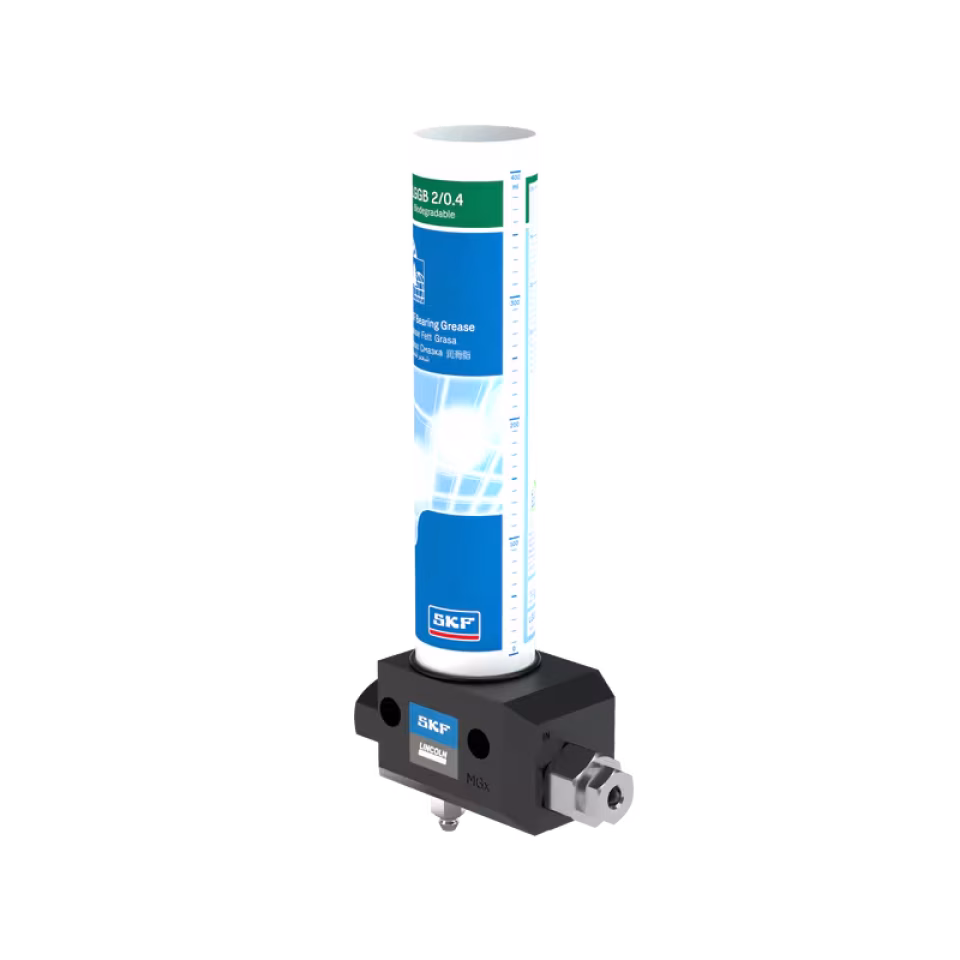

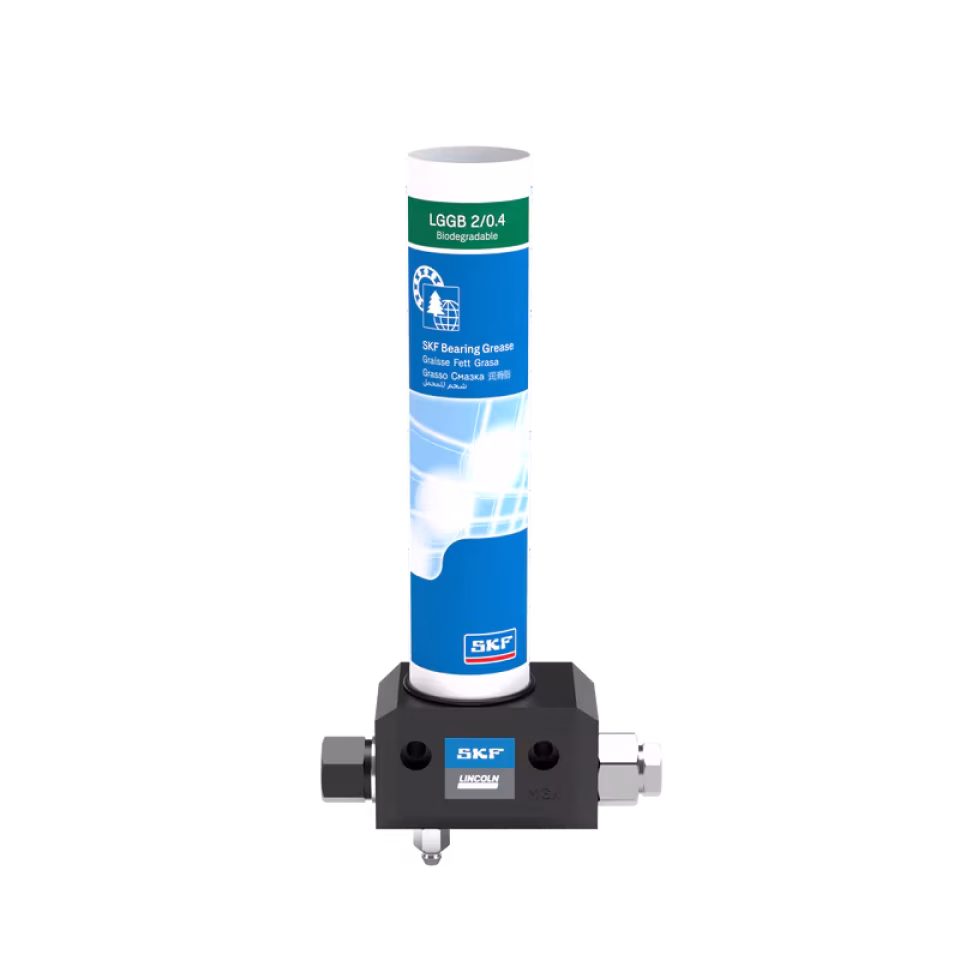

Hydraulically operated lubrication pump MGH
-
Single-shot grease pump for machines, vehicles and vehicle attachments

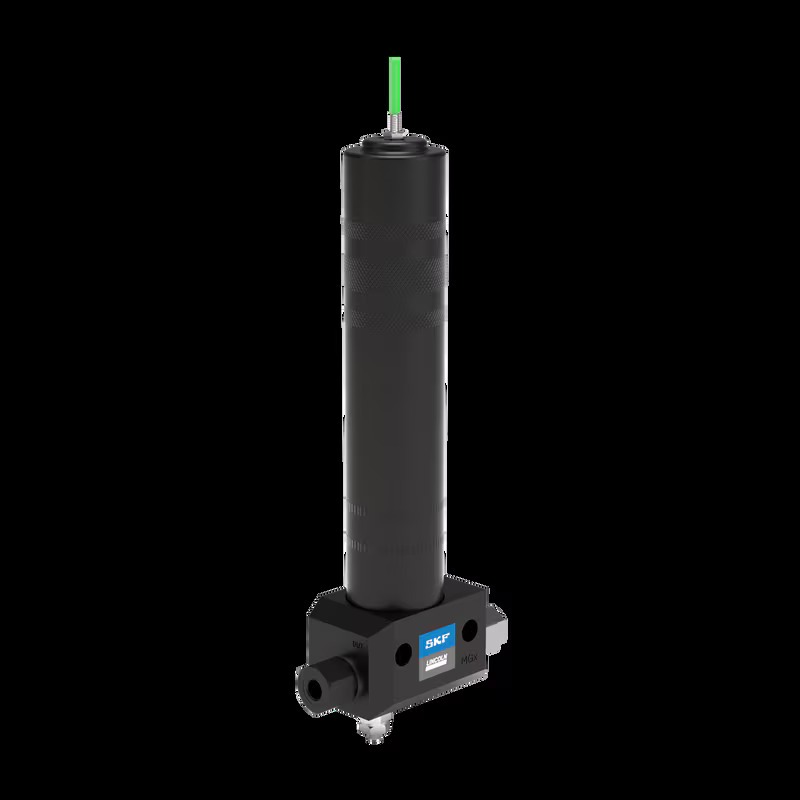

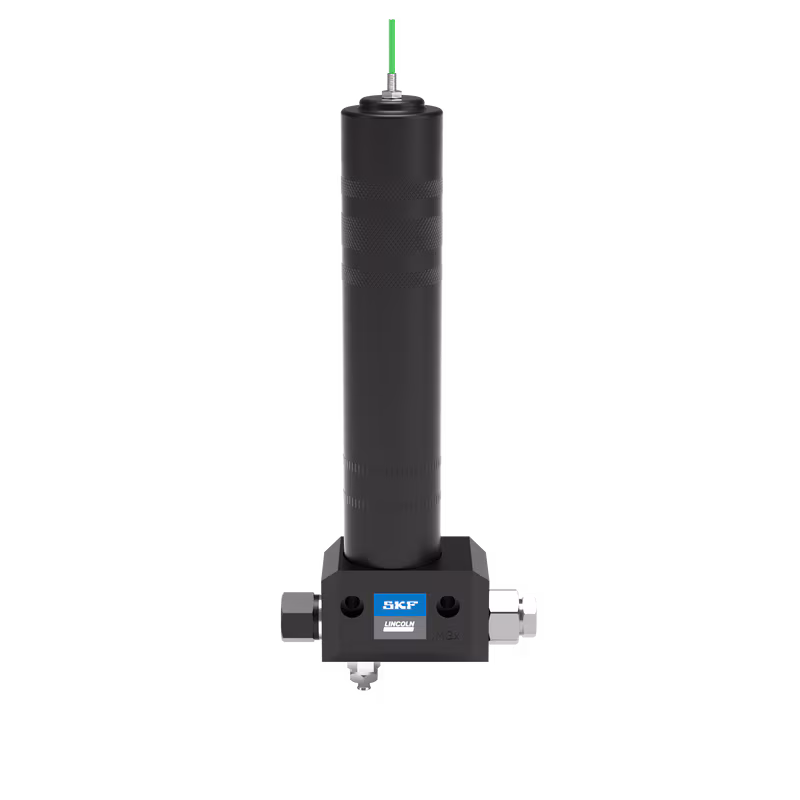

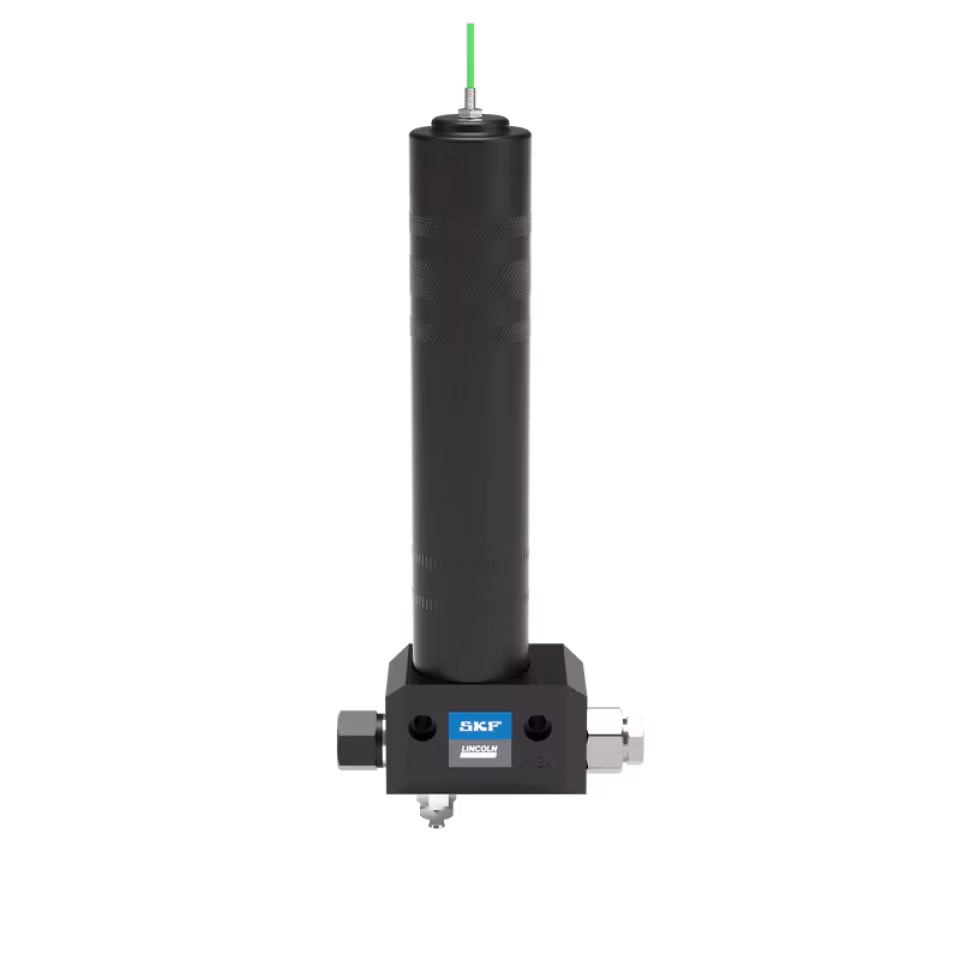

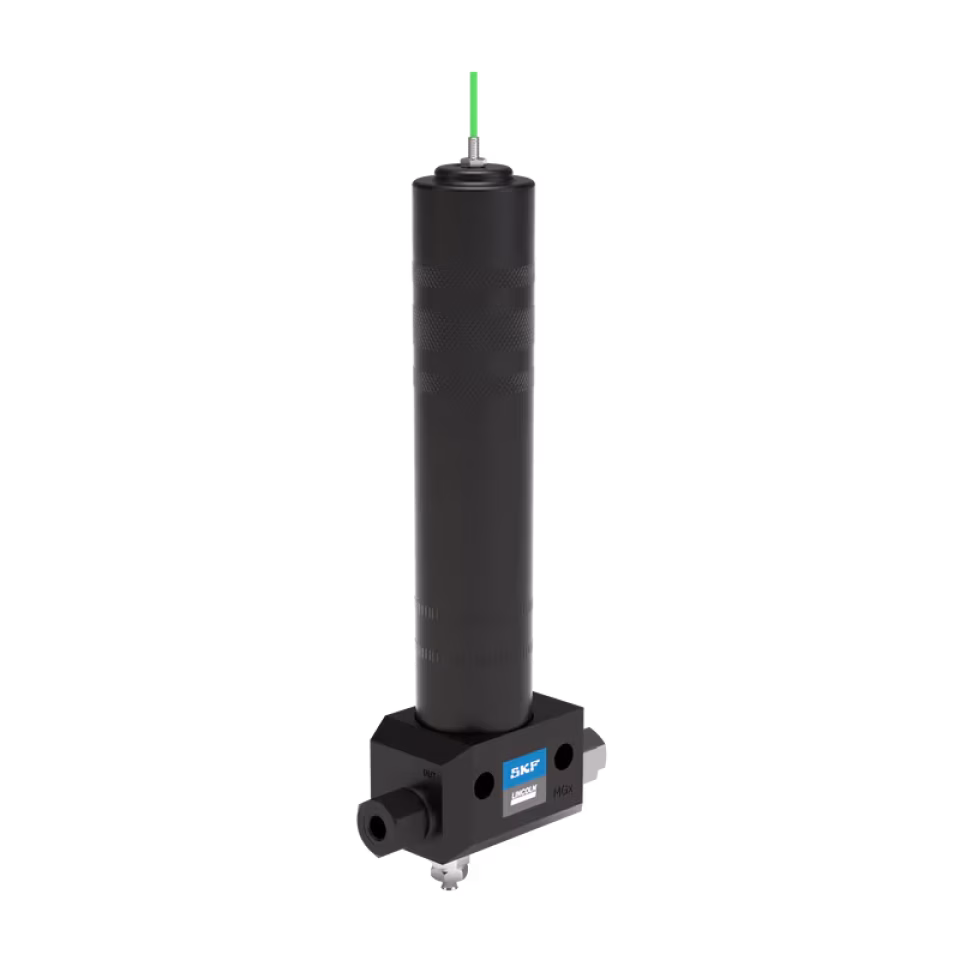

The MGH grease cartridge pump is designed for hydraulically driven machines. It can directly supply individual lubrication points or work within a system with progressive metering devices for up to 22 lubrication points. The lubricant cartridges facilitate easy maintenance, making them ideal for vehicle attachments used in construction, agriculture, and utility services. The robust SKF cartridge version is also suitable for hydraulic breakers and hammers. MGH pump elements deliver metering quantities ranging from 0.04 cm³ to 0.24 cm³ per shot. The Lube-Shuttle version with a cover features an optical low-level indicator and an optional electronic level sensor. MGH designs with a cover and spring-loaded cartridge piston can be installed horizontally if needed.
Features and benefits
- Perfect retrofitting automatic lubrication solution for hydraulically operated machines and vehicles
- Market proven pump elements (P203) for reliable lubricant supply
- Easy combination with SKF progressive metering devices as SSV and SSVD
- System pressures up to 300 bar
- Designed for 24/7 operation
- Easy to install and start up
- Market verified technology
Applications
- Vehicles and attachments
- Agriculture attachments
- Lifting and telehandlers
- Utility service vehicles
- Construction vehicles
- Breakers and hammers
Easy filling/cartridge exchange
The MGH grease cartridge pump is compatible with a wide range of cartridges, especially those with an internal piston, ensuring clean and trouble-free replacement. Lube-Shuttle 1)cartridges with SKF grease can be easily filled using the SKF refilling pumps.
| Part number 1) | Designation | Metering quantity | Cartridge or reservoir size | Level control | CAD | |||
| cm3/stroke | in³/stroke | ml | oz | |||||

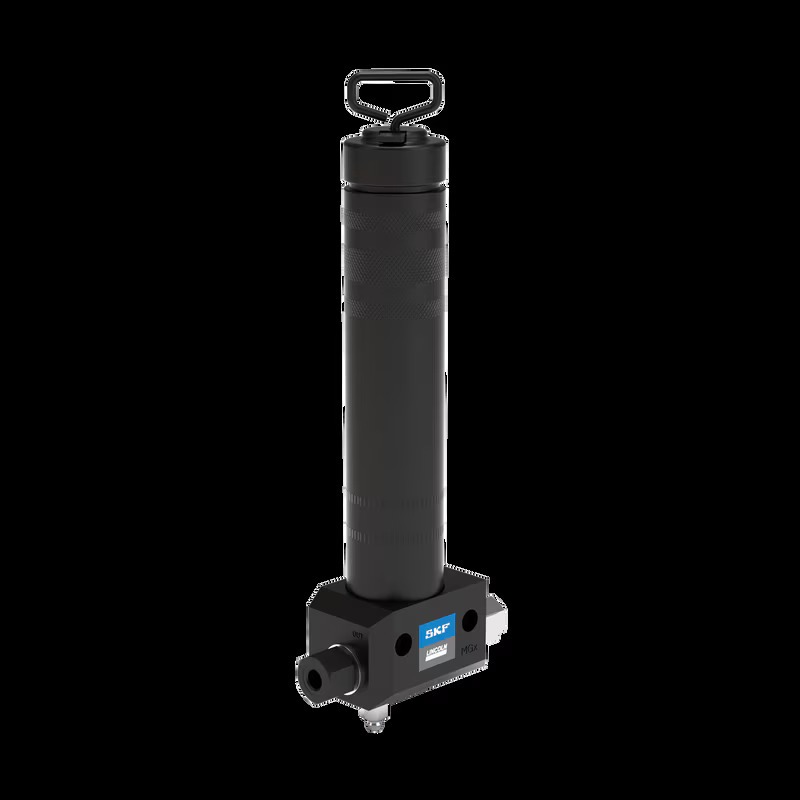

| MGH-LPLI-K70000 | MGH with covered Lube-Shuttle grease cartridge | 0.22 | 0.013 | 400 | 13.5 | visual indicator | STP | |
| MGH-LPLI-KR0000 | MGH with covered Lube-Shuttle grease cartridge | 0.04 — 0.18 2) | 0.006 — 0.014 2) | 400 | 13.5 | visual indicator | STP | |
| MGH-LNLN-K70000 | MGH for Lube-Shuttle grease cartridge | 0.22 | 0.013 | 400 | 13.5 | — | STP | |

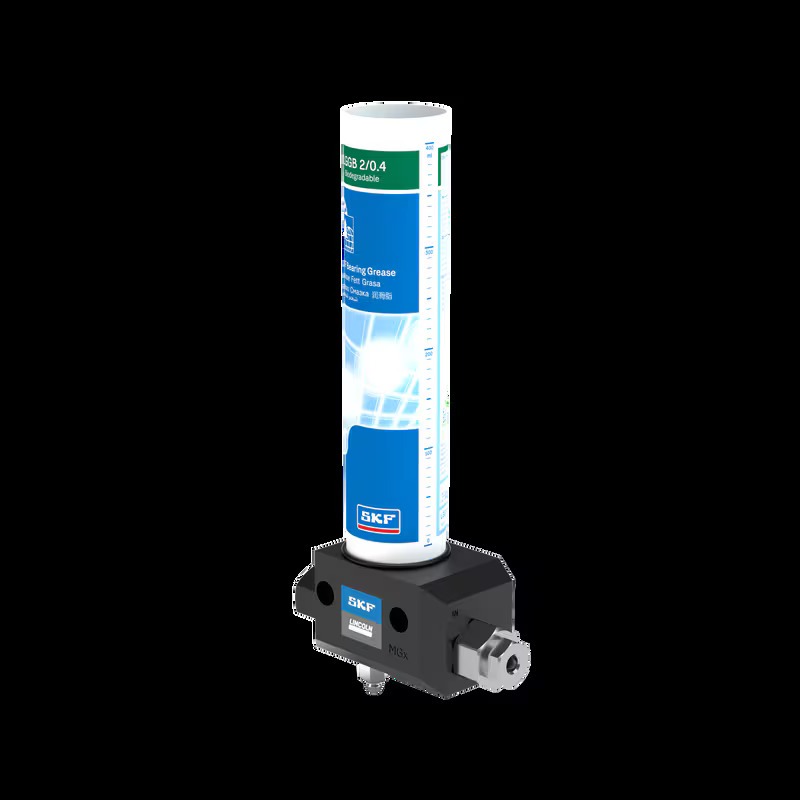

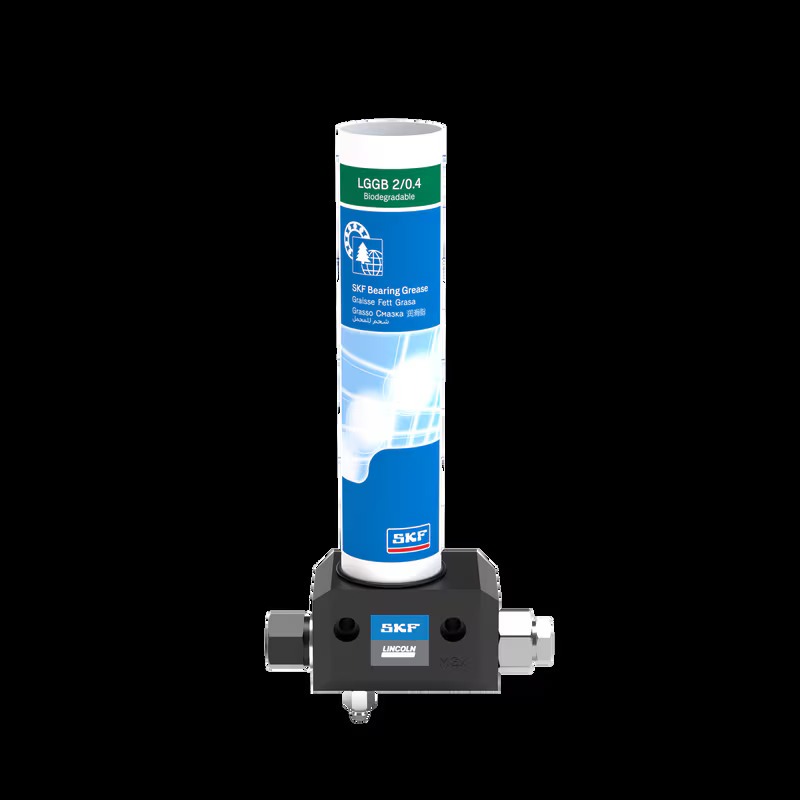

| MGH-SPLN-K70000 | MGH for standard grease tube or without tube | 0.22 | 0.013 | 420/500 | 14.2/16.9 | — | STP | |
| MGH-TNLN-K70000 | MGH incl. adapter for SKF TLMR grease cartridge | 0.22 | 0.013 | 380 | 12.8 | — | STP | |
| MGH-RNLN-K70000 | MGH incl. adapter for Lincoln grease cartridge | 0.22 | 0.013 | 380 | 12.8 | — | STP | |
| MGH-RNLN-KC0000 | MGH incl. adapter for Lincoln chisel paste cartridge | 0.24 | 0.014 | 380 | 12.8 | — | STP | |
