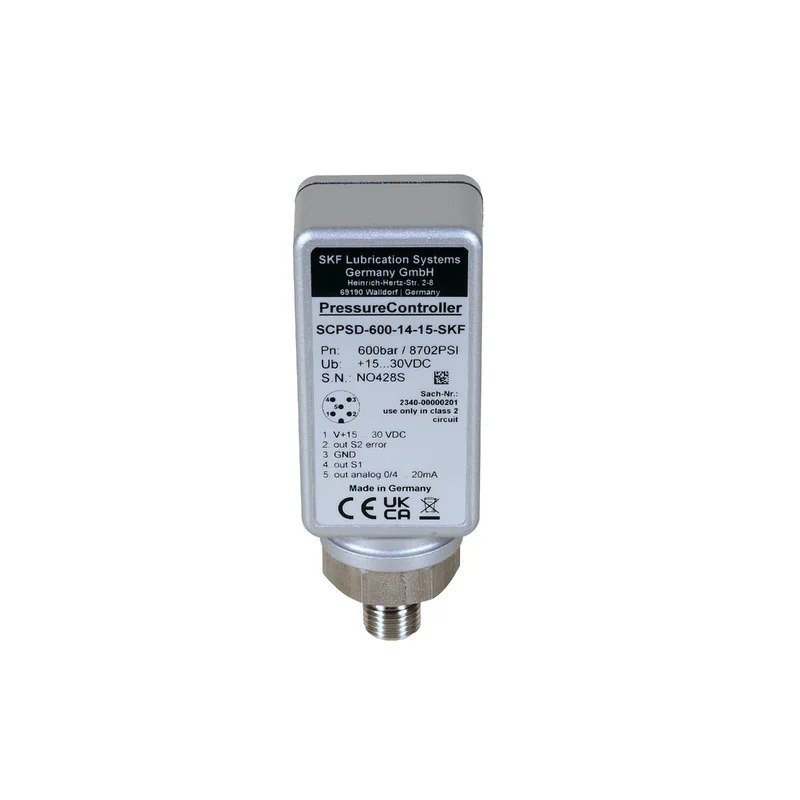

Digital pressure switch 2340-00000201

• Моторные Масла

• Pressure switch with analogue and digital outputs for automatic lubrication system monitoring

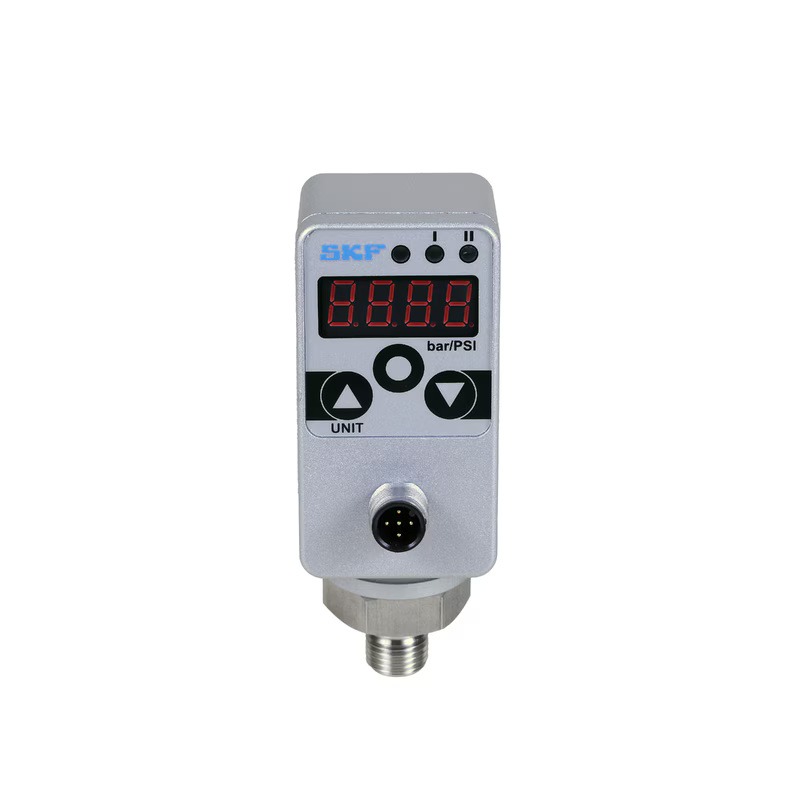

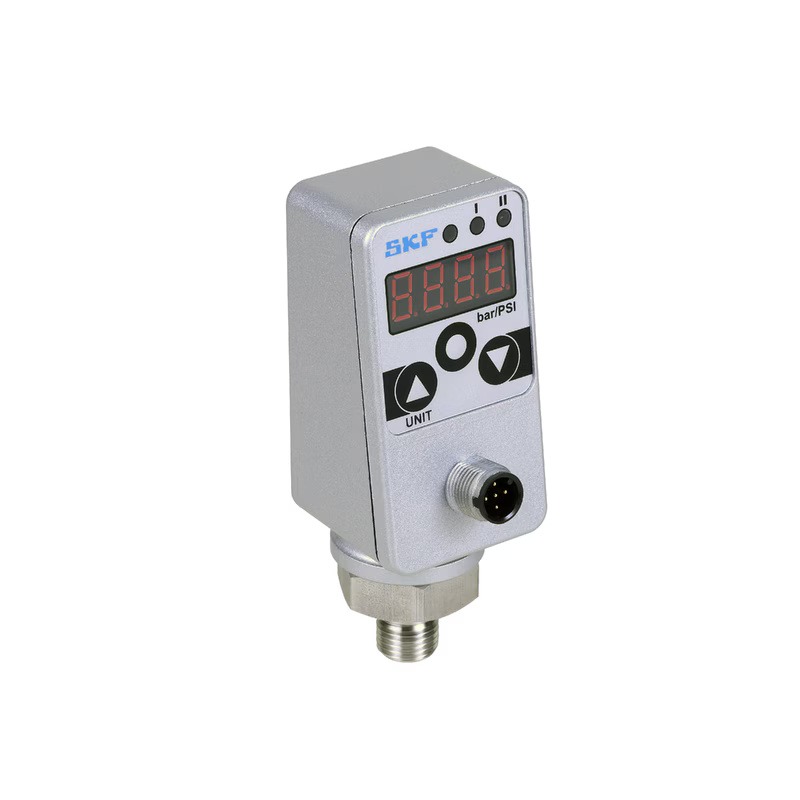

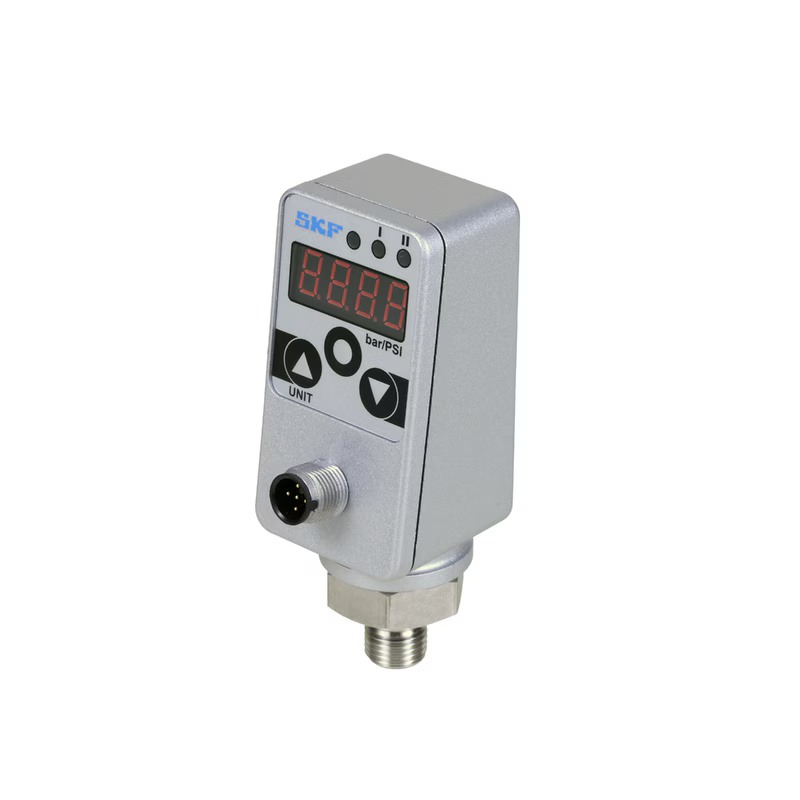

  This electronic pressure switch has a 4-digit digital display and an M12x1 (5-poles) connection for two digital switching signal outputs and one analogue signal output. Each switching output can be set individually such as normally open/closed contacts, on/off pressures, delay times, Hysteresis/window function and damping. The analogue output can be individually adjusted as well as start and end pressures. Programming is done on fingertips via 3 buttons. The metal housing can be turned 290° so that the digital display can be read optimally. The pressure switch is suitable for very high system pressures up to 600 bar (8700 psi) and it is virtually maintenance-free.

  Features and benefits

  • Intuitive user guidance via three buttons
  • Min./max. pressure and switching points
  • Adjustable values e.g. on/off pressures or hysteresis
  • Pressures can be displayed in MPa, bar or PSI
  • Reverse polarity and overvoltage protection, short circuit proof
  • The housing is made of metal and is resistant to moisture, shock and vibration
  • Protection class IP67 DIN EN 60529
  • Password protection

  applications

  • Wind energy
  • Machine tools
  • Printing machines
  • Construction machinery
  • Steel and heavy industry
  • Food and beverage industry
