Servo, instrumentation and system cables - flexible & highly flexible - for use in drag chains and robotics

This chapter includes servo drives, instrumentation and system cables for electric drive technology for fixed installations, as well as highly flexible cables for use in permanently (highly) moving equipment such as drag chains or robotics.

+7 701 419 2752

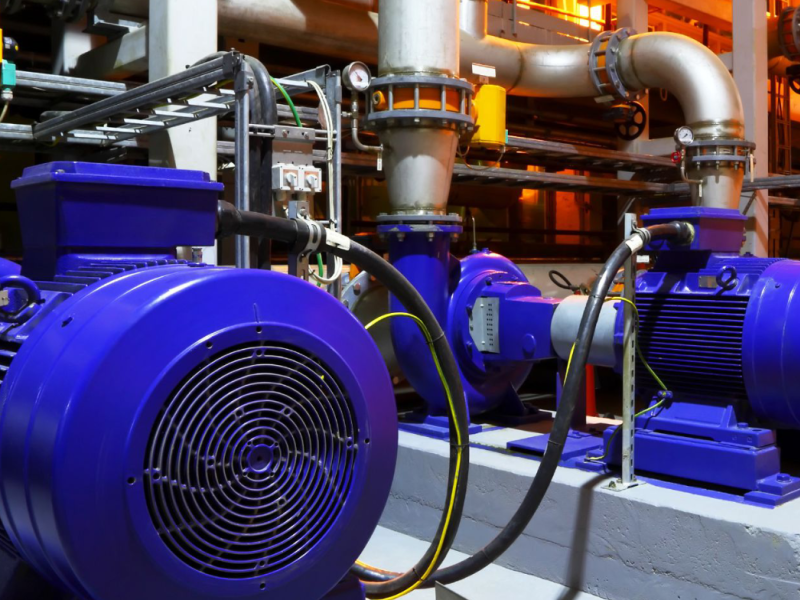

KAWEFLEX® Servo 2X… EMC cables with double shielding are suitable for fixed installations and occasional use as power, control, and connection cables for drive systems with frequency converters. The cross-linked polyethylene (XLPE) core insulation provides the same reliability as the standard polyethylene (PE) version, but thanks to this insulation, it can operate at higher conductor temperatures (2X: maximum conductor temperature 90°C versus 2Y: 70°C for the standard PE version).

Starting from a cross-section of 10 mm², they are available in an optimized design, where the earth wire is distributed between the main cores, which allows for a significant reduction in the diameter and weight of the cable.

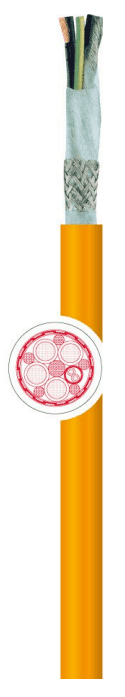

The KAWEFLEX® 5 series is also available for flexible use in drag chains as cables for servo drives, feedback, encoders, resolvers, and speed sensors. Signal and system cables for EMC-compliant connections are also available. These cables comply with the standards of Siemens (MC 500, MC800PLUS), Bosch Rexroth, SEW Eurodrive, Lenze, and other compatible systems. Our KINEMATICS® 3D series also withstands high torsional stress in robotic systems.

Servo cables 0.6/1 kV

  • KAWEFLEX® SERVO 2YSL(St)CY… & 2YSL(St)CYK 0.6/1kV, Optimized EMC, Double Shielded, K: UV-Resistant
  • KAWEFLEX® SERVO 2XSL(St)CY… & 2XSL(St)CYK 0.6/1kV, Optimized EMC, Double shielding, K: Flexible at low temperatures, UV-resistant
  • KAWEFLEX® SERVO 9YSL(St)CY… VFD 0.6/1kV, Optimized EMC, Double Shielded, SW: UV-Resistant
    radiation, underground installation, UL/CSA, CPR Eca
  • KAWEFLEX® SERVO 2XSL(St)CYK… VFD TRAY 0.6/1kV, Optimized EMC, Double Shielded, K: Low Temperature Flexible, UV Resistant, Buried, UL/CSA, CPR Eca
  • KAWEFLEX® SERVO 2XSL(St)CHK… FRNC 0.6/1kV, Optimized EMC, Double Shielded, Halogen-Free, K: Low Temperature Flexible, UV-Resistant, CPR Cca

KAWEFLEX® 5 Series – 0.6/1 kV Servo Drive Cables
for flexible use

  • KAWEFLEX® 5268 C-PVC SERVO 0.6/1 kV, shielded, UL/CSA, n..MC500
  • KAWEFLEX® 52DSL C-PVC 0.6/1kV, shielded, DSL Hybrid, UL/CSA

for use in drag chains

  • KAWEFLEX® 5178 SC SK-PVC 0.6/1 kV, Single-core, unshielded, UL/CSA
  • KAWEFLEX® 5278 SC SK-C-PVC 0.6/1 kV, Single-core, shielded, UL/CSA
  • KAWEFLEX® 5278 SK-C-PVC SERVO 0.6/1 kV, shielded, UL/CSA, n..MC500 PLUS
  • KAWEFLEX® 5288 SK-C-PUR SERVO 0.6/1 kV, shielded, UV-resistant, UL/CSA, n..MC800 PLUS
  • KAWEFLEX® 52DSL SK-C-PUR 0.6/1kV, shielded, DSL Hybrid, resistant to
    UV resistant, UL/CSA

KAWEFLEX® 5 Series - Measurement and System Cables (Feedback, Encoder, Resolver, Speed Sensor, Signal)
for flexible use

  • KAWEFLEX® 5468 C-PVC 300V, shielded, UL/CSA, n..MC500

for use in drag chains

  • KAWEFLEX® 5488 SK-C-PUR 300V, shielded, halogen-free, resistant to
    UV resistant, UL/CSA, n..MC800 PLUS

KAWEFLEX® ServoDriveQ UL/CSA – Cables for DRIVE-CLiQ applications
for fixed installation and flexible use

  • KAWEFLEX® ServoDriveQ C-PVC 300V, shielded, UL/CSA, n..MC200
  • KAWEFLEX® ServoDriveQ FLEX-C-PVC 300V, shielded, UL/CSA, n..MC500

for use in drag chains

  • KAWEFLEX® ServoDriveQ Plus SK-C-PUR 300/V, shielded, halogen-free, UV-resistant, UL/CSA, n..MC800 PLUS

KAWEFLEX® Allround motor cables 0.6/1 kV for use in drag chains
for increased demands

  • KAWEFLEX® Allround 7310 SK-PVC 0.6/1 kV, unshielded, UL/CSA
  • KAWEFLEX® Allround 7410 SK-C-PVC 0.6/1 kV, shielded, UL/CSA

for the highest demands

  • KAWEFLEX® Allround 7510 SK-TPE 0.6/1 kV, Single-core, Unshielded, Halogen-Free, UV-Resistant, UL/CSA
  • KAWEFLEX® Allround 7520 SK-TPE 0.6/1kV, Single-core, Unshielded, Halogen-Free, UV-Resistant, UL/CSA
  • KAWEFLEX® Allround 7610 SK-C-TPE 0.6/1 kV, Single-core, Shielded, Halogen-Free, UV-Resistant, UL/CSA
  • KAWEFLEX® Allround 7320 SK-TPE 0.6/1kV, unshielded, halogen-free, UV-resistant, UL/CSA
  • KAWEFLEX® Allround 7420 SK-C-TPE 0.6/1kV, shielded, halogen-free, UV-resistant, UL/CSA

KAWEFLEX KINEMATICS® 3D Servo, MeSys and Hybrid Cables for Robotics with Torsional Loads
for bending and torsion applications

  • KAWEFLEX KINEMATICS® 3D Servo 0.6/1kV, Shielded, Halogen-Free, UV Resistant, UL/CSA
  • KAWEFLEX KINEMATICS® 3D 300V, Measurement and System Cable, Shielded, Halogen-Free, UV Resistant, UL/CSA
  • KAWEFLEX KINEMATICS® 3D Hybrid 0.6/1kV, shielded elements, halogen-free, UV-resistant, UL/CSA
