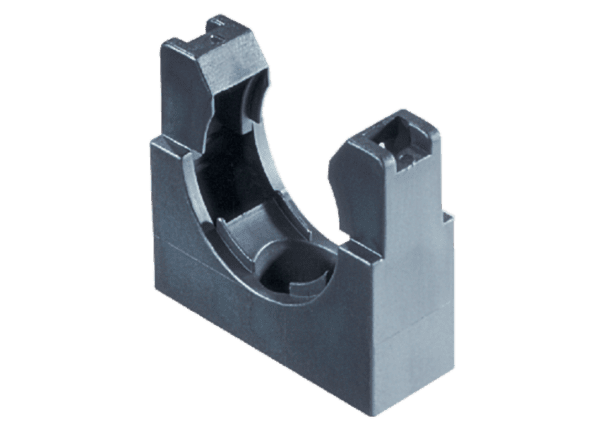

Type UH-S

Durable UH-S type hose holders are made from specially modified polyamide 6. This material is free of halogens, phosphorus and cadmium.

UH-S holders, with the ability to connect in series and thread one onto another, are ideal for systems requiring exceptional strength. Equipped with protective cable sleeves, they offer superior strength, flexibility, and durability, even under high dynamic loads.

UH-S holders in sizes from M20/P16 to M63/P56 have the following advantages:

• Secure fixation of the holder without using tools
• Safety for machines, as opening is only possible with a tool
• The upper part can be additionally secured with screws if necessary.
• Possibility of pre-installation of the lower part
• Suitable for all Murrflex corrugated pipe profiles
• UH-S holders in sizes M10/P07 to M16/P11 are secured with two screws. Screws are not included.

Specification:

• EN 45545-2 3x HL3
• ECE 324 R 118 Annex 6+8
