SSVC metering devices

For use in progressive lubrication systems

SSVC are block-type progressive metering devices that divide the incoming lubricant reliably into preset individual streams. With this type of metering device, opposite outlets are disconnected by a threaded pin, which means that their outlet volume can be optionally combined. This unique “cross-porting” concept allows for a maximum number of possible outlet combinations. SSVC metering devices are designed for oil and grease systems with a maximum operating pressure of 350 bar. They are made in nine different designs with 6 to 22 outlets. Operation monitoring is possible by using an indicator pin for visual system monitoring or inductive piston detectors for electrical system monitoring. SSVC outlet fittings can be combined with check-valves to achieve optimal operational performance even in demanding applications.

Features and benefits

6 to 22 outlet designs
Made from stainless steel
Easy to install and customize
A variety of cross-porting options
Several reliable monitoring options
Suitable for oil and grease applications
Copes with high operational backpressures

Applications

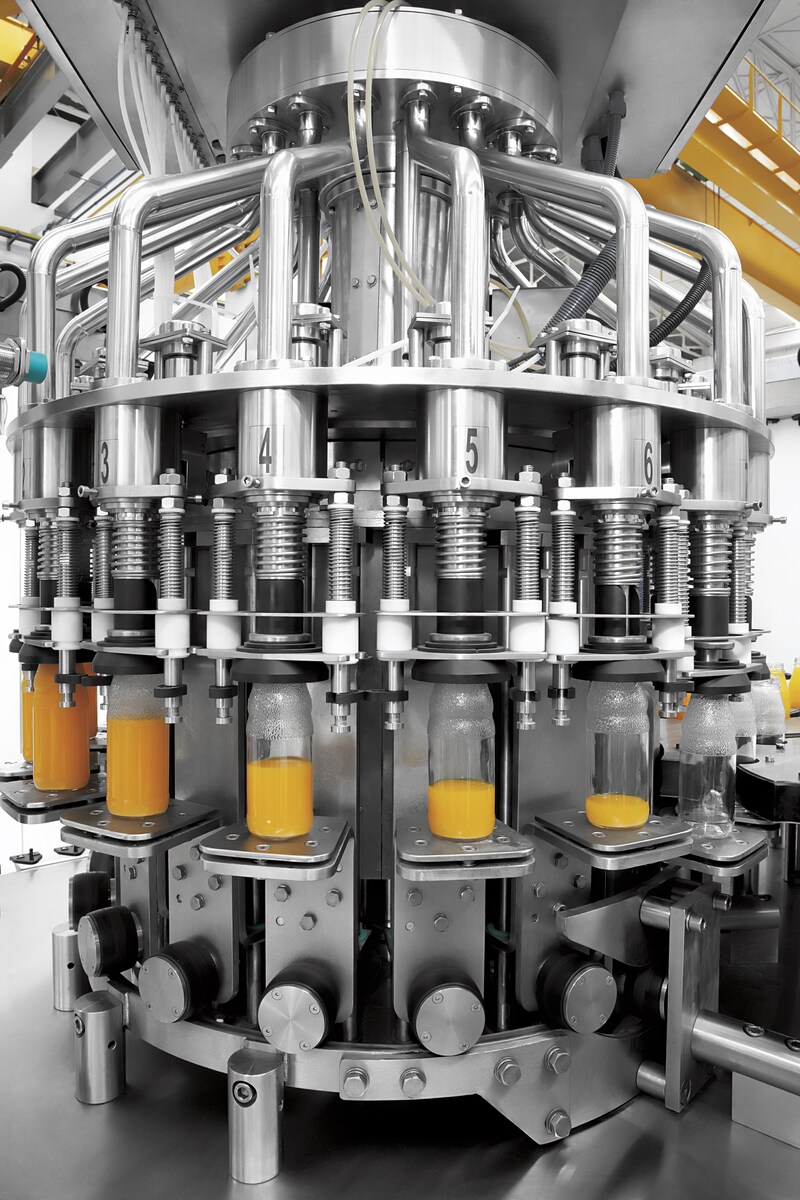

Food and beverage machines
Chemical process machines
Construction and mining
Renewable energies
Industrial equipment
Forestry machines
Farm machinery
Marine industry

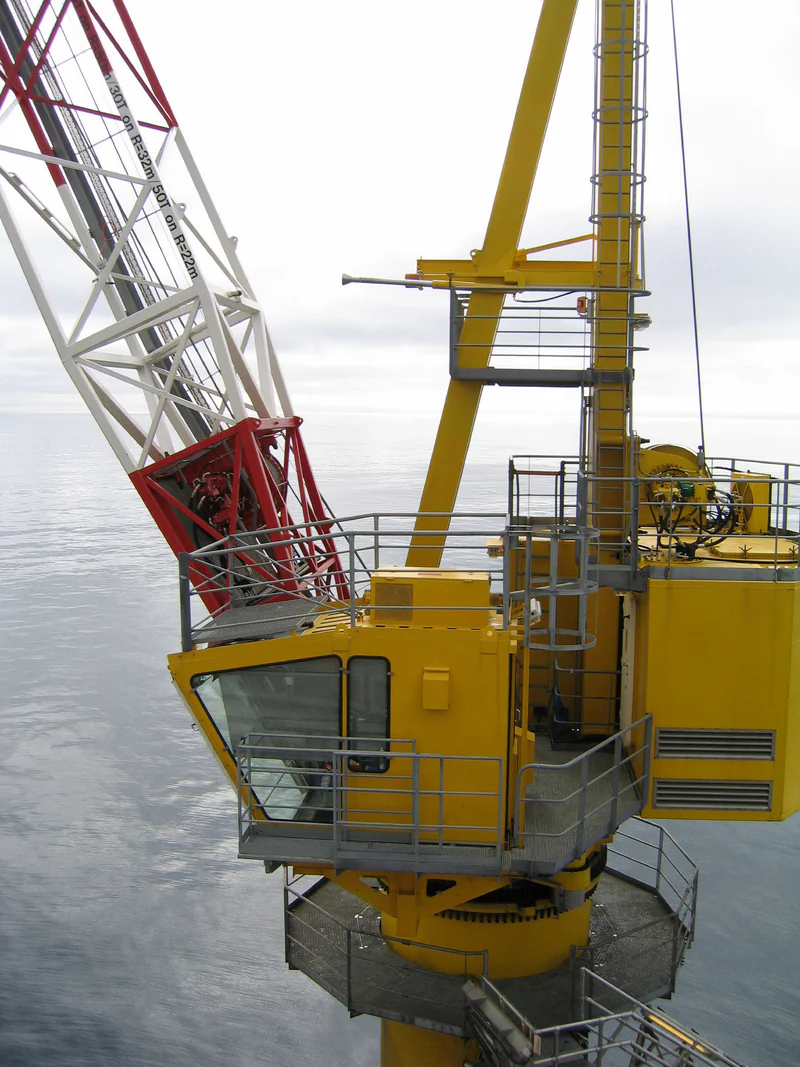

Cranes

Brochures and manuals

Assembly instructions (836.6 KB)

Category: Dosing devices for lubricants

Description

Description

Technical data
Function principle	block-type progressive metering device
Outlets	6 to 22
Lubricant
Grease	up to NLGI 2
Oil	at least 40 mm²/s
Metering quantity per cycle and outlet ¹⁾	0.2 cm³	0.01 in³
Operating temperature	–40 to +120°C	–40 to +248°F
Operating pressure	min. 20 bar	290 psi
	max. 350 bar	5075 psi
Materials	stainless steel 1.4305
Connection inlet	G 1/8 or 1/8 NPTF
Outlet connection ²⁾	M10×1
Dimensions	min. 60 x 60 x 30 mm	min. 2.36 x 2.36 x 1.18 in
	max. 180 x 60 x 30 mm	max. 7.08 x 2.36 x 1.18 in
Weight	0.8 to 2.4 kg	1.76 to 5.29 lbs
Mounting position	any

Order information

SSVC stainless steel designs
Order number	Outlets	Designation

619-78154-1	6	MET.DEV. SSVC 6 (VA 1.4305)
619-78155-1	8	MET.DEV. SSVC 8 (VA 1.4305)
619-78156-1	10	MET.DEV. SSVC10 (VA 1.4305)
619-78157-1	12	MET.DEV. SSVC12 (VA 1.4305)
619-78158-1	14	MET.DEV. SSVC14 (VA 1.4305)
619-78159-1	16	MET.DEV. SSVC16 (VA 1.4305)
619-78160-1	18	MET.DEV. SSVC18 (VA 1.4305)
619-78161-1	20	MET.DEV. SSVC20 (VA 1.4305)
619-78162-1	22	MET.DEV. SSVC22 (VA 1.4305)

Accessories

Fitting
Article	Type	Pipeline, ∅
226-10622-8	Insert fitting for inlet GEKM 6510-6-1/8-S01	6 mm
223-13614-9	Inlet fitting with cutting ring GE 6 LLR 1/8 K (1.4571)	6 mm

226-14091-4	Insert fitting for outlet RV-6-M10x1-S01	6 mm
504-31705-1	Outlet fitting with cutting ring (1.4571)	6 mm

Transverse arrangement of holes

skf.com-0945afa1c4f37523-Модель в разрезе SSVC

Elements with transverse hole pattern
Article	Description	Material

	Stainless steel threaded cap for cross connection complete with threaded coupling (404-23668-1) and cylindrical pin with clamping ring (5190-00000005)	stainless steel 1.4305
404-23668-1	stainless steel threaded coupling for cross connection of outlets	stainless steel 1.4305
5190-00000005	Stainless steel cylindrical stud for cross connection with clamping ring	stainless steel 1.4305
303-19346-2	PLUG, CLOS. 6-SOCK. M10x1.0x4.5	stainless steel 1.4571
5190-00000004	ADJUSTING SCREW M4x8 SI (10 PCS. IN SET) F.SSVC	carbon steel

Monitoring (upgrade options)

skf.com-09436f87a34f55cb-Варианты мониторинга для модернизации SSVC

Modernization Monitoring Options
Article	Description

Universal piston sensor
234-13163-9	Universal piston sensor. 10-36 VDC, 2- and 3-wire (PNP/NPN)
419-74455-1	SSVC piston sensor adapter
237-13442-4	M12 connector, five-pin, straight
237-13442-6	M12 connector, five-pin, 90° with 5 m cable (16.5 feet)
236-10022-7	M12 connector, five-pin, straight with 10 m cable (33 feet)

Universal piston sensor with cable and M12 connector
664-85282-6	Universal piston sensor with cable; 2 m (6 1/2 feet) M12 connector
664-85282-7	Universal piston sensor with cable; 3 m (10 foot) M12 connector
664-85282-8	Universal piston sensor with cable; 5 m (16.5 feet) M12 connector

Universal piston sensor with cable and bayonet plug
664-85242-2	Universal piston sensor with cable; 3 m (10 foot); bayonet plug
664-85242-5	Universal piston sensor with cable; 7 m (23 feet), bayonet plug

Monitoring (factory settings options)

skf.com-09484a800cb8e17f-Варианты заводской настройки мониторинга SSVC

Factory monitoring settings options
Image	Description

	Visual monitoring with indicator pins
	Electrical monitoring with indicator pin and limit switch; 0-230 V potential-free dry contact NO/NC
	Electrical monitoring using an indicator pin with a proximity switch adapter
	electrical monitoring using indicator pin with proximity switch (2 wires), AC 110-230 V
	electrical monitoring via indicator pin with proximity switch (3 wires), DC 10-36V, PNP
	electrical monitoring via indicator pin with contactless switch (EX version), ATEX Applications in Hazardous Areas
