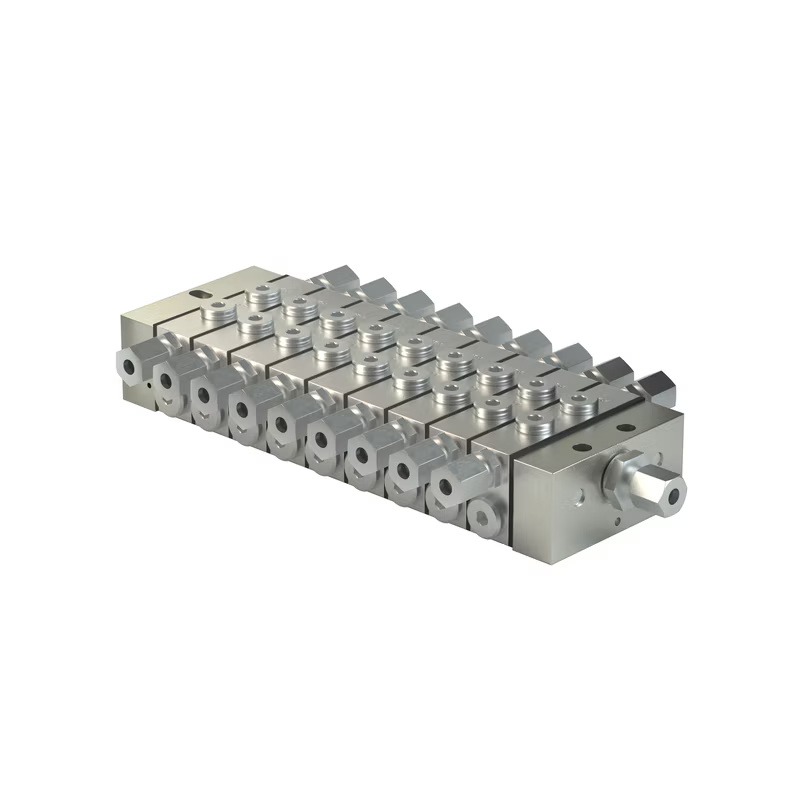

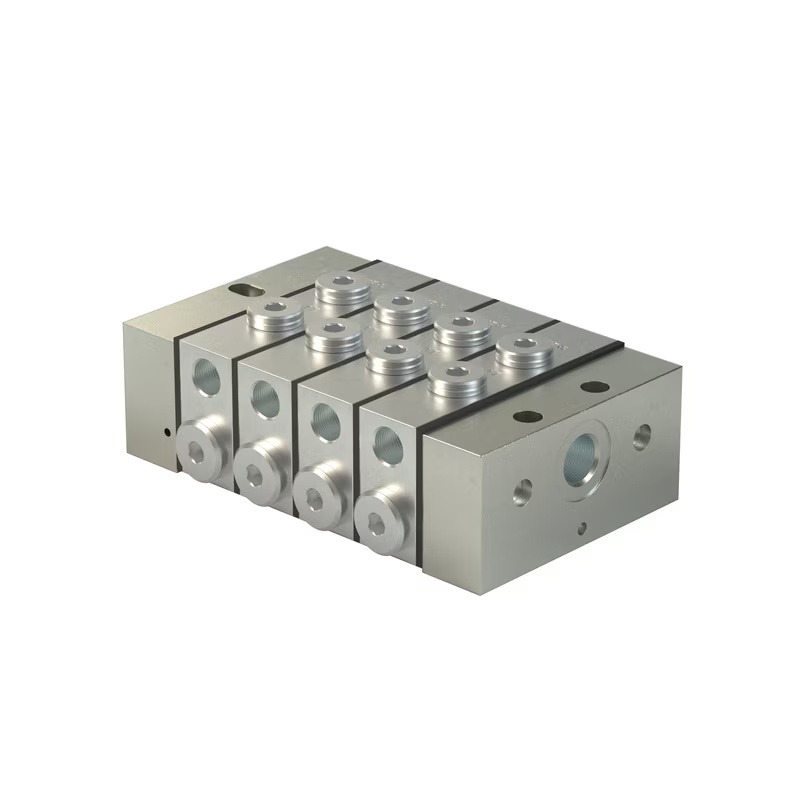

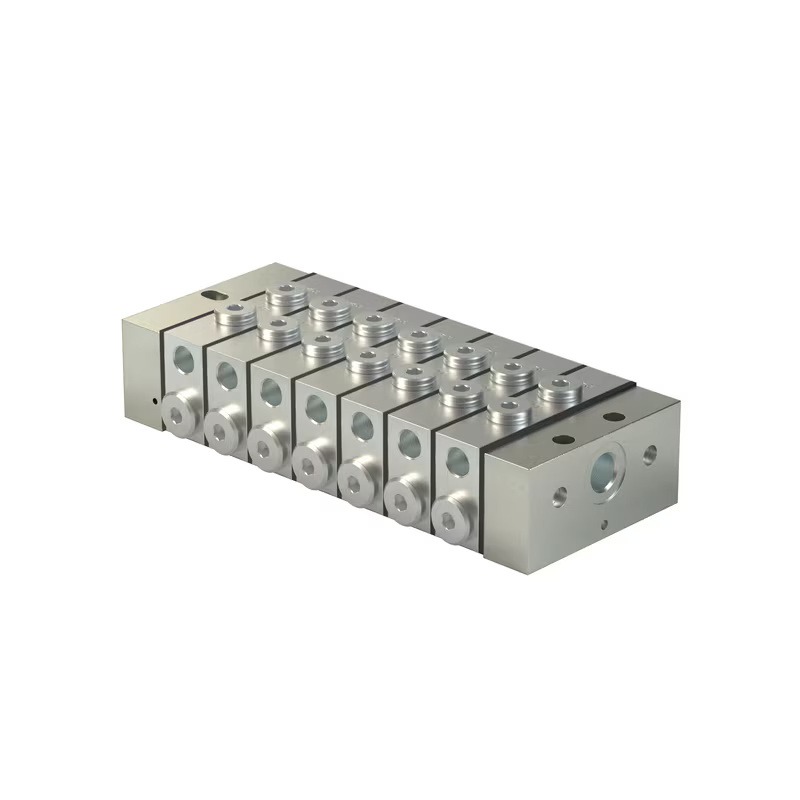

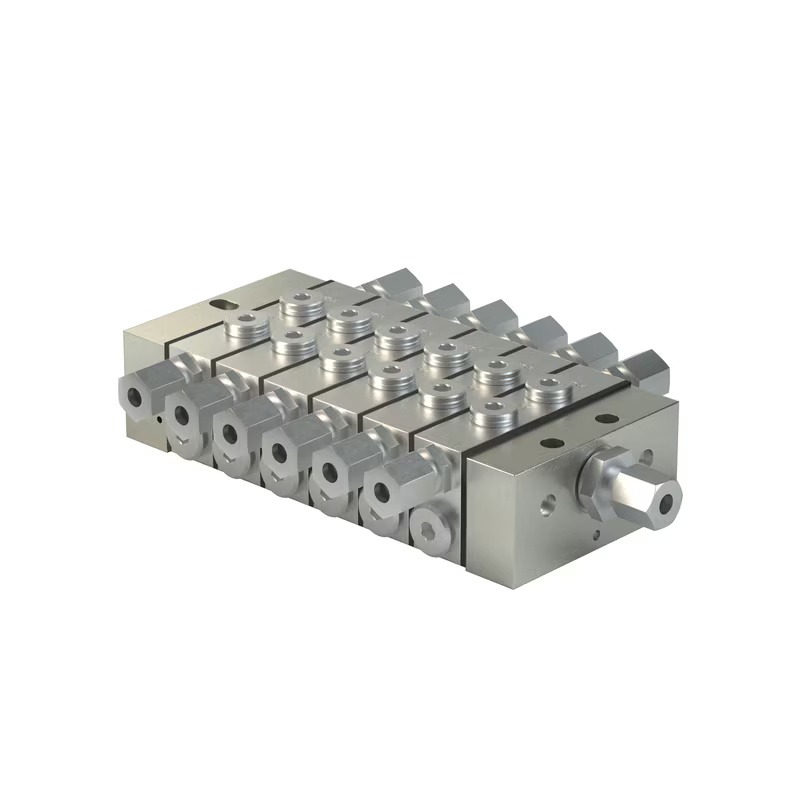

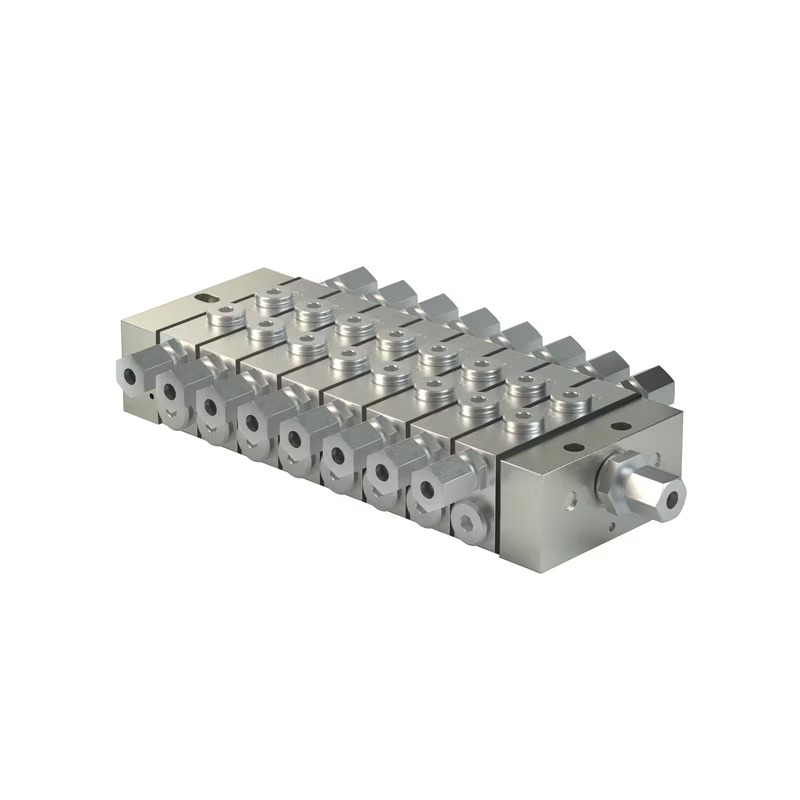

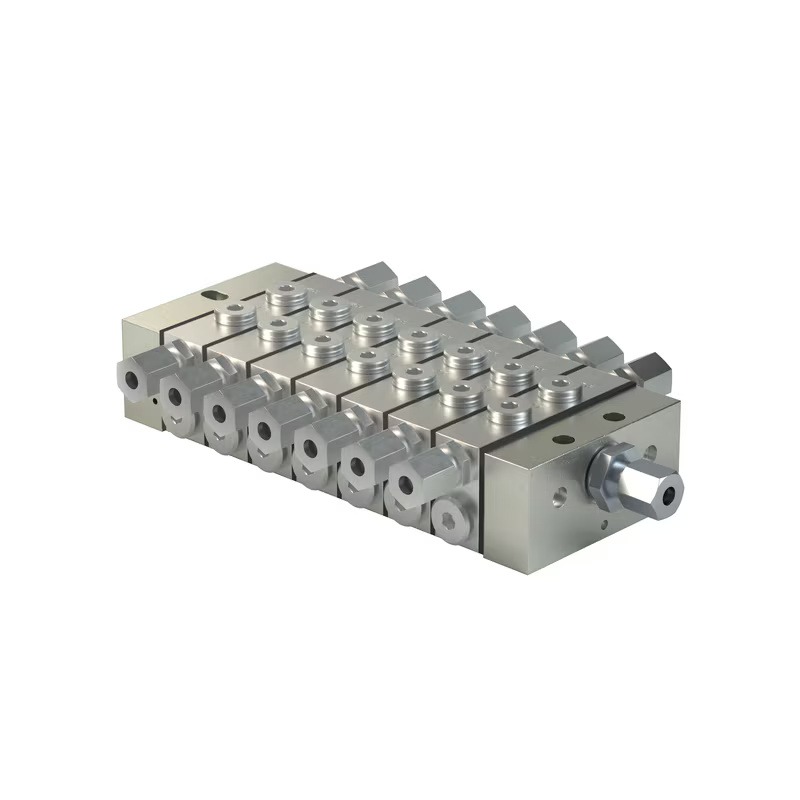

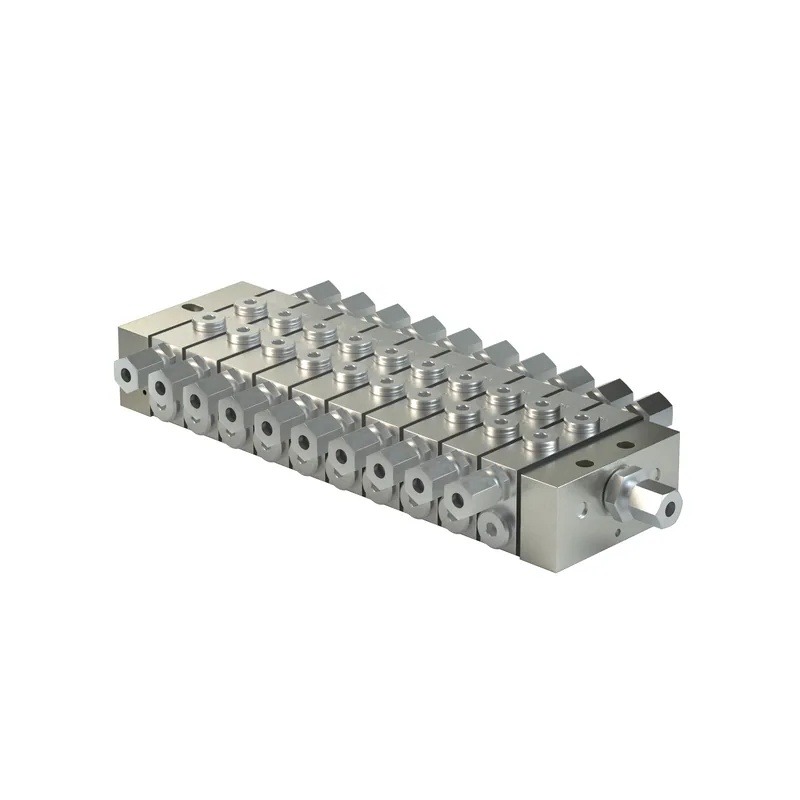

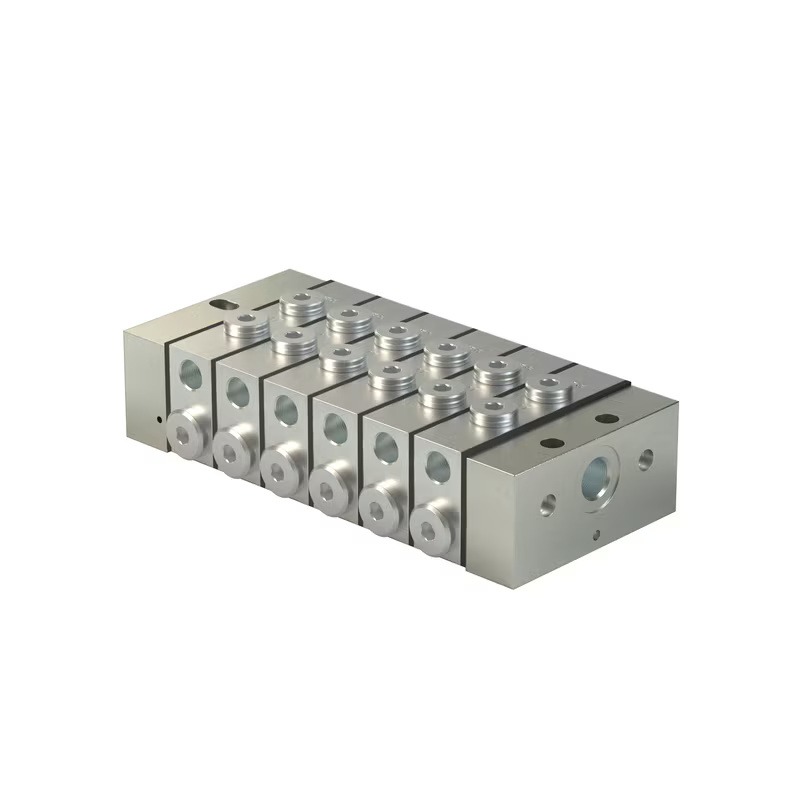

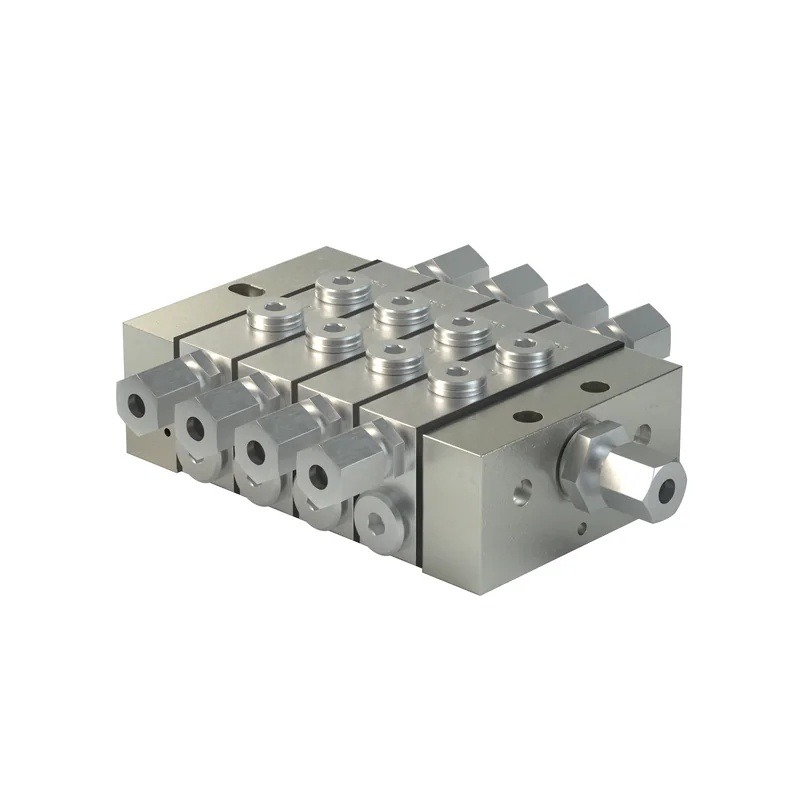

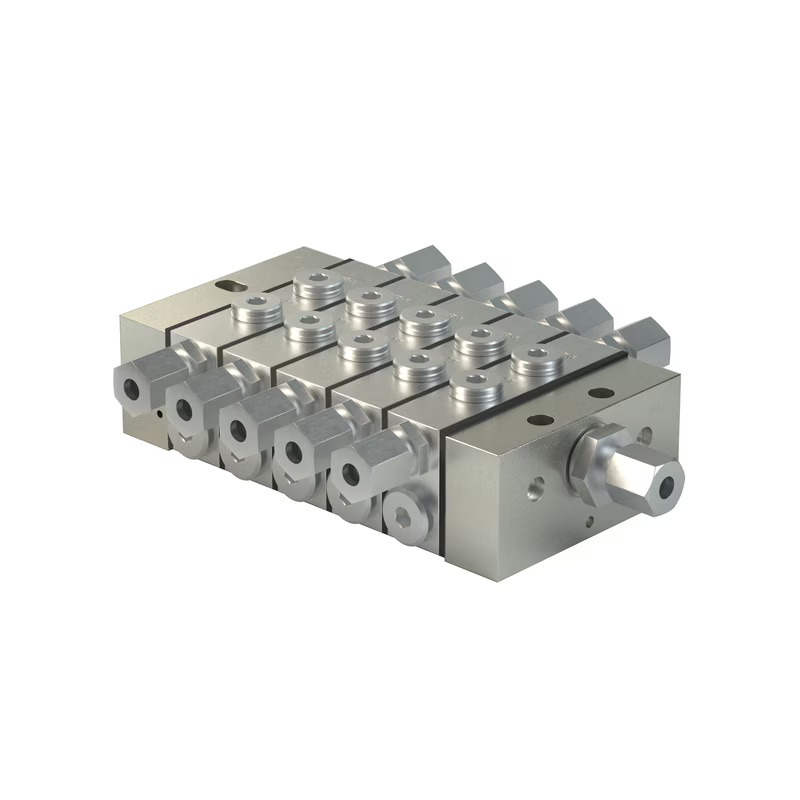

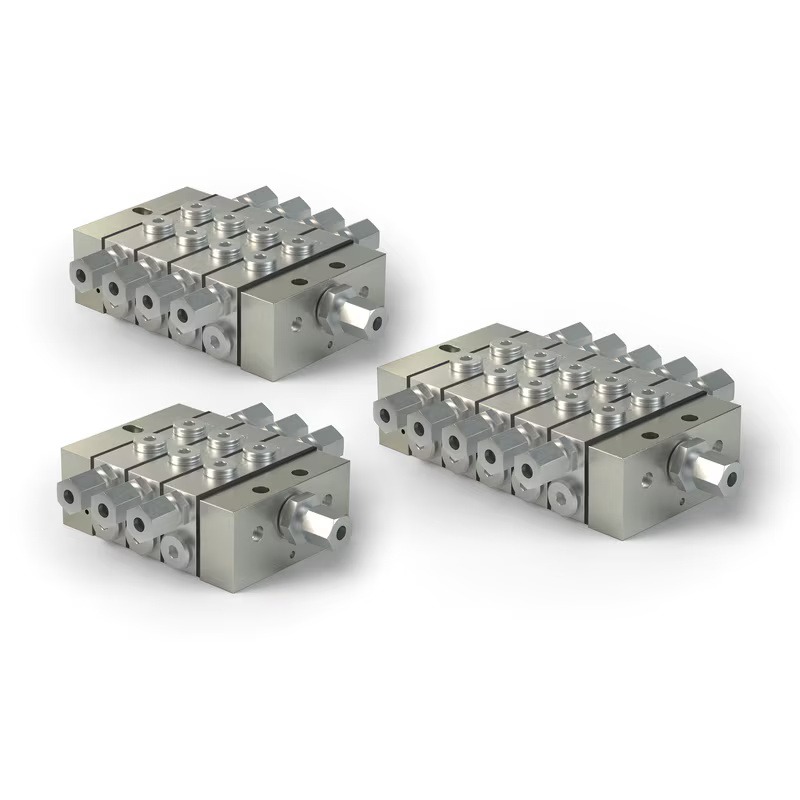

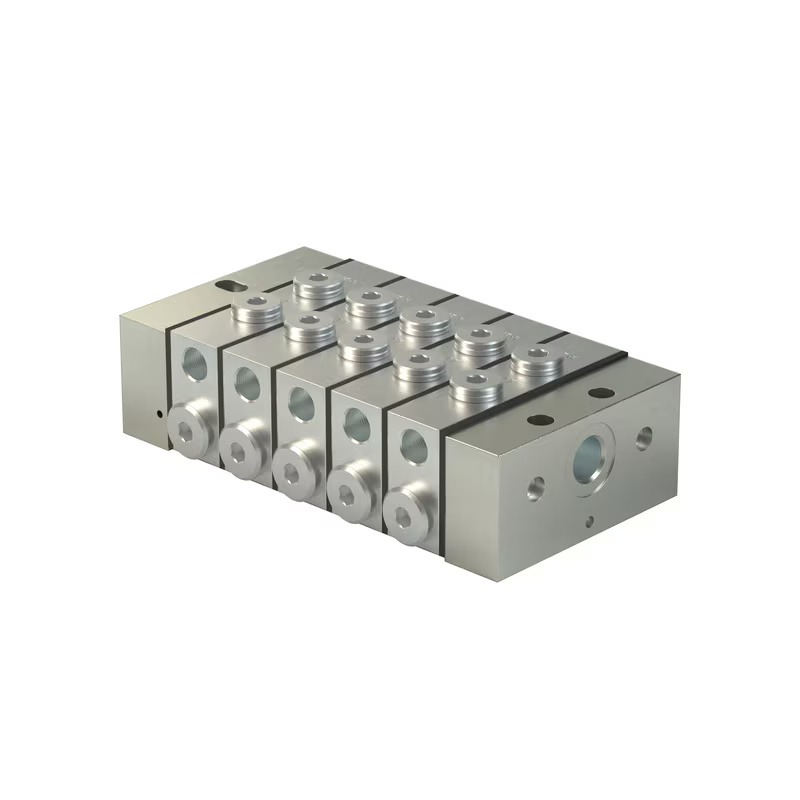

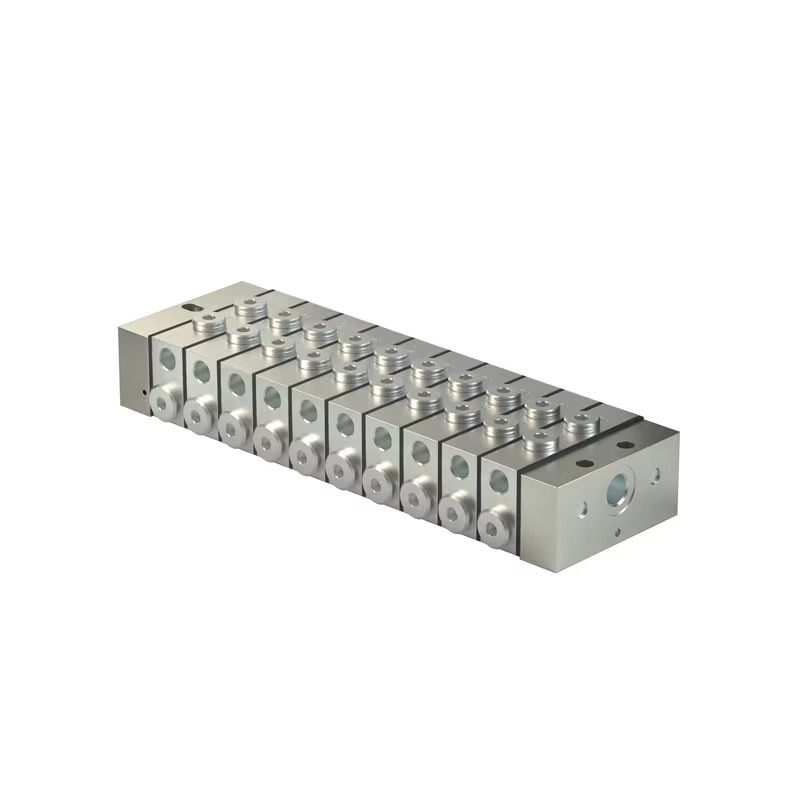

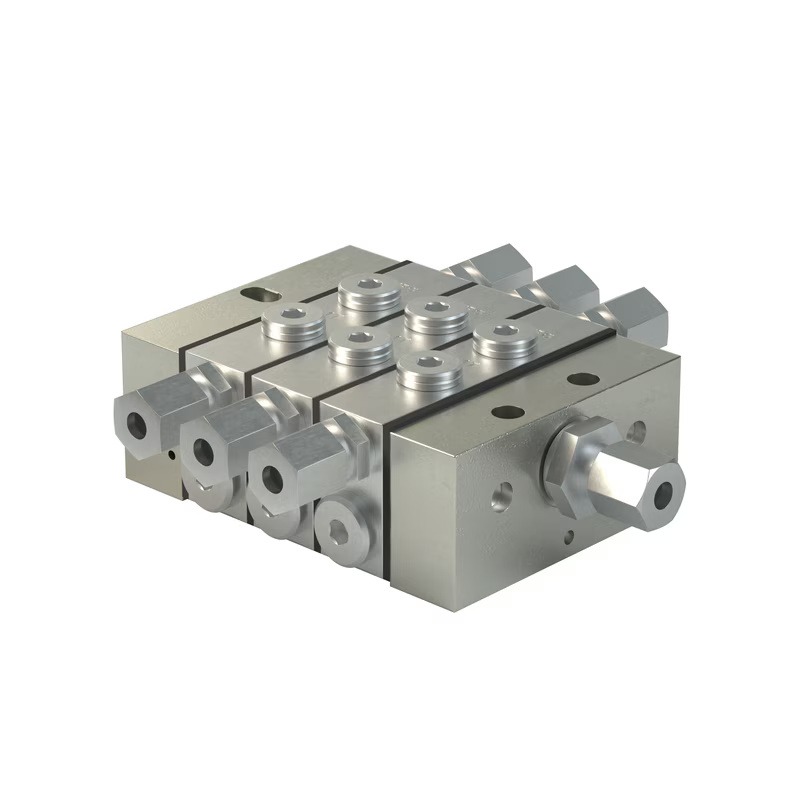

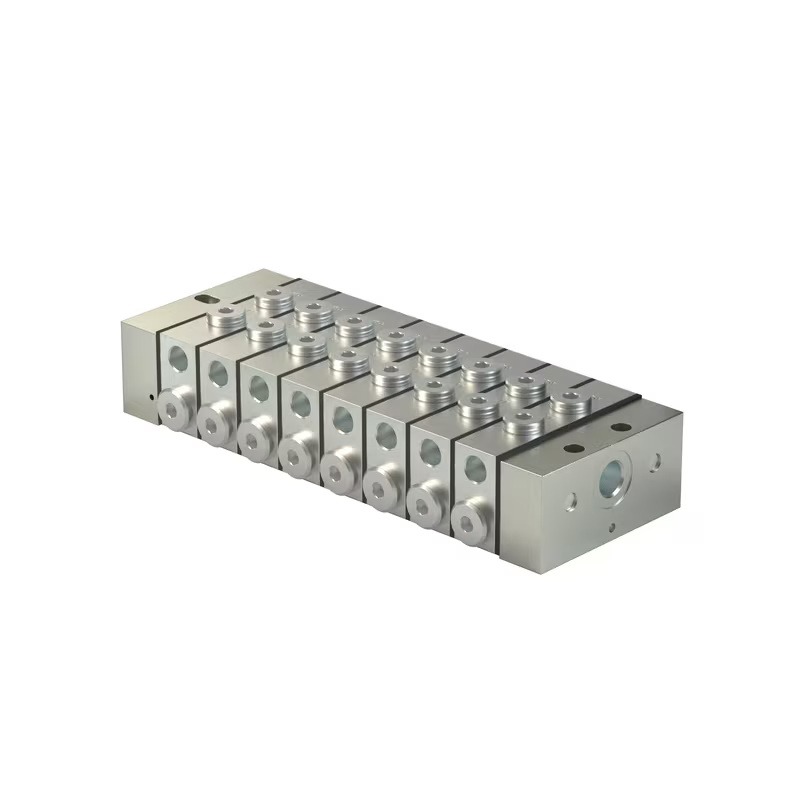

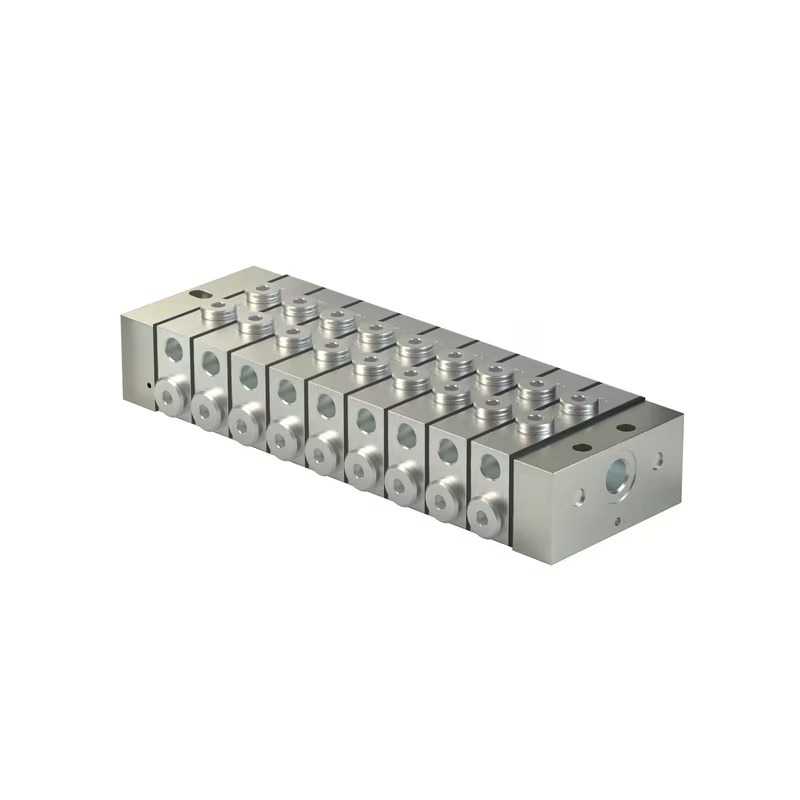

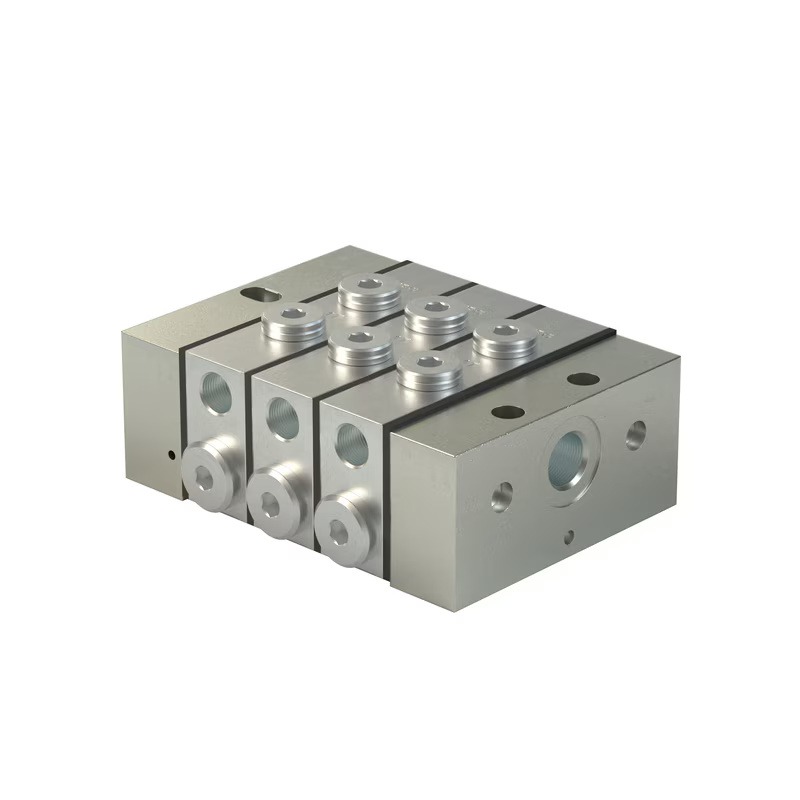

Description
| Operating principle | dosing devices | |
| Exits | 6–20 | |
| Lubricant | plastic grease up to and including NLGI class 2 environmentally friendly mineral and synthetic oils with a viscosity of at least 12 mm²/s |
|
| Output dosing volume | 0.1–1.2 cm³/stroke | 0.006–0.073 in³/stroke |
| Consumption | 1 l/min | 61 inches3/min |
| Operating temperature | from −25 to +90 °C | from −13 to +194 °F |
| Max. working pressure | ||
| oil | 200 bar | 2900 psi |
| plastic lubricant | 300 bar | 4350 psi |
| Material | ||
| Inlet, separator, end plate | galvanized steel/butadiene acrylonitrile rubber | |
| piston segments/plates | galvanized steel | |
| Input connection | ||
| VPM | M 14 × 1.5 | |
| VPG | G 1/4 | |
| Output connection | ||
| VPM | M 10 × 1 | |
| VPG | G 1/8 | |
| Protection class | IP 67 | |
| Dimensions | ||
| min. | 98 × 82.5 × 41 mm | 3.86 x 3.25 x 161 inches |
| Max. | 238 × 82.5 × 41 mm | 9.37 x 3.25 x 161 inches |
| Mounting position on equipment | ||
| without vibration | any | |
| under vibration conditions | the piston must be positioned at an angle of 90° to the direction of movement of the equipment | |
| VPG article number | VPM Part Number | Name | Pipeline, ∅, mm |
| — | 223-14129-4 | direct connection, L 1) | 6 |
| 406-413W | — | direct connection, S 1) | 6 |
| 223-12477-6 | — | direct connection, L 1) | 8 |
| — | 408–413 | direct connection, S 1) | 8 |
| 223-12272-9 | 223-14129-4 | direct connection, L 1) | 10 |
| 223-12477-9 | 412–423 | direct connection, L 1) | 12 |
| 471-006-161 | 471-006-351 | straight connection, type E fitting according to DIN EN ISO 9974-3 | 6 |
| 471-008-161 | 471-008-351 | straight connection, type E fitting according to DIN EN ISO 9974-3 | 8 |
| 471-010-161 | 471-010-351 | straight connection, type E fitting according to DIN EN ISO 9974-3 | 10 |
| 471-012-161 | — | straight connection, type E fitting according to DIN EN ISO 9974-3 | 12 |
| 406-054-VS | — | direct quick-release coupling | 6 |
| 223-14240-5 | — | corner joint, conical, L 1) | 8 |
| 223-13048-5 | 410–405 | corner joint, conical, L 1) | 10 |
| 445-516-061 | — | banjo fitting, S | 6 |
| 223-12284-7 | — | banjo fitting, L | 8 |
| 223-12369-9 | 445-535-101 | banjo fitting, L | 10 |
| VPG article number | VPM Part Number | Name | Pipeline, ∅, mm |
| — | 223-13069-1 | straight connection, conical, LL 1) | 4 |
| 223-12270-8 | — | direct LL connection 1) | 4 |
| — | 223-13021-1 | straight connection, conical, LL 1) | 6 |
| 223-13016-3 | 223-10263-8 | straight connection, conical, L 1) | 10 |
| 223-12270-9 | 441-008-511 | straight connection, conical LL 1) | 8 |
| 410-443W | — | straight connection, conical, L 1) | 10 |
| 471-004-191 | 471-004-311 | straight connection, type E fitting according to DIN EN ISO 9974-3 | 4 |
| 471-006-192 | 471-006-311 | straight connection, type E fitting according to DIN EN ISO 9974-3 | 6 |
| 404-040-VS | 404-006-VS | direct quick-release coupling | 4 |
| — | 451-004-518-VS | straight quick-release coupling, conical | 4 |
| 456-004-VS | 406-004-VS | direct quick-release coupling | 6 |
| 406-423W-VS | 451-006-518-VS | straight quick-release coupling, conical | 6 |
| VPG-RV | VPM-RV4 | CV output threaded coupling | 4 |
| VPG-RV6 | VPM-RV6 | quick-release coupling with CV | 6 |
| VPG-RV8 | VPM-RV8 | quick-release coupling with CV | 8 |
| — | VPM-RV10 | quick-release coupling with CV | 10 |
| 445-519-041 | — | banjo fitting LL 1) | 4 |
| 223-12479-5 | 445-531-061 | banjo fitting L 1) | 6 |
| — | 445-531-062 | banjo fitting LL 1) | 6 |
| 504-108-VS | 504-102-VS | quick-release coupling, banjo fitting« | 4 |
| — | 455-531-048-VS | quick-release coupling, banjo fitting, conical | 4 |
| 506-108-VS | 506-140-VS | quick-release coupling, banjo fitting« | 6 |
| — | 445-431-068-VS | quick-release coupling, banjo fitting, conical | 6 |
| Article | Name |
| 24-0159-6022 | Bipolar piston sensor, stainless steel |
| 24-0159-6024 | Universal piston sensor, stainless steel |
| The product can be configured using a configuration code. The order template lists one possible part number and an explanation. | |
| VPMXXXXXS-AXX-JXX-GXX-CXX |
|
| You can configure your product using the CAD configurator below. This will provide you with a specific order number. | |
