Description
Dust collector for collecting dust, designed for small and medium-sized woodworking workshops with a limited volume of material.

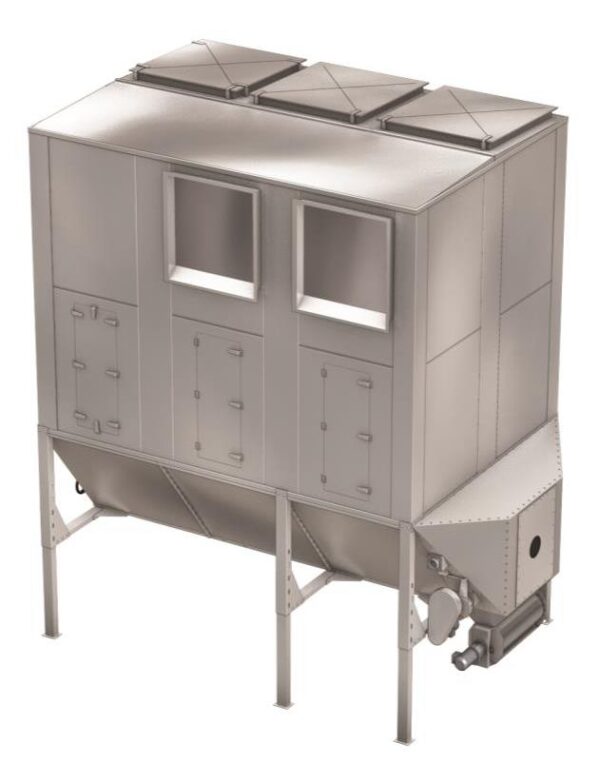

The NFPZ3000 dust collector is designed for small and medium-sized woodworking shops with limited material handling. It is a modular dust collector made of galvanized sheet steel with a telescopic support, suitable for outdoor use.
Two different widths are available: Type E 1200 mm (47 in.) and Type J 2400 mm (94 in.). Each filter module is equipped with a combined inspection and blast door. The filter is cleaned using regeneration fans. The filter is equipped with a unique, patented SUPERBAG. The removed material is separated in the filter hopper and collected in metal containers. The filter can be supplied for either continuous operation or with breaks for cleaning the filter bags every four hours.
• Regulates air volume from 1,500 to 3,000 m3/h (883-19,400 cu. ft.)
• ATEX certificate for dust St1 and St2 with Kst value up to 300 bar m/s
•Compact design
• Suitable for high air volume applications with limited material contamination
• Designed for continuous operation or operation with 15-minute cleaning breaks, approximately every four hours
• For ground mounting
• Vertical or vacuum design up to 5,000 Pa
• Explosion protection upwards or sideways
• Powerful online cleaning with efficient regeneration fans
• Patented anti-static polyester SUPERBAG
• Easy to install on site and expandable if needed
• Low energy consumption.
