Magna Track LS

Exhaust gas extraction system for low-traffic rescue stations

Description

The MagnaTrack LS is designed for stations with fewer runs. The free-hanging exhaust pipe is supported by a balancing unit with a trolley that moves along an aluminum guide. A mechanical release system allows for smooth and instantaneous hose release from the vehicle, relieving tension on the exhaust hose and ceiling brackets. The MagnaTrack LS is available in 6 and 9 m lengths and is suitable for vehicles with low exhaust pipes. The system uses no electrical components.

  • Capacity: 1 vehicle per system
  • Exhaust pipes: low level tail pipes
  • Normal exit speed up to 5 km/h — 3 mph
  • For reverse or drive
  • An optional automatic start/stop device that offers:
    - Practical control of fan start/stop
    - Safe air quality control (source ventilation starts automatically when the car engine starts)
    - Simple programming
    — approval of radio equipment in accordance with EU, FCC (USA) and IC (Canada) directives«
Characteristics
Technical Data
Certification CE
Diameter, hose (mm) 125

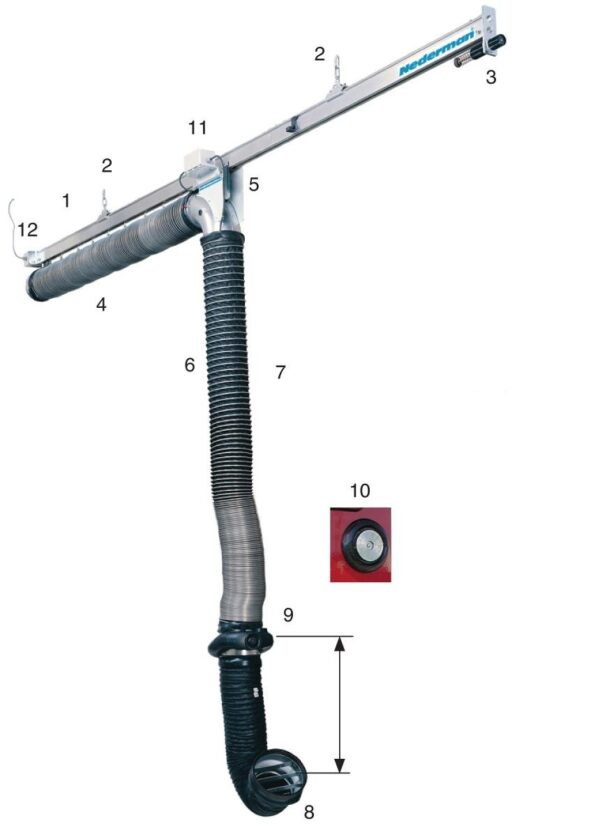

Explanation of technical data Including - Aluminum track (1), Mounting brackets for 2.4 m distance (2), Rubber stop (3), Sliding block (4), Balancer (5), Swivel (6), Hose connector, Exhaust hose (7), Low level nozzle, length - 0.6 m, diameter - 130 mm (8), Electro-magnet assembly (9), Anchor plate (10)
