Description

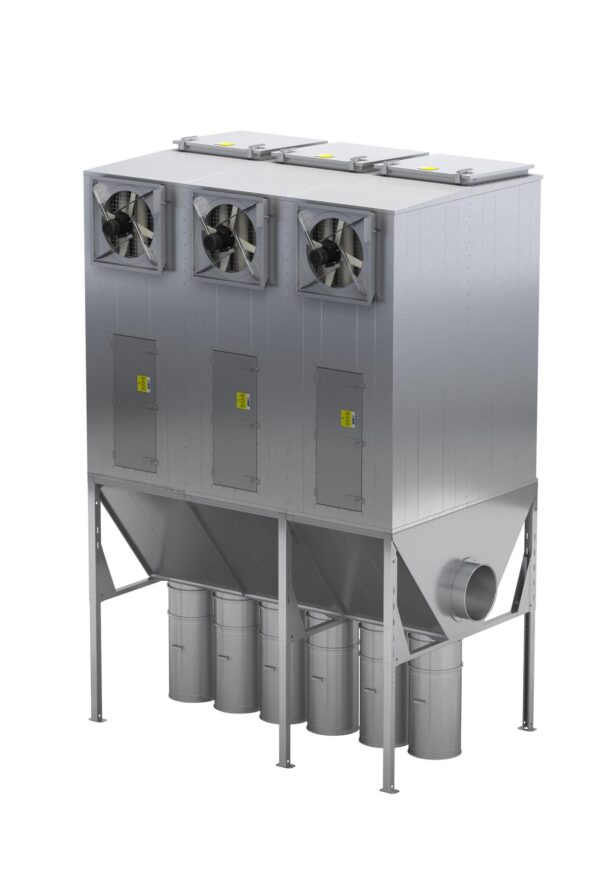

The LBR-C is an advanced, IIoT-ready reverse-blow bag filter suitable for continuous operation with high air volumes and high dust loads. The modular filter housing can be expanded to accommodate the required airflow, and additional modules can be installed directly on-site if additional capacity is required. The LBR filter is self-supporting with telescopic supports for height adjustment and is suitable for outdoor installation.
Air enters the filter through an inlet module or a hopper, where heavy/large dust particles are separated from the airflow. The remaining fine particles pass through multiple highly efficient SUPERBAG filter bags, leaving only clean air at the outlet. As dust accumulates within the filter bags, a regeneration fan located on each filter module blows air in the opposite direction, forcing the accumulated dust into a hopper, from where it is removed by a chain conveyor to a container or material transport system.
The LBR SmartFilter is equipped with an Insight control panel, providing complete control of the filter and auxiliary system equipment. Sensors located throughout the system monitor and collect important operating data for local controls and can be connected to the Nederman IIoT cloud platform for remote monitoring and analysis of system data.
- Configurable. The modular design, combined with a wide range of filters and auxiliary system equipment, allows you to configure the LBR SmartFilter to meet the specific needs of your plant. Various filter sizes, depths, and the ability to operate with positive pressure (positive) or vacuum (negative) airflow ensure the filter is optimized for your needs.
- Future-proof design. LBR SmartFilter controls are IIoT-ready as standard, and our proprietary Insight platform enhances their current operation and prepares them for the digital future. Filter modules can be added directly at the customer's site if additional system performance is required.
- Low operating costs. The filter bags' service life of up to 5-7 years, low operating pressure losses, and efficient filter cleaning reduce overall operating costs compared to alternative solutions using compressed air pulse blasting or mechanical shaking.
- Regulatory Compliance. The LBR SmartFilter complies with the latest ATEX and NFPA combustible dust standards and regulations, and our trained, experienced technicians can provide a complete, turnkey system that meets these requirements.
- Eco-Friendly. The LBR SmartFIlter offers an energy-efficient solution capable of extracting waste for reuse or recycling.
