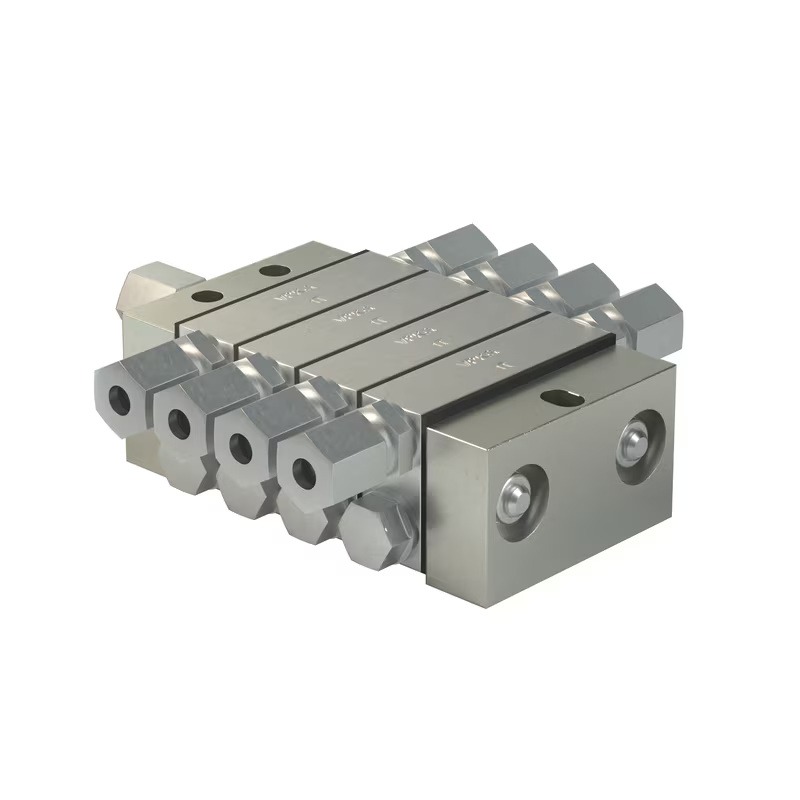

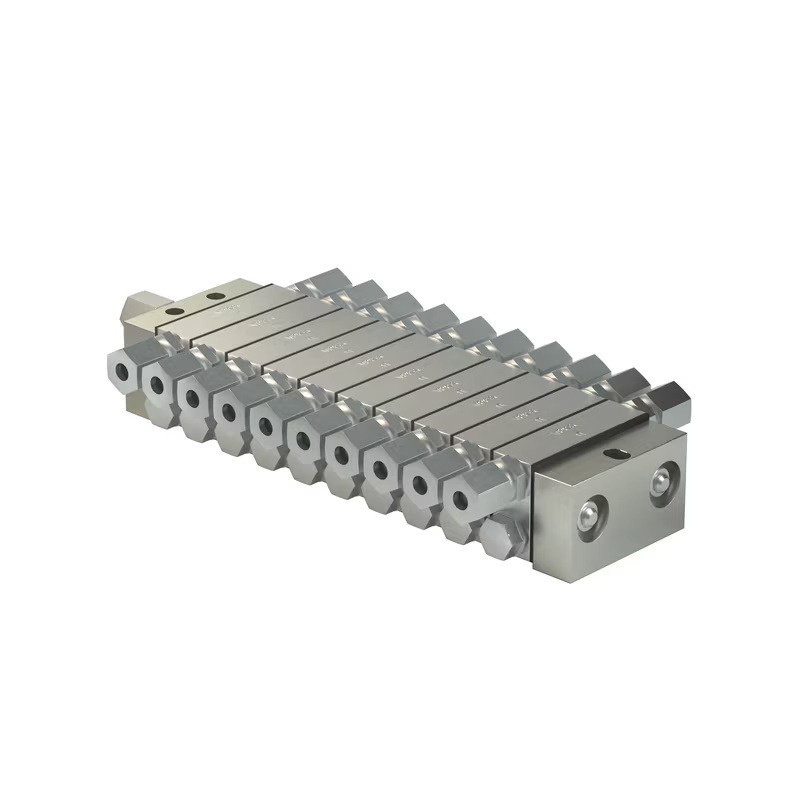

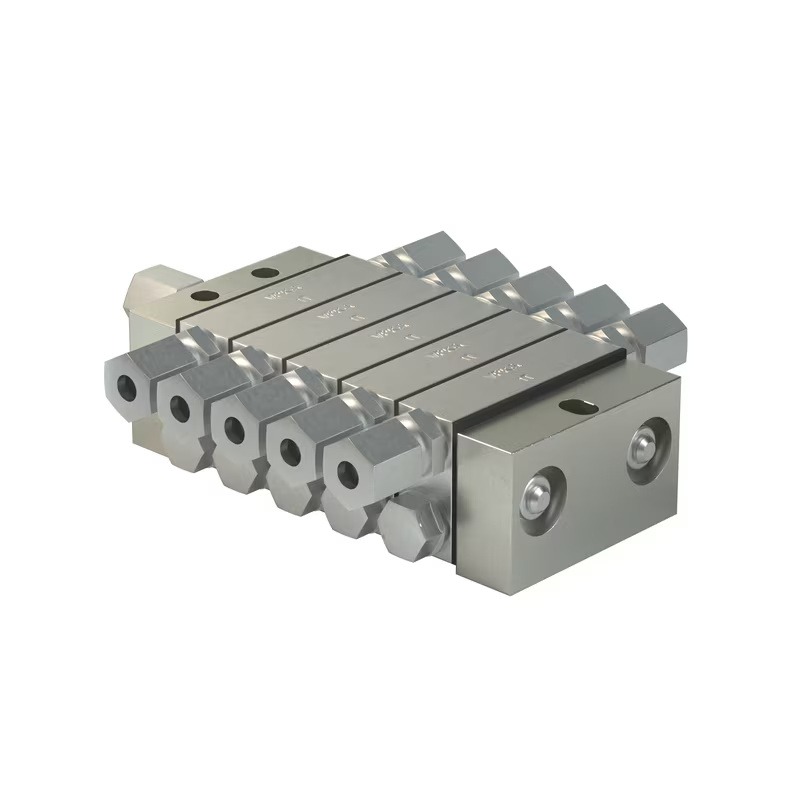

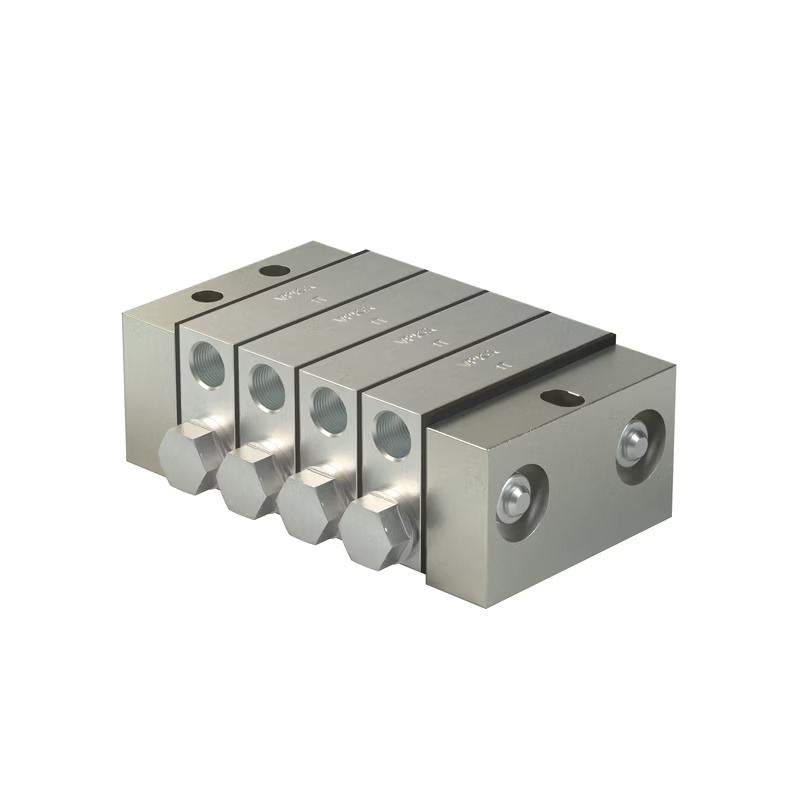

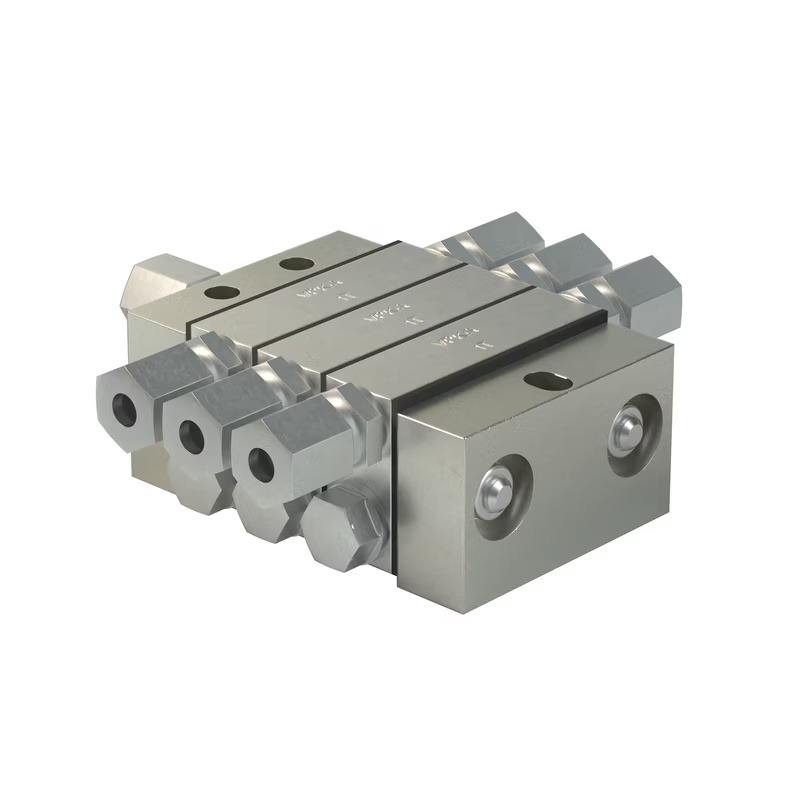

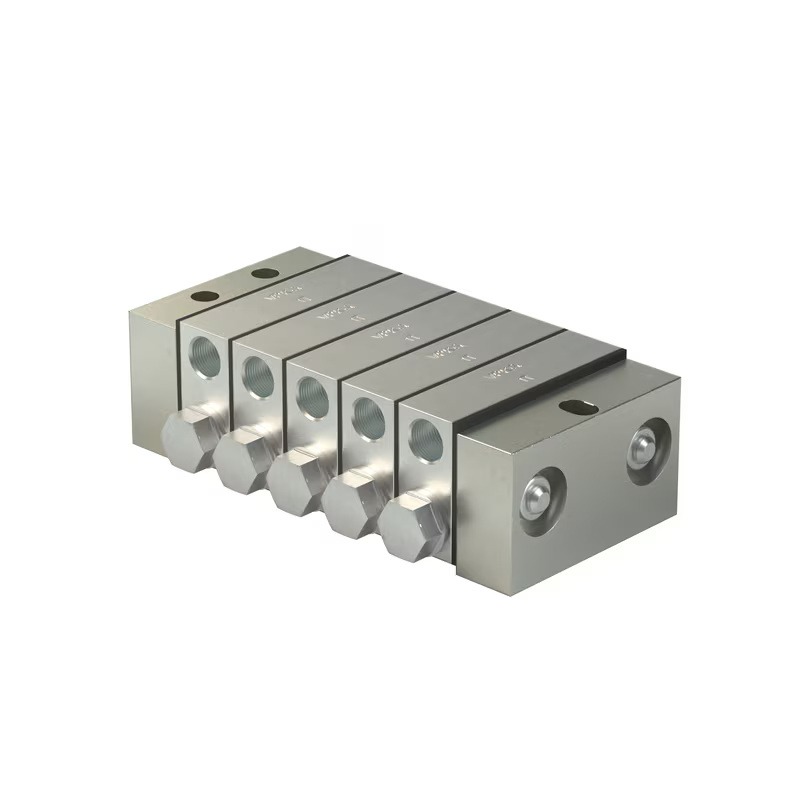

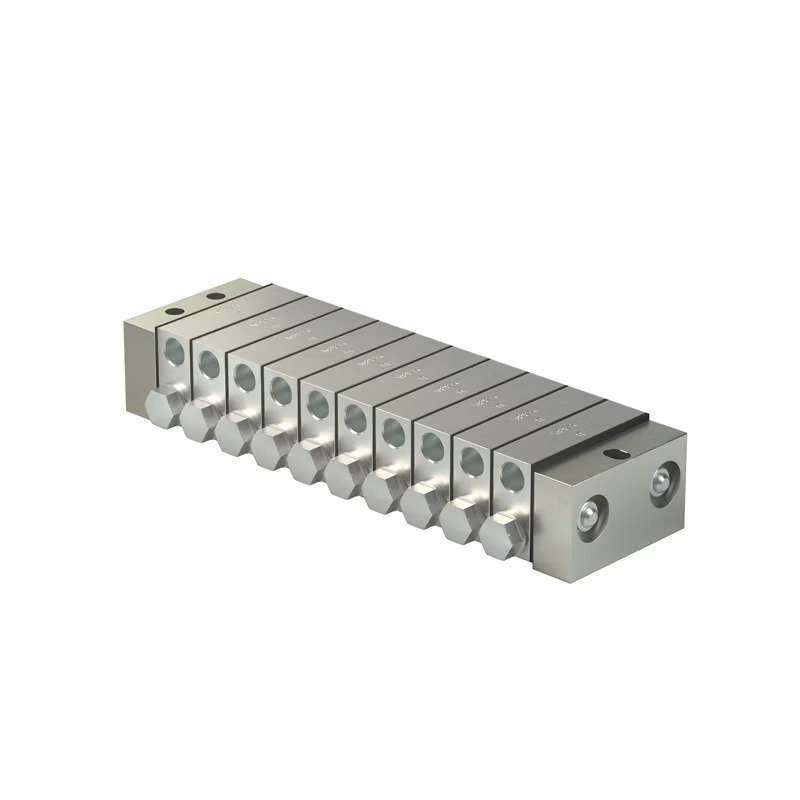

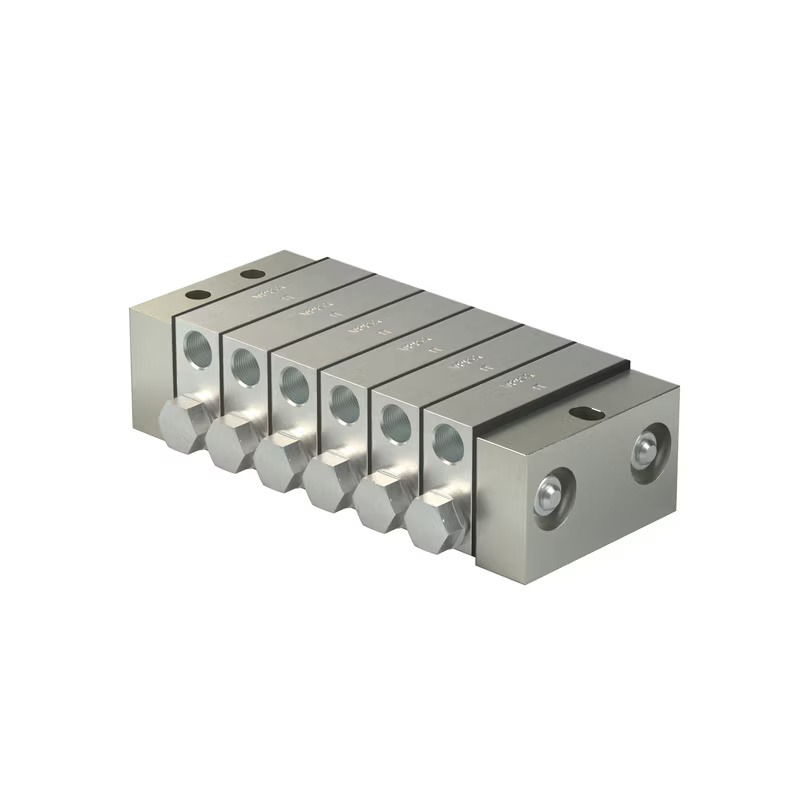

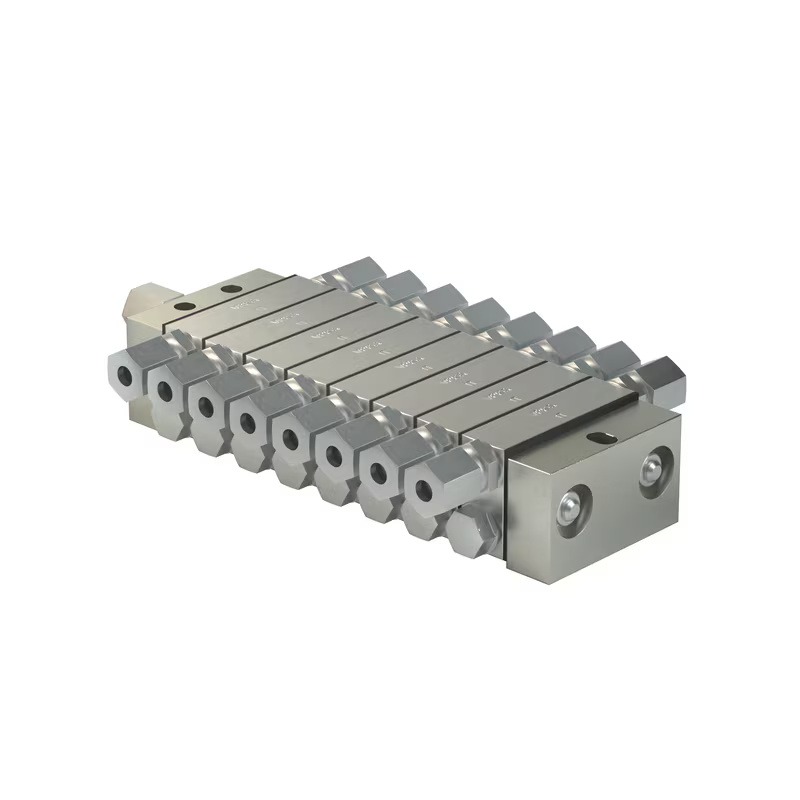

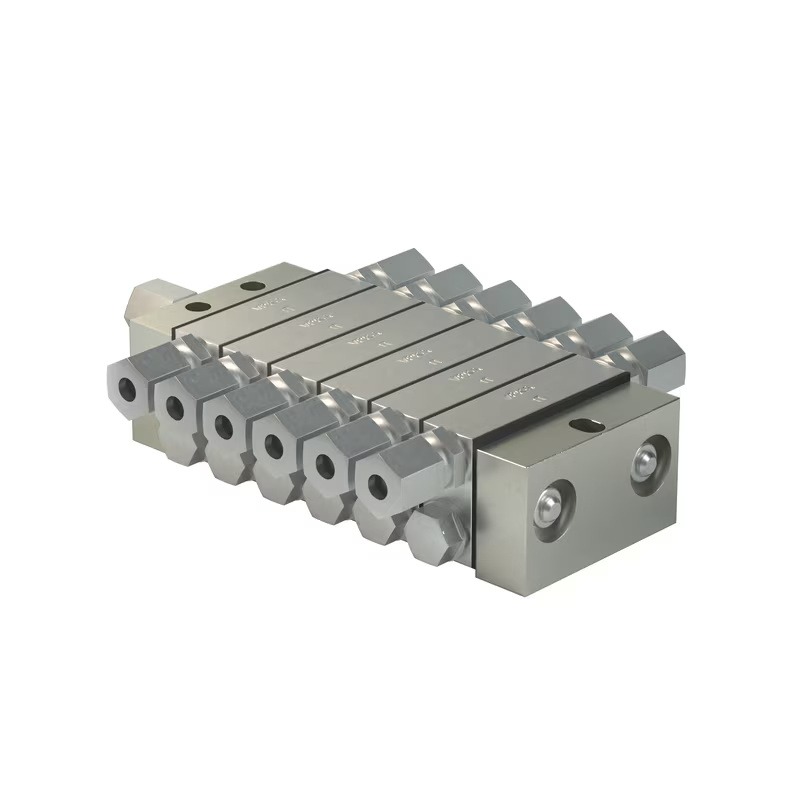

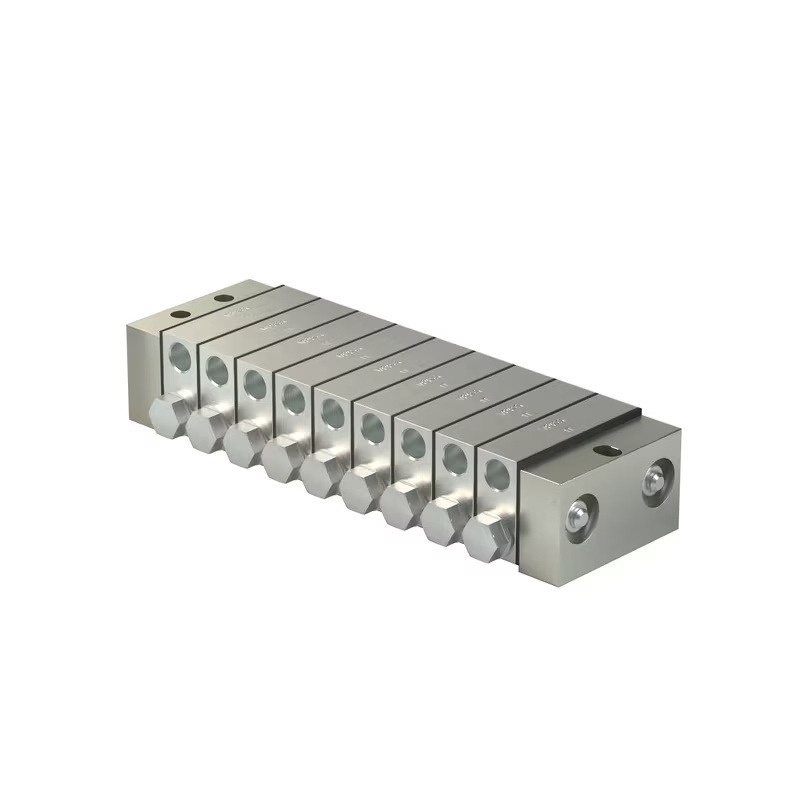

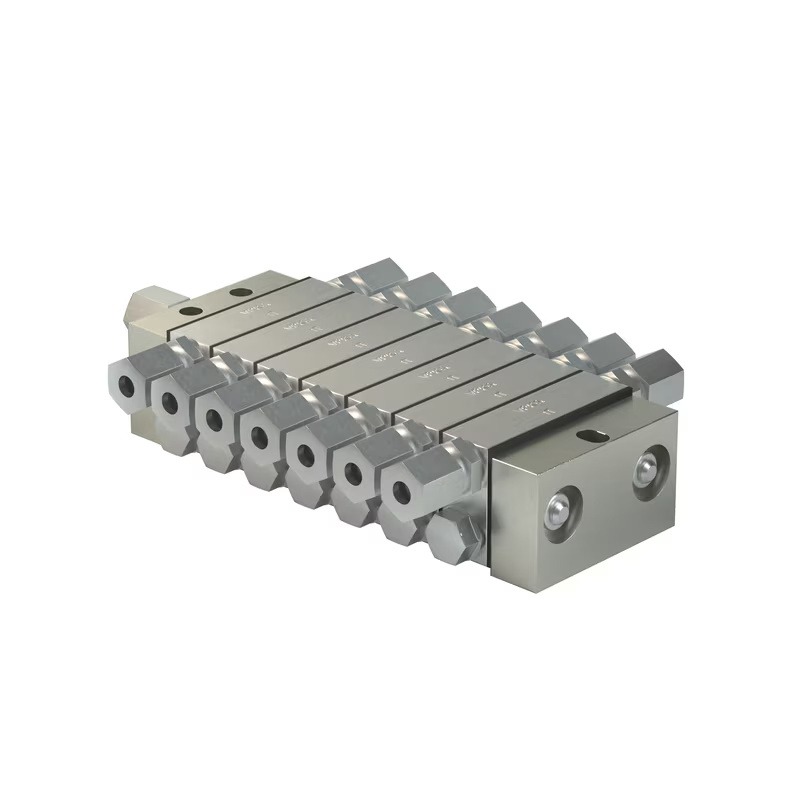

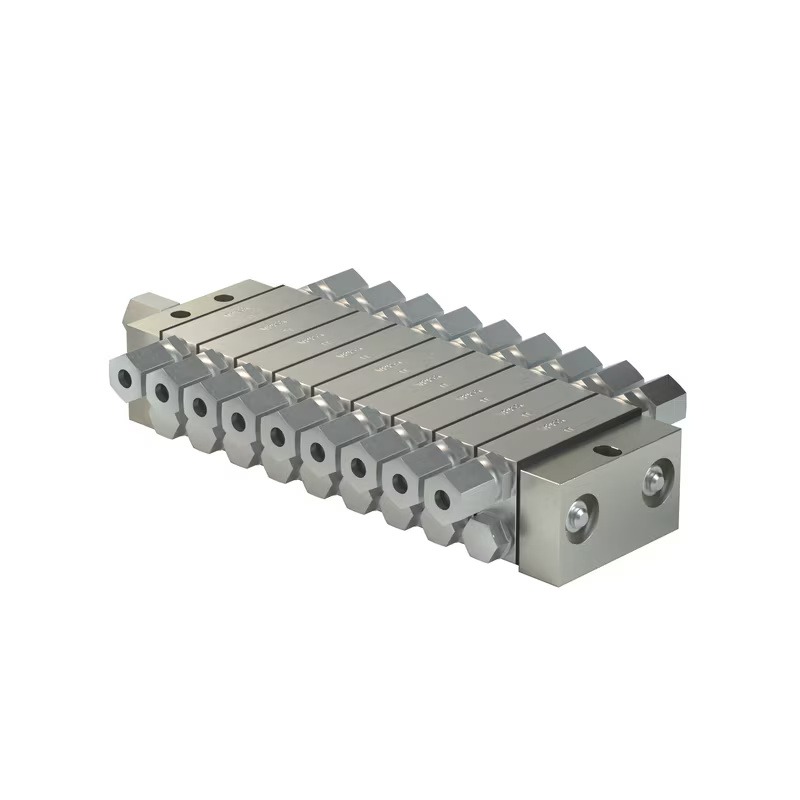

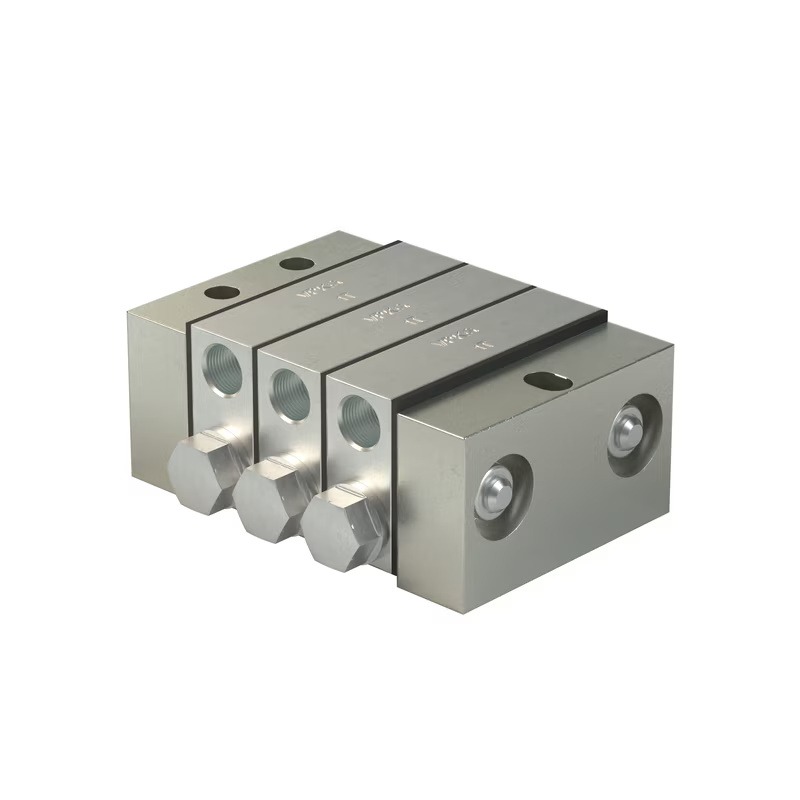

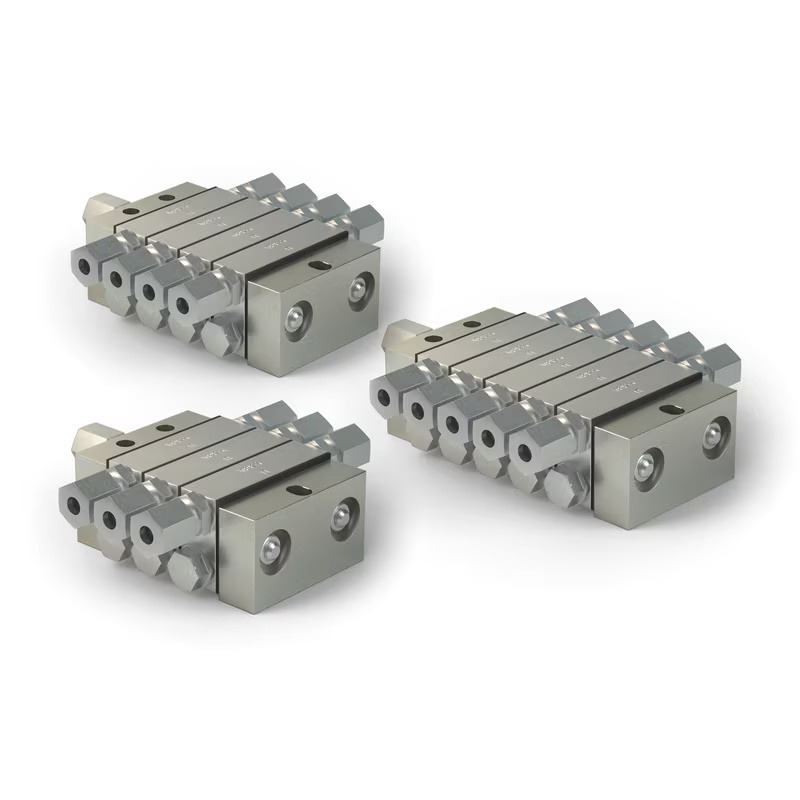

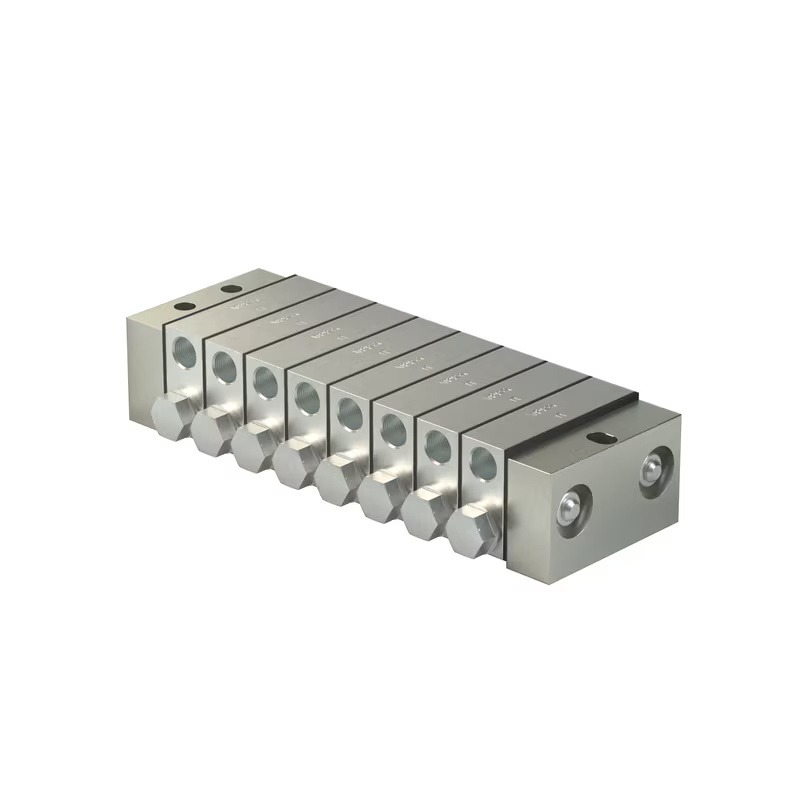

Description
| Operating principle | dosing devices | |
| Exits | 6–20 | |
| Lubricant | plastic grease up to and including NLGI class 3 oil with a viscosity of at least 12 mm²/s |
|
| Output dosing volume | 0.05–0.6 cm³/stroke | 0.003–0.037 in³/stroke |
| Operating temperature | from −25 to +90 °C | from −13 to +194 °F |
| Max. working pressure | ||
| oil | 200 bar | 2900 psi |
| plastic lubricant | 300 bar | 4350 psi |
| Material | ||
| Inlet, separator, end plate | galvanized steel/butadiene acrylonitrile rubber | |
| piston segments/plates | galvanized steel | |
| Input/output connection | ||
| VPKM | M 10 × 1 | |
| VPKG | G 1/8 | |
| Dimensions | ||
| min. | 81.9 x 65 x 34 mm | 3.22 x 2.56 x 1.34 inches |
| Max. | 195.3 × 65 × 34 mm | 7.69 x 2.56 x 1.34 inches |
| Mounting position on equipment | ||
| without vibration | any | |
| under vibration conditions | the piston must be positioned at an angle of 90° to the direction of movement of the equipment | |
| The product can be configured using a configuration code. The order template lists one possible part number and an explanation. | |
| VPKG3BXX-CXX-EXX-GXX |
|
| You can configure your product using the CAD configurator below. This will provide you with a specific order number. | |
Configure the product, download the CAD file
| Part number VPKG | Part number VPKM | Description | Pipeline, ∅ [mm] |
| 223-13016-3 | 223-10263-8 | direct connection, L 1) | 10 |
| — | 223-13021-1 | straight connection, conical, LL 1) | 6 |
| 223-12270-9 | 441-008-511 | straight connection, conical, LL 1) | 8 |
| 410-443W | — | straight connection, conical, L 1) | 10 |
| 471-06-192 | 471-006-311 | straight connection, type E fitting according to DIN EN ISO 9974-3 | 6 |
| 406-423W-VS | 406-004-VS | direct quick-release coupling | 6 |
| 406-423W | 451-006-518-VS | straight quick-release coupling, conical | 6 |
| 223-13048-1 | 223-12485-8 | corner joint, conical, L 1) | 6 |
| — | 223-13021-3 | corner connection, conical, LL 1) | 6 |
| 408-425W | 223-12362-4 | corner connection, conical, LL 1) | 8 |
| 506-511-VS | 506-510-VS | angular quick-release coupling, conical | 6 |
| 223-12479-5 | 445-531-061 | banjo fitting, L 1) | 6 |
| — | 445-531-062 | banjo fitting, LL 1) | 6 |
| 506-108-VS | 506-140-VS | quick-release coupling, banjo fitting« | 6 |
| — | 455-431-068-VS | quick-release coupling, banjo fitting, conical | 6 |
| Part number VPKG | Part number VPKM | Description | Pipeline, ∅ [mm] |
| — | 223-13069-1 | straight connection, conical, , LL 1) | 4 |
| 223-12270-8 | — | direct LL connection 1) | 4 |
| — | 223-13021-1 | straight connection, conical, LL 1) | 6 |
| 223-13016-3 | 223-10263-8 | straight connection, conical, L 1) | 6 |
| 223-12270-9 | 441-008-511 | straight connection, conical, LL 1) | 8 |
| 410-443W | — | straight connection, conical, L 1) | 10 |
| 471-004-191 | 471-004-311 | straight connection, type E fitting according to DIN EN ISO 9974-3 | 4 |
| 471-006-192 | 471-006-311 | straight connection, type E fitting according to DIN EN ISO 9974-3 | 6 |
| 404-040-VS | 404-006-VS | direct quick-release coupling | 4 |
| — | 451-004-518-VS | straight quick-release coupling, conical | 4 |
| 456-004-VS | 406-004-VS | direct quick-release coupling | 6 |
| 406-423W-VS | 451-006-518-VS | straight quick-release coupling, conical | 6 |
| VPKG-RV | VPKM-RV-S4 | output threaded coupling with OK | 6 |
| — | VPKM-RV-VS | quick-release connection with OK | 6 |
| 445-519-041 | — | banjo fitting LL 1) | 4 |
| 223-12479-5 | 445-531-061 | banjo fitting L 1) | 6 |
| — | 445-531-062 | banjo fitting LL 1) | 6 |
| 504-108-VS | 504-102-VS | quick-release coupling, banjo fitting« | 4 |
| — | 455-531-048-VS | quick-release coupling, banjo fitting, conical | 4 |
| 506-108-VS | 506-140-VS | quick-release coupling, banjo fitting« | 6 |
| — | 445-431-068-VS | quick-release coupling, banjo fitting, conical | 6 |
| Part number | Description |
| 24-0159-6022 | Bipolar piston sensor, stainless steel |
| 24-0159-6024 | Universal piston sensor, stainless steel |
