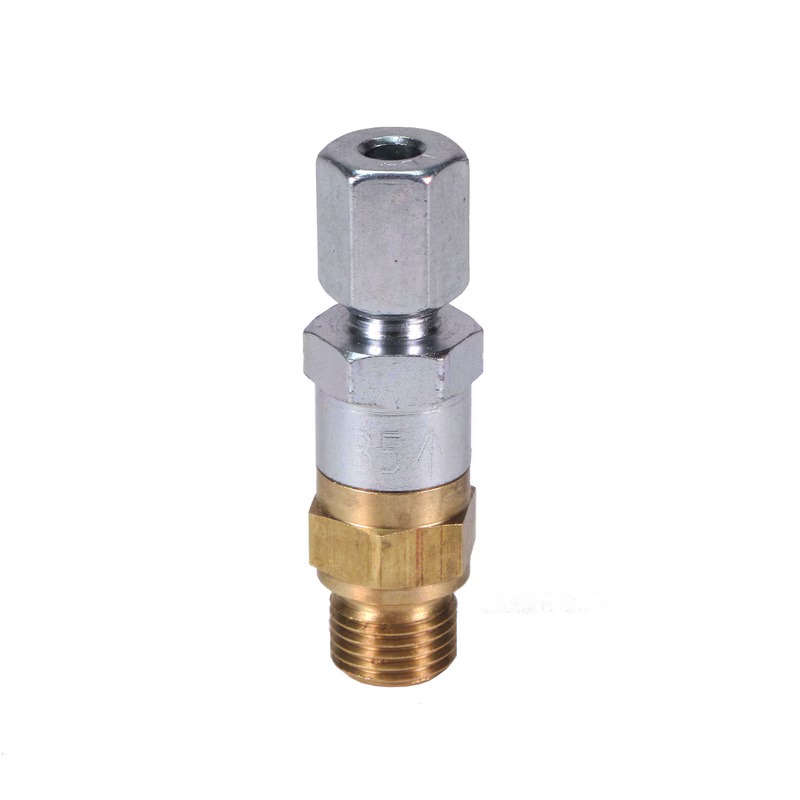

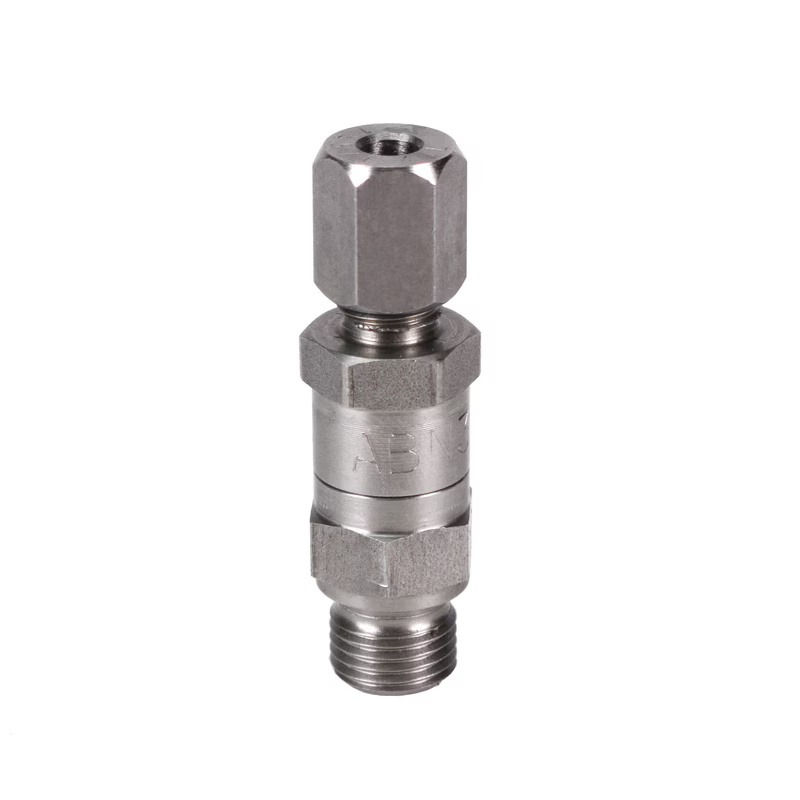

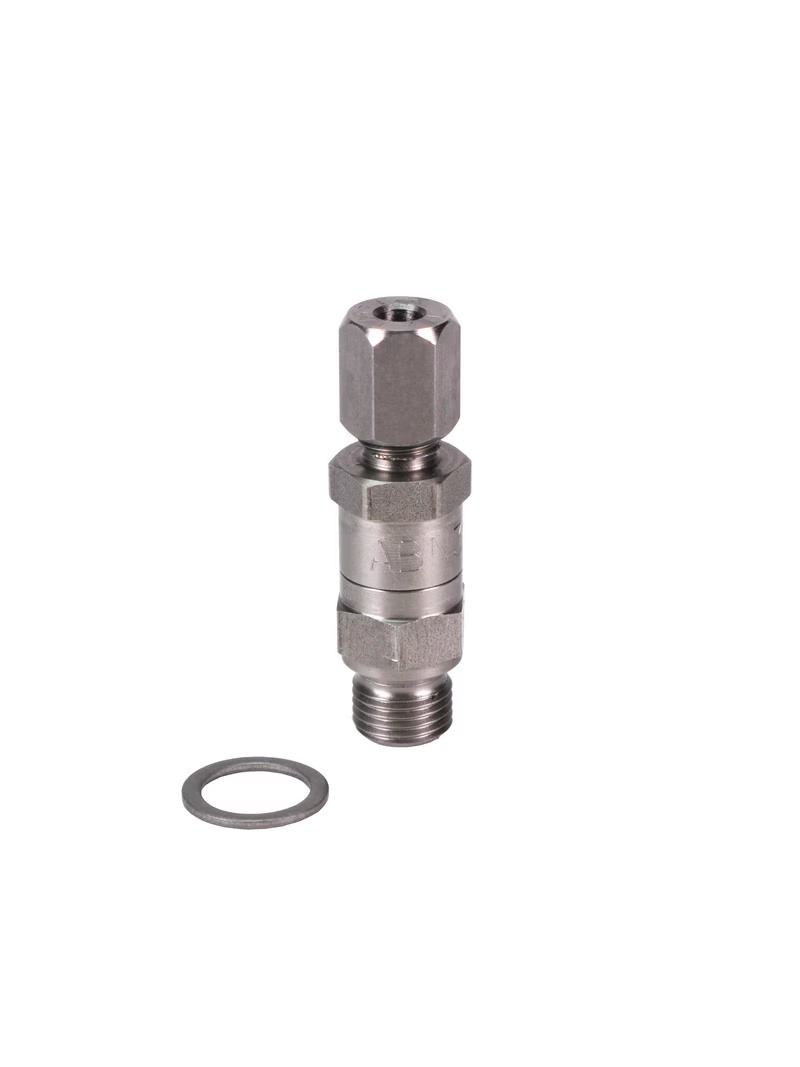

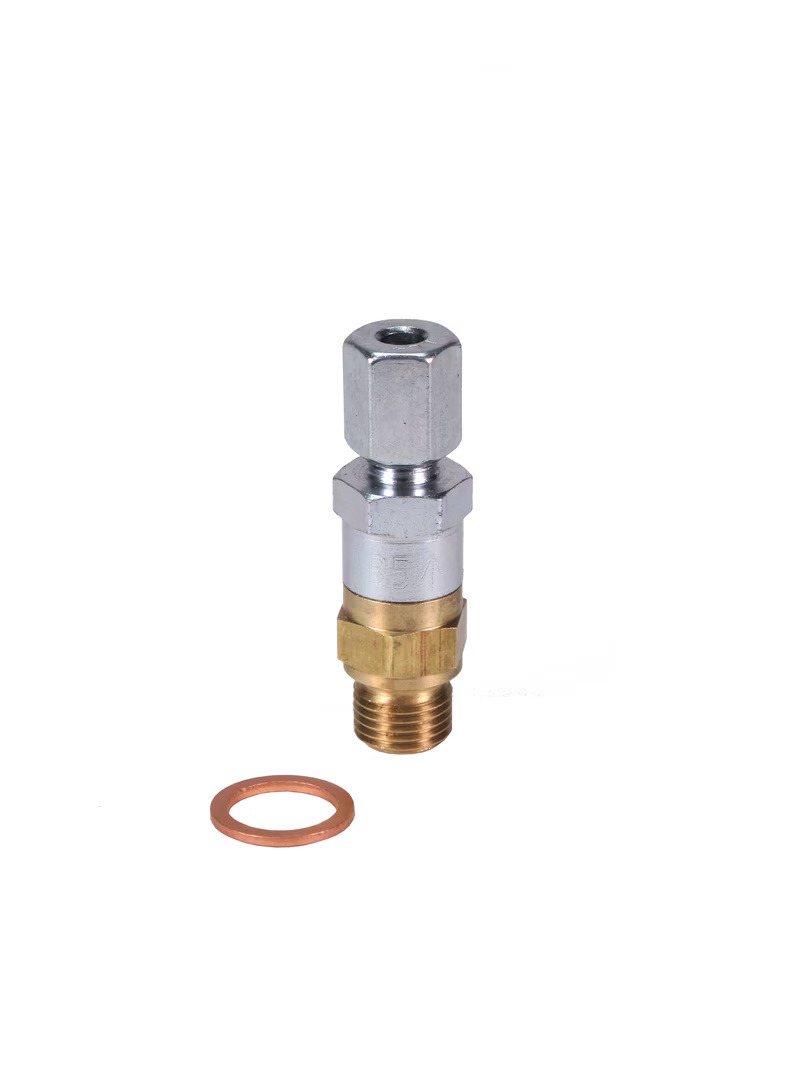

AB metering devices with pre-lubrication cycle

For single-line lubrication systems

The AB series of single-channel, pre-lubrication metering units are panel-mounted and designed for single-line oil and liquid lubrication systems. When used in conjunction with 1- to 6-channel metering units, these metering units offer flexible lubrication system design options. The metering unit housing is available in carbon steel and stainless steel with copper or stainless steel O-rings.

Technical characteristics and advantages

  • For use with mounting panels having one to six channels according to the number of lubrication points
  • Provides flexibility for systems with remote individual lubrication points or multi-channel metering devices (up to 6)
  • Virtually maintenance-free
  • Threaded metering devices for supply line connections can be selected using the order code
  • Mounting panel models with different thread sizes for connections and main pipeline materials are selected separately.

Application areas

  • Machine tools
  • Printing machines
  • Packaging machines
  • Textile industry
  • Agriculture
Brochures and manuals
 Product brochure (2.0 MB)
Category:

Description

Technical specifications
Operating principle dosing device with preliminary lubrication cycle 1)
Exits 1
Dosage volume 0.01–0.06 cm³ 0.0006–0.04 in³
Lubricant mineral and synthetic oil, 20-2000 mm²/s,
liquid lubricant NLGI 000, 00
Operating temperature from 0 to 80 °C from 32 to 176 °F
Working pressure min. 18 bar
max 50 bar		 min. 260 psi
max 725 psi
Relief pressure max 3 bar max 43.5 psi
Material steel (galvanized, Cr6-free), stainless steel,
copper, steel, flat washer (copper, stainless steel)
steel), FKM (FPM)
Connection of the main pipeline
various fittings for tubes ø 6–10 mm 0.236–0.393 inches
solderless pipe connections
for carving		 G 1/8; G 1/4;
M 10×1 or M 14×1.5 (DIN 3862)
Output connection
tube ø 4 mm ø 0.16 inches
straight fitting with compression nut
Dimensions min. 43 × 14 mm
max 82.5 × 14 mm		 1.692 x 0.551 inches
1.228 x 0.551 inches
Installation position any
  1. 1)
    Pre-lubrication metering device = Direct lubricant injector
    The pump pressure directly supplies lubricant to the bearing.
Ordering information
Part number Lubricant Dosage volume
24-2800-5001 Oil/liquid plastic lubricant, galvanized steel, copper ring 0.01 mm3, 0.0006 inches3
24-2800-5002 Oil/liquid plastic lubricant, galvanized steel, copper ring 0.02 cm3, 0.0012 inches3
24-2800-5003 Oil/liquid plastic lubricant, galvanized steel, copper ring 0.03 cm3, 0.0018 inches3
24-2800-5005 Oil/liquid plastic lubricant, galvanized steel, copper ring 0.05 cm3, 0.0030 inches3
24-2800-5010 Oil/liquid plastic lubricant, galvanized steel, copper ring 0.10 cm3, 0.0061 inches3
24-2800-5020 Oil/liquid plastic lubricant, galvanized steel, copper ring 0.20 cm3, 0.0122 inches3
24-2800-5040 Oil/liquid plastic lubricant, galvanized steel, copper ring 0.40 cm3, 0.0244 inches3
24-2800-5060 Oil/liquid plastic lubricant, galvanized steel, copper ring 0.60 cm3, 0.0366 inches3
24-2800-9001 Oil/liquid grease, stainless steel, stainless steel ring 0.01 mm3, 0.0006 inches3
24-2800-9002 Oil/liquid grease, stainless steel, stainless steel ring 0.02 cm3, 0.0012 inches3
24-2800-9003 Oil/liquid grease, stainless steel, stainless steel ring 0.03 cm3, 0.0018 inches3
24-2800-9005 Oil/liquid grease, stainless steel, stainless steel ring 0.05 cm3, 0.0030 inches3
24-2800-9010 Oil/liquid grease, stainless steel, stainless steel ring 0.10 cm3, 0.0061 inches3
24-2800-9020 Oil/liquid grease, stainless steel, stainless steel ring 0.20 cm3, 0.0122 inches3
24-2800-9040 Oil/liquid grease, stainless steel, stainless steel ring 0.40 cm3, 0.0244 inches3
24-2800-9060 Oil/liquid grease, stainless steel, stainless steel ring 0.60 cm3, 0.0366 inches3

Configure the product, download the CAD file

Accessories

Mounting panels
Manifolds for single-line metering devices_12_1 AB dosing units use VL mounting plates with 1–6 outlets (for threaded fittings) with M10x1 mm threads for a copper flat sealing washer. Standard profile mounting plates are available in aluminum or stainless steel, while narrow profile mounting plates are only available in aluminum.
Ordering Information - Mounting Panels
Part number Description
VL-01-BA-G1 Mounting plate with 1 outlet (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminium, G 1/8 according to DIN 3852-2, form X, small
VL-01-BA-G2 Mounting plate with 1 outlet (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminium, G 1/4 according to DIN 3852-2, form X, small
VL-01-BA-M3 Mounting plate with 1 outlet (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminum, M10x1 with recess for solderless pipe connection according to DIN 3862
VL-01-BA-M4 Mounting plate with 1 outlet (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-01-BE-G1 Mounting plate with 1 outlet (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-01-BE-G2 Mounting plate with 1 outlet (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-01-BE-M3 Mounting plate with 1 outlet (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), M10x1 with recess for solderless pipe connection according to DIN 3862
VL-01-BE-M4 Mounting plate with 1 outlet (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-02-BA-G1 Mounting plate with 2 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminium, G 1/8 according to DIN 3852-2, form X, small
VL-02-BA-G2 Mounting plate with 2 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminium, G 1/4 according to DIN 3852-2, form X, small
VL-02-BA-M3 Mounting plate with 2 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminum, M10x1 with recess for solderless pipe connection according to DIN 3862
VL-02-BA-M4 Mounting plate with 2 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-02-BE-G1 Mounting plate with 2 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-02-BE-G2 Mounting plate with 2 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-02-BE-M3 Mounting plate with 2 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), M10x1 with recess for solderless pipe connection according to DIN 3862
VL-02-BE-M4 Mounting plate with 2 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-03-BA-G1 Mounting plate with 3 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminium, G 1/8 according to DIN 3852-2, form X, small
VL-03-BA-G2 Mounting plate with 3 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-03-BA-M3 Mounting plate with 3 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminum, M10x1 with recess for solderless pipe connection according to DIN 3862
VL-03-BA-M4 Mounting plate with 3 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-03-BE-G1 Mounting plate with 3 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-03-BE-G2 Mounting plate with 3 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-03-BE-M3 Mounting plate with 3 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), M10x1 with recess for solderless pipe connection according to DIN 3862
VL-03-BE-M4 Mounting plate with 3 outlets (for threaded fittings), normal profile M10x1 with recess for flat washer or O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-04-BA-G1 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminium, G 1/8 according to DIN 3852-2, form X, small
VL-04-BA-G2 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminium, G 1/4 according to DIN 3852-2, form X, small
VL-04-BA-M3 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminum, M10x1 with recess for solderless pipe connection according to DIN 3862
VL-04-BA-M4 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-04-BE-G1 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-04-BE-G2 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-04-BE-M3 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), M10x1 with recess for solderless pipe connection according to DIN 3862
VL-04-BE-M4 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-05-BA-G1 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-05-BA-G2 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-05-BA-M3 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminum, M10x1 with recess for solderless pipe connection according to DIN 3862
VL-05-BA-M4 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-05-BE-G1 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-05-BE-G2 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-05-BE-M3 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), M10x1 with recess for solderless pipe connection according to DIN 3862
VL-05-BE-M4 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-06-BA-G1 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-06-BA-G2 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-06-BA-M3 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminum, M10x1 with recess for solderless pipe connection according to DIN 3862
VL-06-BA-M4 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-06-BE-G1 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-06-BE-G2 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-06-BE-M3 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), M10x1 with recess for solderless pipe connection according to DIN 3862
VL-06-AE-M4 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for flat washer or O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
