370 Metering Devices with Subsequent Lubrication Cycle

For single-line lubrication systems

The 370 Series metering units with a post-lubrication cycle are designed for single-line oil lubrication systems. These metering units are available with two, three, and five channels and are designed for direct installation on the equipment or system requiring lubrication. 370 Series metering units with fittings for connecting to a main line can be ordered by selecting the appropriate order code.

Technical characteristics and advantages

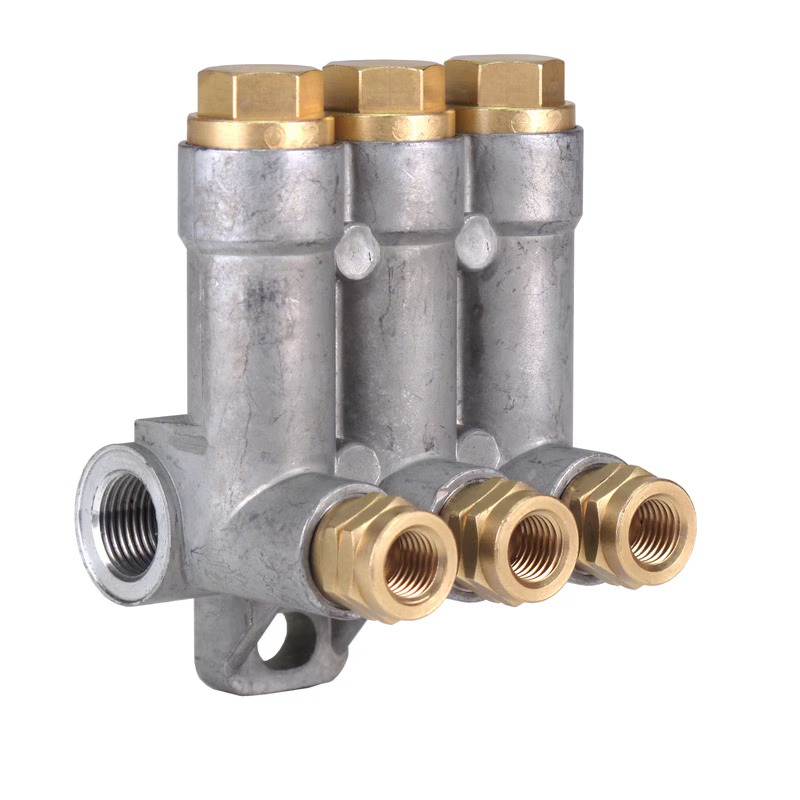

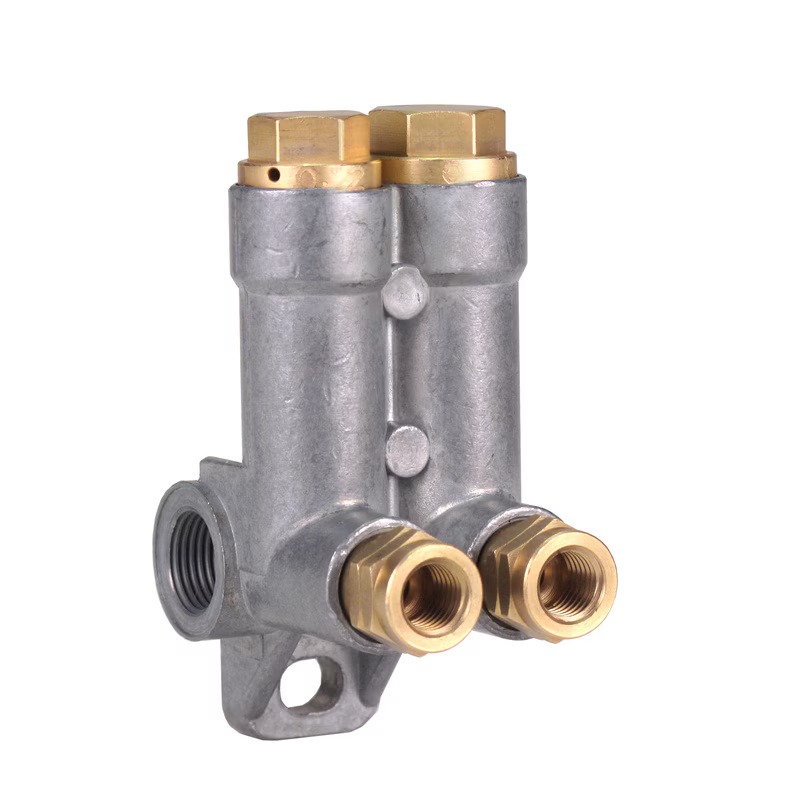

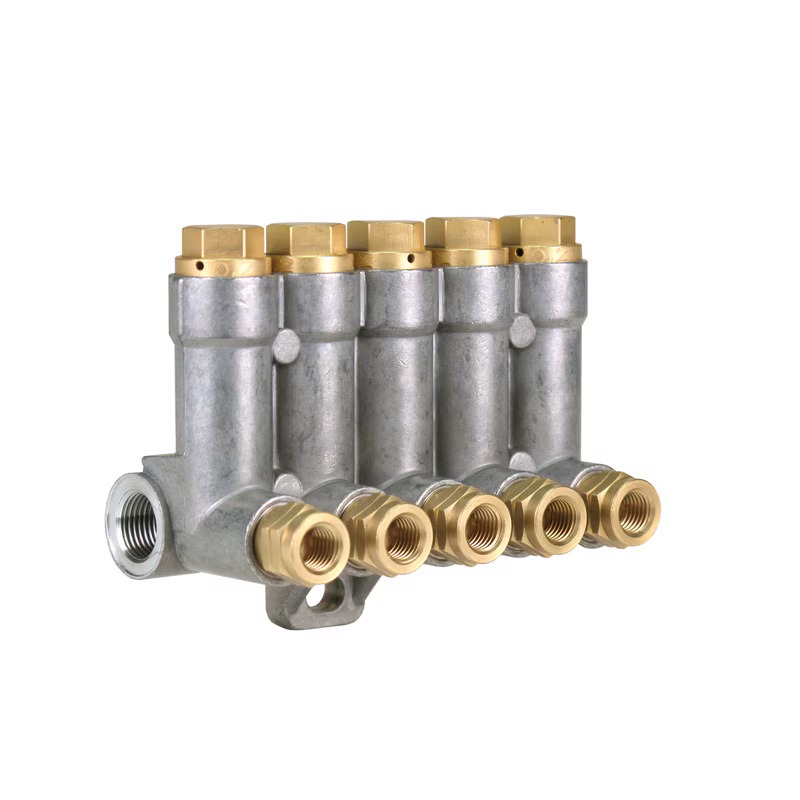

  • For use with distributor bodies having two, three and five channels according to the number of lubrication points
  • Installation directly on equipment/system requiring lubrication
  • Selection of metering nipples and push-in/threaded fittings for supply line connections
  • Selecting SKF quick-release couplings or threaded fittings for main pipelines
  • Metering nipples are easily replaced for different volumes of lubricant

Application areas

  • Machine tools
  • Printing machines
  • Packaging machines
  • Textile industry
  • Agriculture
Brochures and manuals
 Product brochure (2.0 MB)
Category:

Description

Technical specifications
Operating principle metering device with subsequent lubrication cycle 1)
Exits 2, 3 or 5
Dosage volume
oil 0.05–1.50 cm³ 0.003–0.091 in³
Lubricant mineral and synthetic oil, 20–2000 mm²/s, 0.031–3.100 in²/s
Operating temperature from −20 to +80 °C from -4 to +176 °F
Working pressure min. 20 bar
max 80 bar		 min. 290 psi
max 1160 psi
Relief pressure max 1 bar max 14.5 psi
Material cast zinc, brass, copper, steel, butadiene acrylonitrile rubber
Connection of the main pipeline
various fittings for tubes ø 6–12 mm 0.236–0.472 inches
thread plugs M 12×1
Output connection
tube ø 4 mm ø 0.16 inches
metering nipple (VS) with SKF quick-release coupling
metering nipple (00) for solderless pipe connections (DIN 3862)
Dimensions min. 37 × 75 × 50.5 mm
max. 88 × 75 × 56.5 mm		 1.456 x 2.952 x 1.988 inches
3.464 x 2.952 x 2.224 inches
Installation position any
  1. 1)
    Metering device with subsequent lubrication cycle = Indirect lubricant injector
    The spring pressure ensures that lubricant is supplied to the bearing.
Sample order
The product can be configured using a configuration code. The order template lists one possible part number and an explanation.
375-200-35363-BB
  • 370 Series Products
  • 5 dosing points
  • Design Code 2
  • Output connection 0VS
  • Dosing volume: 0.05 cm3, 0.20 cm3, 0.05 cm3, 0.40 cm3 and 0.05 cm3
  • Fittings for main pipeline connections:
    Solderless connection of pipes ø 6 mm, 0.23 inches
    Solderless connection of pipes ø 6 mm, 0.23 inches
You can configure your product using the CAD configurator below. This will provide you with a specific order number. More detailed information is available in the product catalog.

Configure the product, download the CAD file

Accessories

Interchangeable oil metering nipples 1)
Output, ø Elastomeric material Part numbers by dosing volume
mm inches 0.05 cm3
0.003 inches3		 0.10 cm3
0.006 inches3		 0.20 cm3
0.012 inches3		 0.40 cm3
0.024 inches3		 0.60 cm3
0.036 inches3		 0.60 cm3
0.036 inches3		 0.60 cm3
0.036 inches3
4 0,16 NBR V72-005 V72-010 V72-020 V72-040 V72-060 V72-100 V72-155
  1. 1)
    The metering nipples are made of brass.
