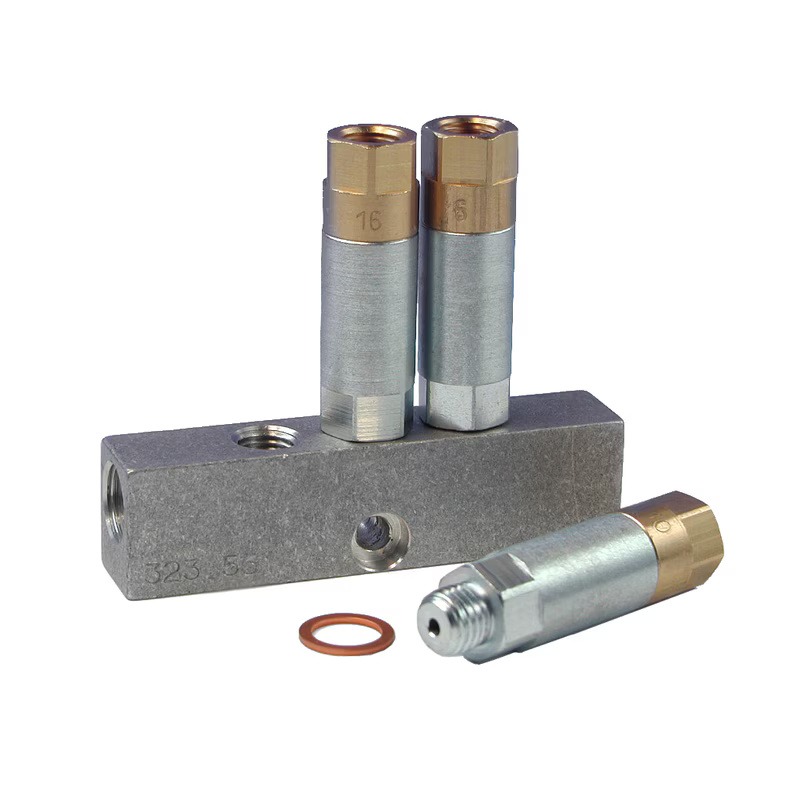

Дозирующие устройства 341 с предварительным циклом смазывания

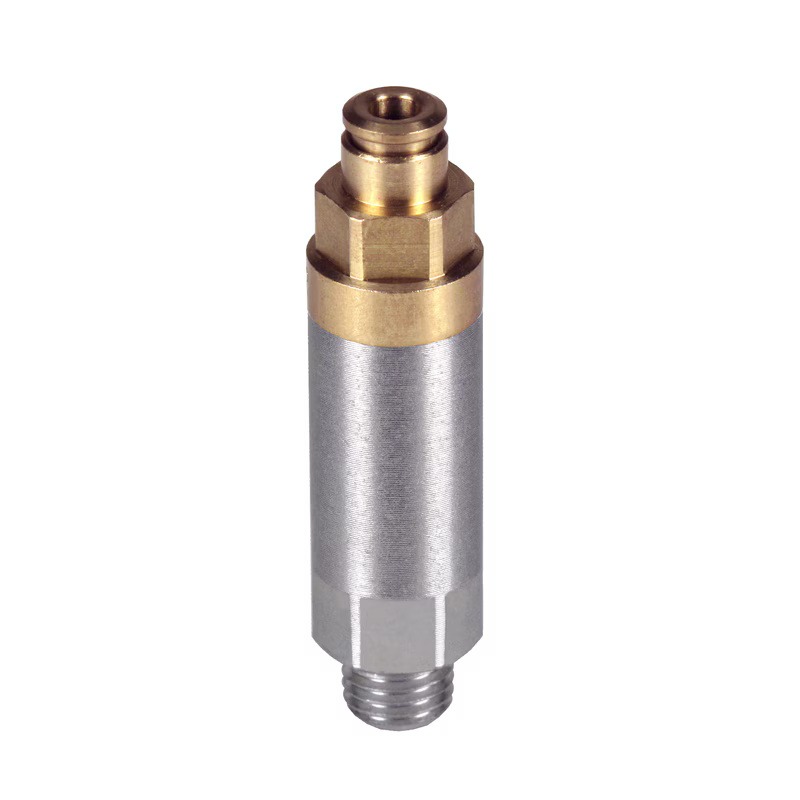

Дозирующие устройства 341 с предварительным циклом смазывания - Image 2

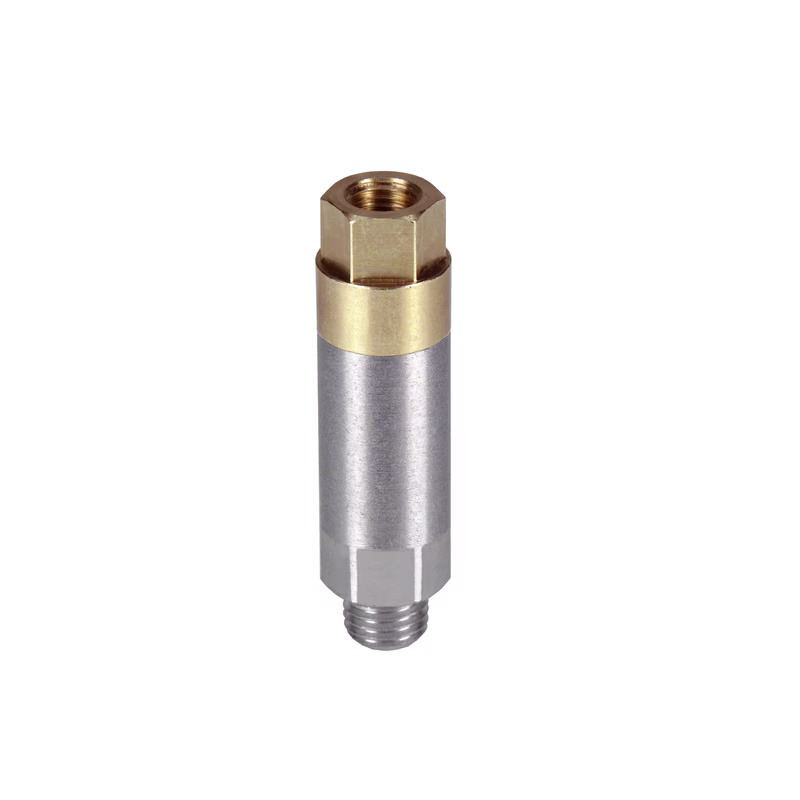

Дозирующие устройства 341 с предварительным циклом смазывания - Image 3

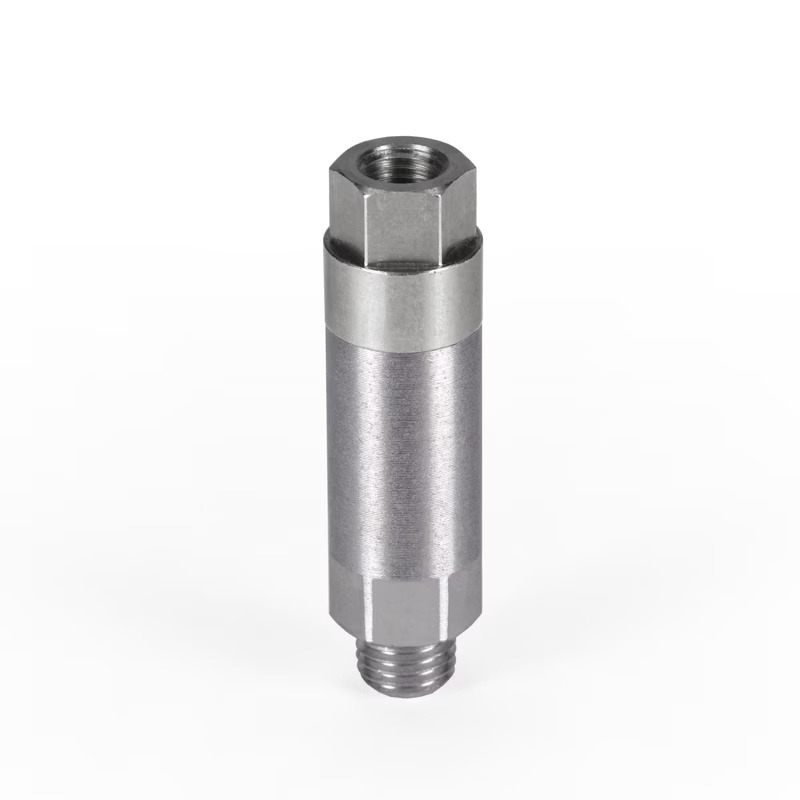

Дозирующие устройства 341 с предварительным циклом смазывания - Image 4

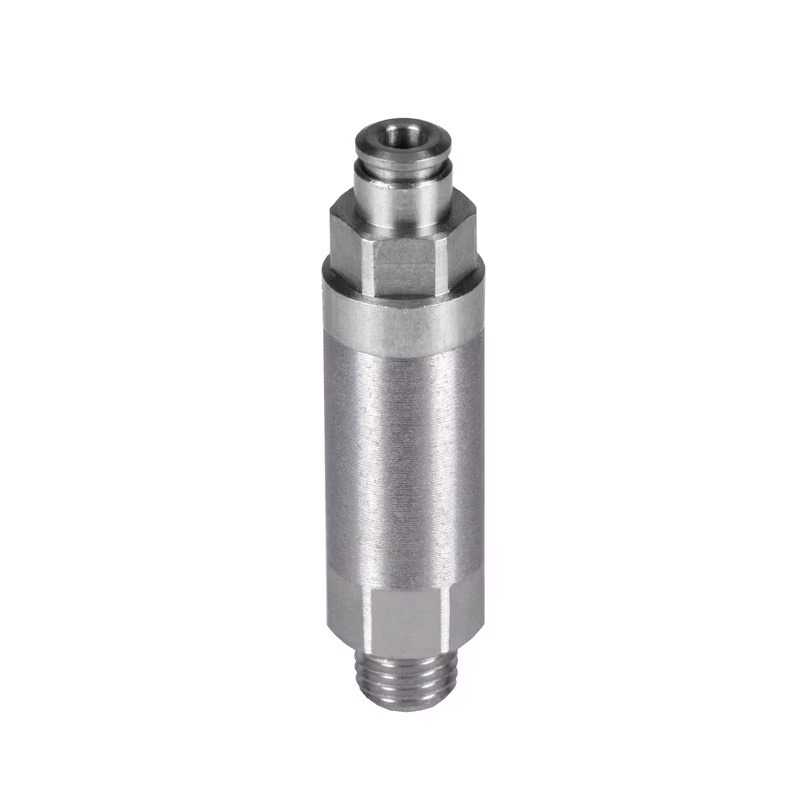

Дозирующие устройства 341 с предварительным циклом смазывания - Image 5

341 metering devices with pre-lubrication cycle

For single-line lubrication systems

The 341 Series pre-lubrication, single-channel metering units are panel-mounted and designed for single-line centralized oil and liquid lubrication systems. When used in conjunction with 1- to 6-channel metering units, these metering units offer flexible lubrication system design options. Mounting plates for the 351 Series metering units are available in aluminum and stainless steel.

Technical characteristics and advantages

  • For use with mounting panels having one to six channels according to the number of lubrication points
  • Provides flexibility for systems with remote individual lubrication points or multi-channel metering devices (up to 6)
  • The order code allows you to select push-in or threaded metering nipples for supply line connections.
  • Mounting panel models with different thread sizes for connections and main pipeline materials are selected separately.
  • Dosing nipples with a volume greater than 0.03 cm3 are replaced for different volumes of lubricant

Application areas

  • Machine tools
  • Printing machines
  • Packaging machines
  • Textile industry
Brochures and manuals
 Product brochure (2.0 MB)
Category:

Description

Technical specifications
Operating principle Dosing devices with pre-lubrication cycle 1)
Exits 1
Dosage volume
oil 0.01–0.16 cm³ 0.0006-0.0097 in³
liquid lubricant 0.03–0.10 cm³ 0.0018-0.0061 in³
Lubricant mineral and synthetic oil, 20–2000 mm²/s, 0.031–3.100 in²/s
liquid lubricant NLGI 000, 00
Operating temperature from 0 to 80 °C from 32 to 176 °F
Working pressure min. 6 bar
max 80 bar		 min. 87 psi
max 1160 psi
Relief pressure max 3 bar max 43.5 psi
Material Aluminum, steel (galvanized, Cr6-free), stainless steel, nickel-plated brass, brass, copper, FKM (FPM)/butadiene acrylonitrile rubber
Connection of the main pipeline
tube ø 6–10 mm 0.236 or 0.393 inches
solderless pipe connections for threads G 1/8; G 1/4
M 10×1 or M 14×1.5
Output connection
tube ø 2.5 and 4 mm ø 0.098 and 0.16 inches
with SKF quick-release coupling  metering nipple (VS)
for solderless pipe connection metering nipple (00)
Dimensions min. 43.5 × 12 mm
max 53 × 12 mm		 1.713 x 0.472 inches
2.086 x 0.472 inches
Installation position any
  1. 1)
    Pre-lubrication metering device = Direct feed injector
    The pump pressure directly supplies lubricant to the bearing.
Sample order
The product can be configured using a configuration code. The order template lists one possible part number and an explanation.
341-200-10000-00
  • 340 Series Products
  • 1 dosing point
  • Design code 2 (for oil; outlet ø 2.5 mm; metering nipple material: brass, elastomer based on butadiene acrylonitrile rubber)
  • Output connection 00
  • Dosing volume: 0.01 mm3
You can configure your product using the CAD configurator below. This will provide you with a specific order number.

Configure the product, download the CAD file

Accessories

Mounting panels
Manifolds for single-line metering devices_12_1 For 341 metering devices, VL mounting plates with 1–6 outlets (for threaded fittings) with M8x1 mm threads for O-ring seals or copper flat sealing washers are used. Standard profile mounting plates are available in aluminum and stainless steel, while narrow profile mounting plates are only available in aluminum.
Ordering Information - Mounting Panels
Part number Description
VL-01-AA-G1 Mounting plate with 1 outlet (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminium, G 1/8 according to DIN 3852-2, form X, small
VL-01-AA-G2 Mounting plate with 1 outlet (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminium, G 1/4 according to DIN 3852-2, form X, small
VL-01-AA-M3 Mounting plate with 1 outlet (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M10x1 with recess for solderless connection
VL-01-AA-M4 Mounting plate with 1 outlet (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-01-AE-G1 Mounting plate with 1 outlet (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-01-AE-G2 Mounting plate with 1 outlet (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-01-AE-M3 Mounting plate with 1 outlet (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M10x1 with recess for solderless connection
VL-01-AE-M4 Mounting plate with 1 outlet (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-01-DA-G1 Mounting plate with 1 outlet (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-01-DA-G2 Mounting plate with 1 outlet (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-01-DA-M3 Mounting plate with 1 outlet (for threaded fittings), small profile, M8x1 without recess, aluminum, M10x1 with recess for solderless connection
VL-02-AA-G1 Mounting plate with 2 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-02-AA-G2 Mounting plate with 2 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-02-AA-M3 Mounting plate with 2 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M10x1 with recess for solderless connection
VL-02-AA-M4 Mounting plate with 2 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-02-AE-G1 Mounting plate with 2 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-02-AE-G2 Mounting plate with 2 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-02-AE-M3 Mounting plate with 2 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M10x1 with recess for solderless connection
VL-02-AE-M4 Mounting plate with 2 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-02-DA-G1 Mounting plate with 2 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-02-DA-G2 Mounting plate with 2 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-02-DA-M3 Mounting plate with 2 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, M10x1 with recess for solderless connection
VL-03-AA-G1 Mounting plate with 3 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-03-AA-G2 Mounting plate with 3 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-03-AA-M3 Mounting plate with 3 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M10x1 with recess for solderless connection
VL-03-AA-M4 Mounting plate with 3 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-03-AE-G1 Mounting plate with 3 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-03-AE-G2 Mounting plate with 3 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-03-AE-M3 Mounting plate with 3 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M10x1 with recess for solderless connection
VL-03-AE-M4 Mounting plate with 3 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-03-DA-G1 Mounting plate with 3 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-03-DA-G2 Mounting plate with 3 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-03-DA-M3 Mounting plate with 3 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, M10x1 with recess for solderless connection
VL-04-AA-G1 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-04-AA-G2 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-04-AA-M3 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M10x1 with recess for solderless connection
VL-04-AA-M4 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-04-AE-G1 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-04-AE-G2 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-04-AE-M3 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M10x1 with recess for solderless connection
VL-04-AE-M4 Mounting plate with 4 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-04-DA-G1 Mounting plate with 4 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-04-DA-G2 Mounting plate with 4 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-04-DA-M3 Mounting plate with 4 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, M10x1 with recess for solderless connection
VL-05-AA-G1 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-05-AA-G2 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-05-AA-M3 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M10x1 with recess for solderless connection
VL-05-AA-M4 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-05-AE-G1 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-05-AE-G2 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-05-AE-M3 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M10x1 with recess for solderless connection
VL-05-AE-M4 Mounting plate with 5 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-05-DA-G1 Mounting plate with 5 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-05-DA-G2 Mounting plate with 5 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-05-DA-M3 Mounting plate with 5 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, M10x1 with recess for solderless connection
VL-06-AA-G1 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-06-AA-G2 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-06-AA-M3 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M10x1 with recess for solderless connection
VL-06-AA-M4 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, aluminum, M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-06-AE-G1 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/8 according to DIN 3852-2, form X, small
VL-06-AE-G2 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), G 1/4 according to DIN 3852-2, form X, small
VL-06-AE-M3 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M10x1 with recess for solderless connection
VL-06-AE-M4 Mounting plate with 6 outlets (for threaded fittings), normal profile M8x1 with recess for O-ring, stainless steel (1.4305), M14x1.5 with recess for solderless pipe connection according to DIN 3862
VL-06-DA-G1 Mounting plate with 6 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/8 according to DIN 3852-2, form X, small
VL-06-DA-G2 Mounting plate with 6 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, G 1/4 according to DIN 3852-2, form X, small
VL-06-DA-M3 Mounting plate with 6 outlets (for threaded fittings), small profile, M8x1 without recess, aluminum, M10x1 with recess for solderless connection
