    Refillable automatic grease dispensers

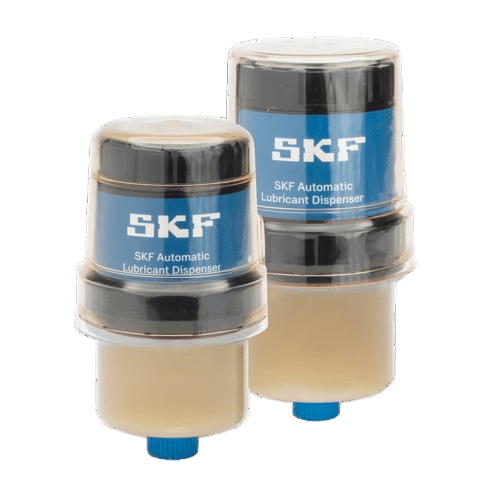

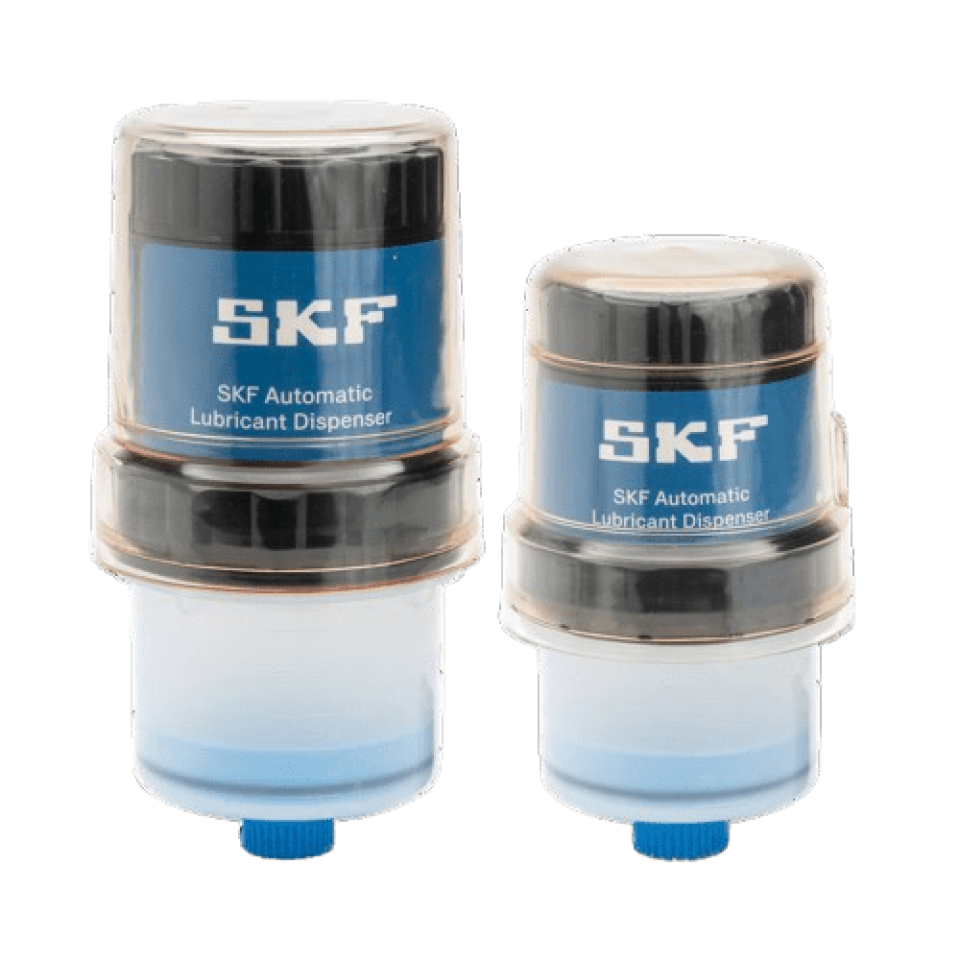

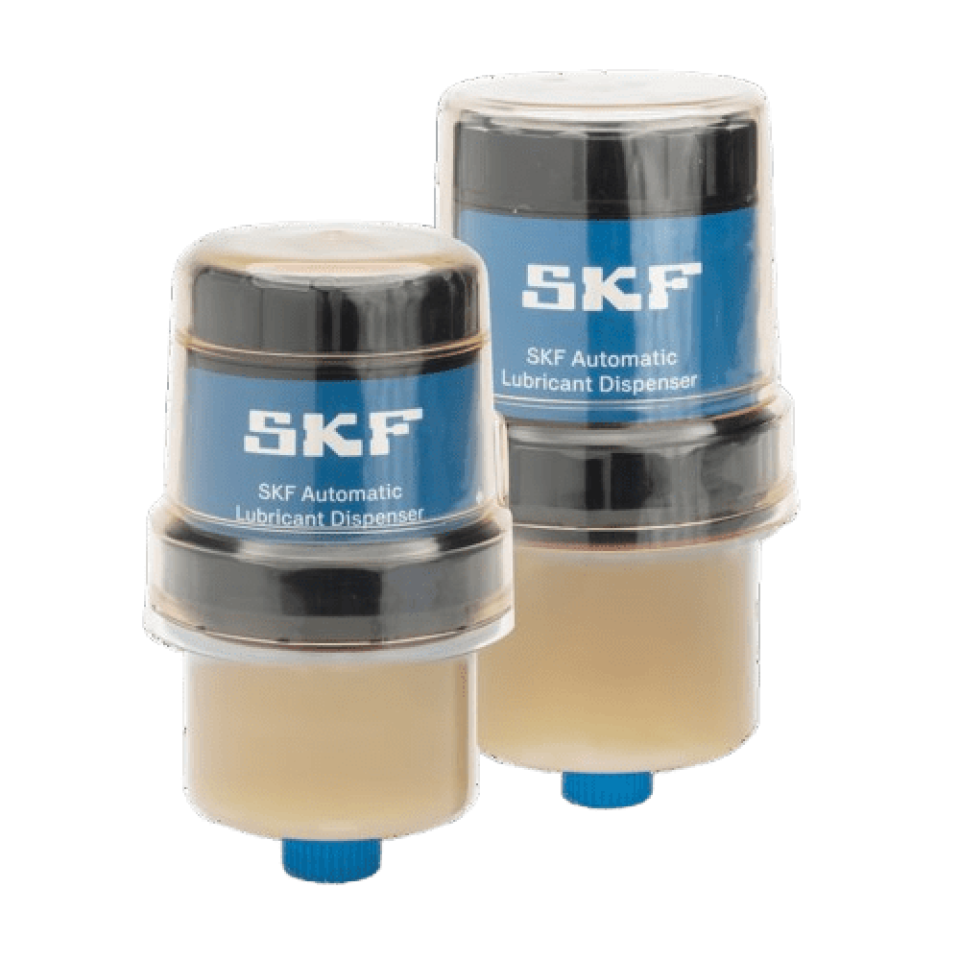

    • TLRD series

      The TLRD series is a refillable electro-mechanical single-point grease dispenser, which can be reused by simply refilling it with fresh grease and installing it with a new battery pack. It brings additional value compared to gas-driven lubricators as it can be operated under variable temperatures, or when the application conditions require a remote mounting (in case of vibration, limited space, or hazardous environment), or when a simple filling/refilling process is required.

      Features & benefits

      • Available in 2 sizes (150 and 250 ml)
      • To be filled with any compatible grease (it is supplied without lubricant)
      • Can be filled and refilled easily with a standard grease gun/pump
      • Maximum discharge pressure of 5 bars over the full dispensing period
      • Visual inspection is easy through the translucent reservoir
      • Normal / abnormal working conditions are indicated by a LED
      • Connection nipples and other installation accessories are available
      • Suitable for both direct and remote installation

      Typical applications

      • Applications in restrictive and hazardous locations
      • Bearing housing lubrication
      • Electric motors
      • Fans and pumps
      • Conveyors
      • Cranes
      • Food and beverage processing machinery
      • Many more
    +7 701 419 2752

    Ordering details
    Designation Description

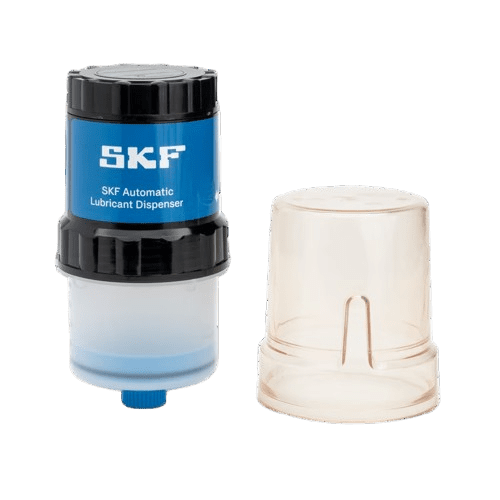

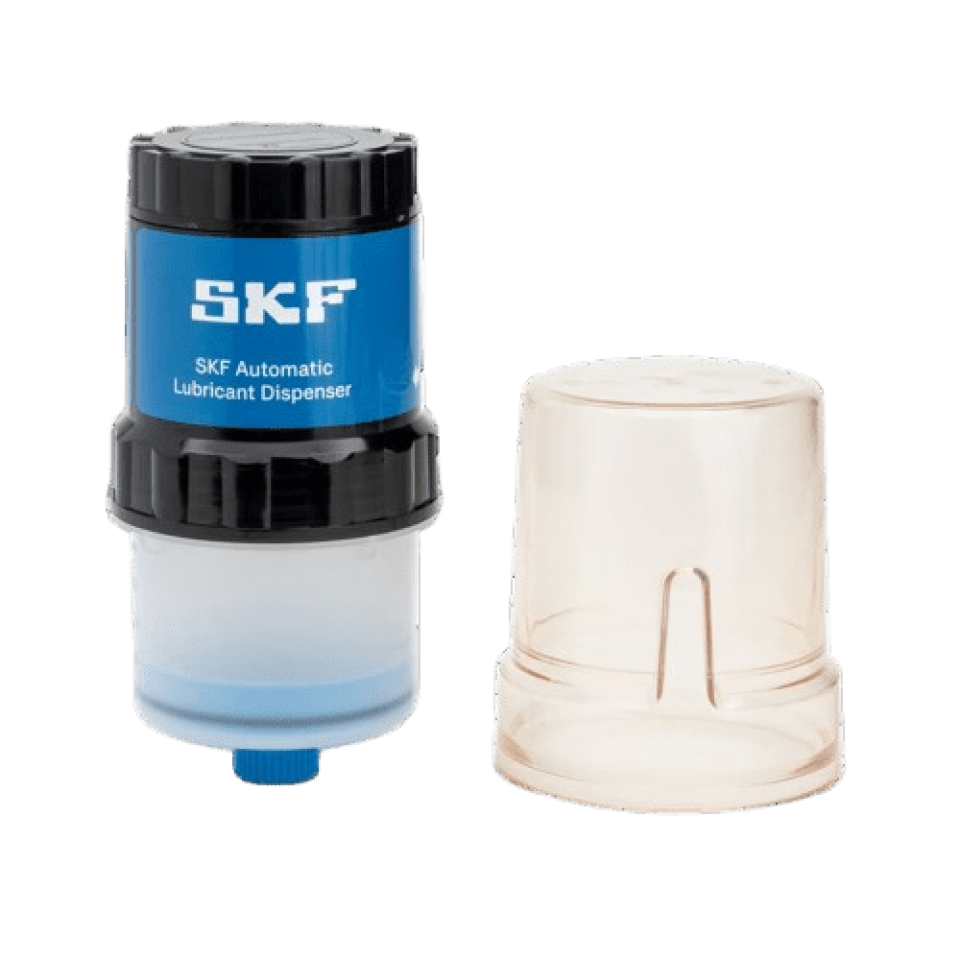

    TLRD 150 Drive unit kit (150 ml) incl. empty cartridge, drive unit with cap and battery pack
    TLRD 250 Drive unit kit (250 ml) incl. empty cartridge, drive unit with cap and battery pack
    TLRD 1-FA Filling adapter (all cartridges)
    Technical data
    Designation TLRD 150 TLRD 250
    Approx. dimensions 152 × 89 mm (6 × 3.5 in.) 196 × 102 mm (7.7 × 4 in.)
    Weight 0.58 kg (1.28 lb) 0.68 kg (1.50 lb)
    Grease capacity 150 ml (5.1 fl. oz US) 250 ml (8.5 fl. oz US)
    Time setting Adjustable 1 to 12 months Adjustable 1 to 12 months
    Outlet interface G½ G½
    Ambient temperature range -20 to + 60 °C (-4 to +140 °F) -20 to + 60 °C (-4 to +140 °F)
    Operating pressure range Up to 5 bar Up to 5 bar
    Electrical rating 6V CR-P2 Lithium (1400mAh) 6V CR-P2 Lithium (1400mAh)
    Storage temperature range 0 to 50 °C (32 to 122 °F) 0 to 50 °C (32 to 122 °F)
    Drive mechanism Electro-mechanical Electro-mechanical
    Maximum feed line length Up to 3 meters (10 ft) Up to 3 meters (10 ft)
    Protection class assembled lubricator IP 65 IP 65

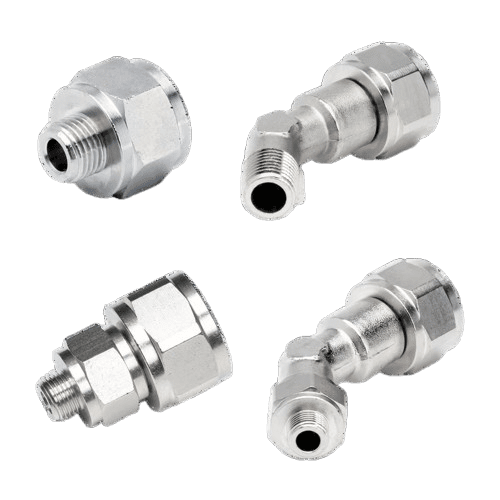

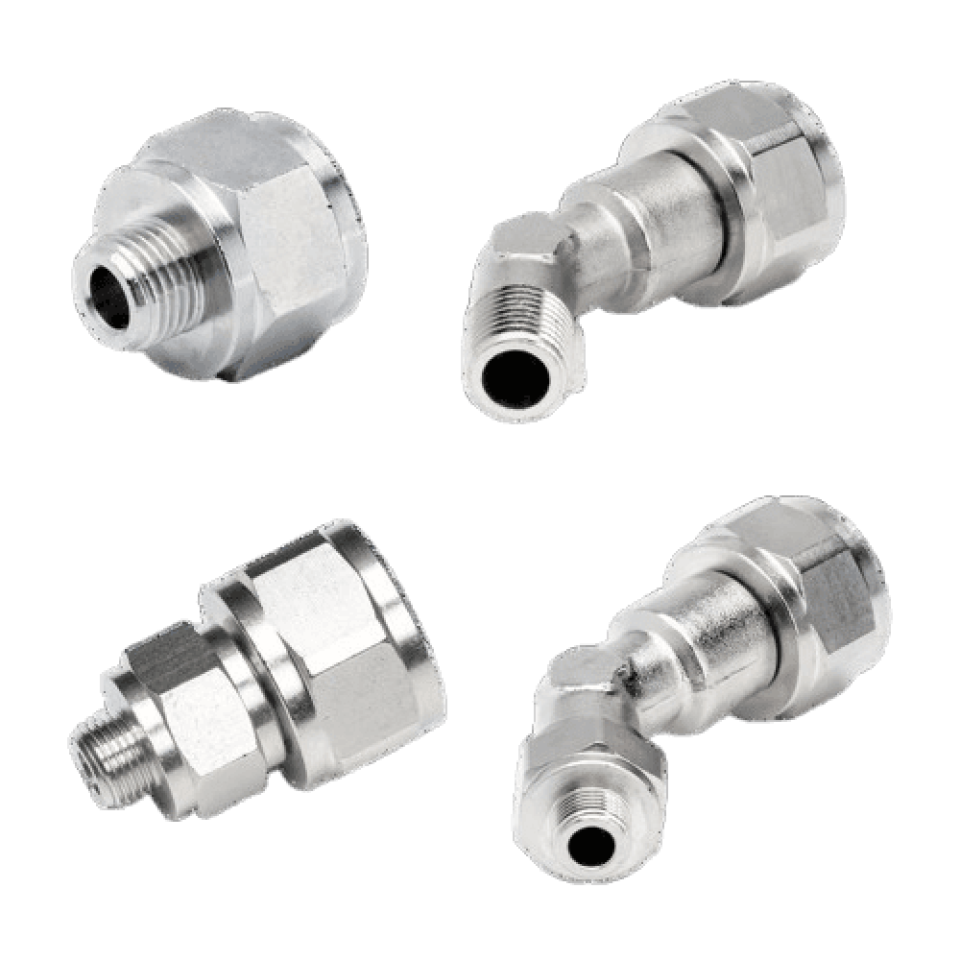

    Accessories
    Designation Description
    LAPR 1/4 Nipple G1/2F – G1/4M
    LAPR 1/8 Nipple G1/2F – G1/8M
    LAPR A1/4 Angle connection 45°, G1/2F — G1/4M
    LAPR A1/8 Angle connection 45°, G1/2F — G1/8M
    LAPC R1/4 Support bracket 1/2” (F) — 1/4” (M)
    LAPA 45 Angle connection 45°, G1/4M
    LAPA 90 Angle connection 90°, G1/4M
    LAPN 1/4UNF Nipple G 1/4 – 1/4 UNF
    LAPN 1/2 Nipple G 1/4 — G 1/2
    LAPN 1/4 Nipple G 1/4 — G 1/4
    LAPN 1/8 Nipple G 1/4 — G 1/8
    LAPN 3/8 Nipple G 1/4 — G 3/8
    LAPN 6 Nipple G 1/4 — M6
    LAPN 8 Nipple G 1/4 — M8
    LAPN 8 Nipple G 1/4 — M8
    LAPN 8×1 Nipple G 1/4 — M8 × 1
    LAPN 10 Nipple G 1/4 — M10
    LAPN 10×1 Nipple G 1/4 — M10 × 1
    LAPN 12 Nipple G 1/4 — M12
    LAPN 12×1.5 Nipple G 1/4 — M12 × 1.5
    LAPE 50 Extension 50 mm  (G1/4F — G1/4M)
    LAPE 35 Extension 35 mm (G1/4F — G1/4M)
    LAPF F1/4 Tube connection female G 1/4
    LAPF M1/8 Tube connection male G 1/8
    LAPF M1/4 Tube connection male G 1/4
    LAPF M3/8 Tube connection male G 3/8
    LAPT 1000 Flexible tube, 1000 mm long, 8 × 6 mm
    LAPT 5000 Flexible tube, 5000 mm long, 8 × 6 mm
    LAPT 5000SW Extra strong flexible tube, 5 000 mm long, 8 × 6 mm
    Spare parts
    Designation Description

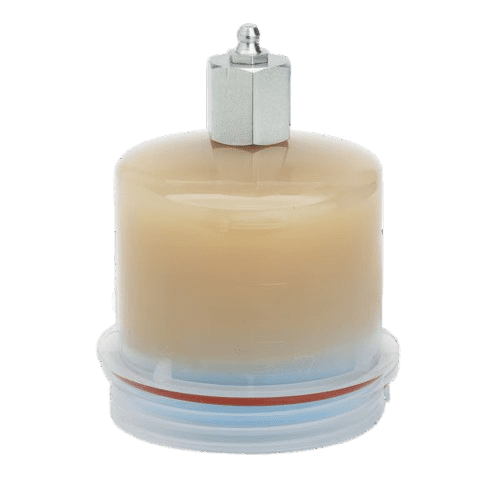

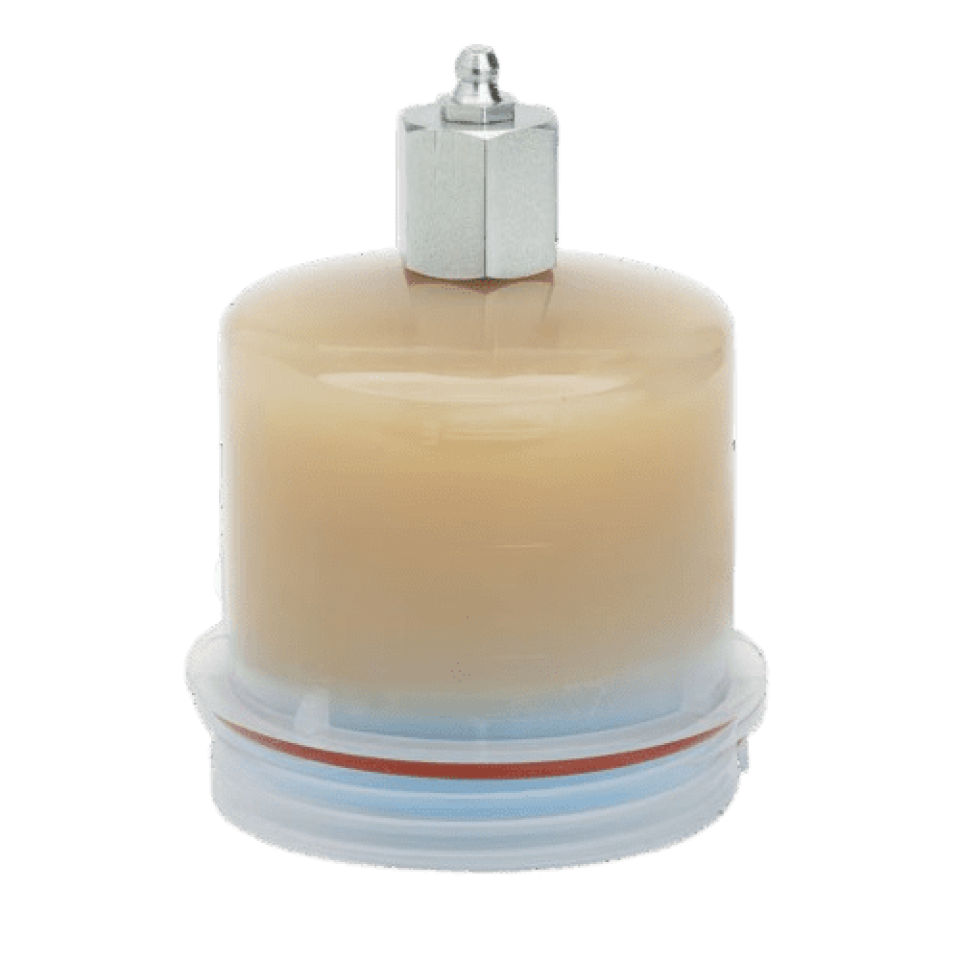

    TLRD 1-RD150 Empty cartridge (150 ml capacity)
    TLRD 1-RD250 Empty cartridge (250 ml capacity)
