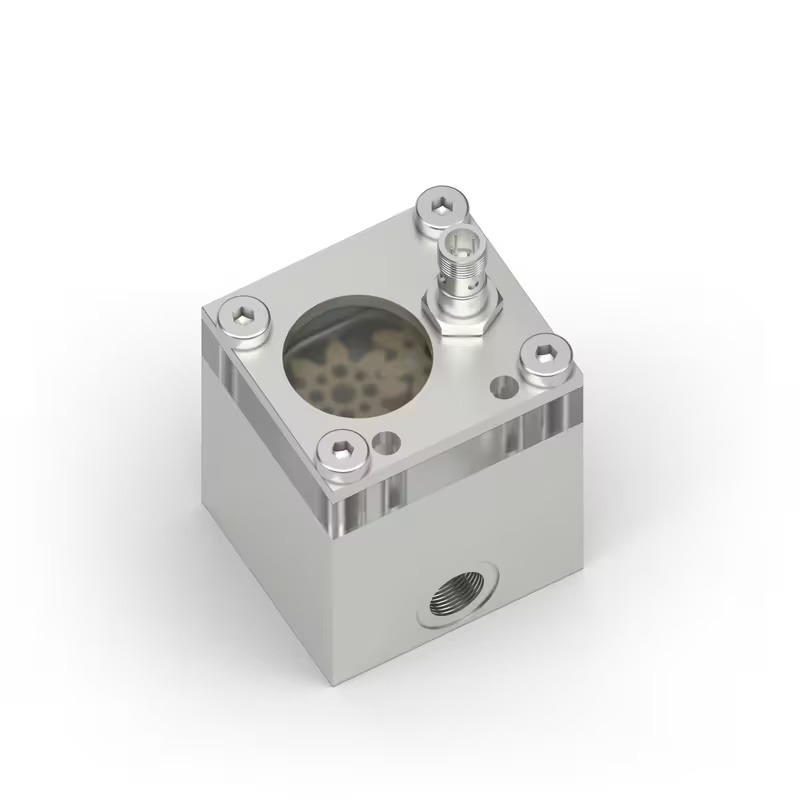

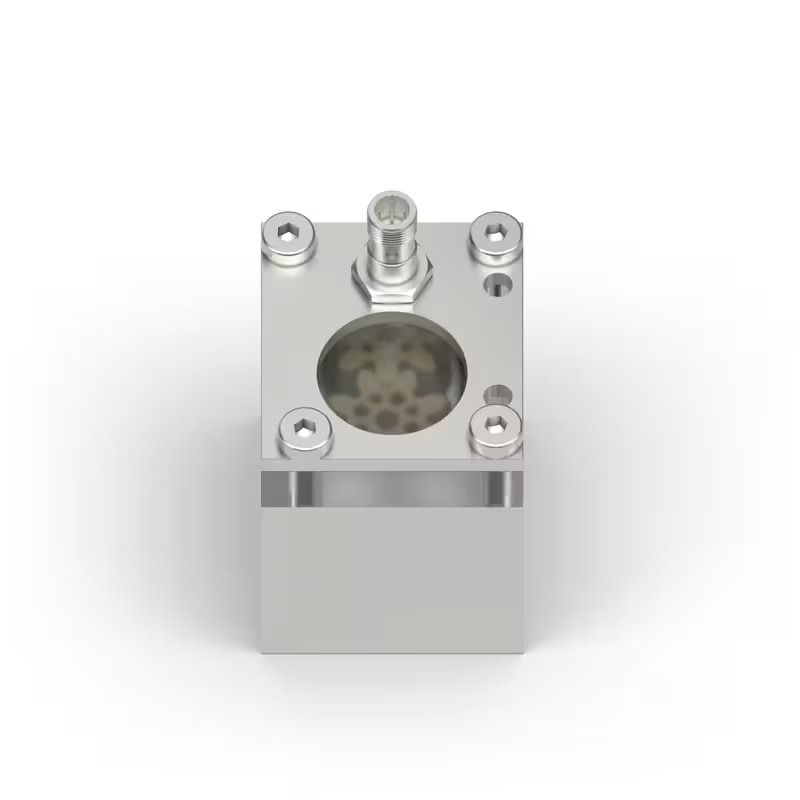

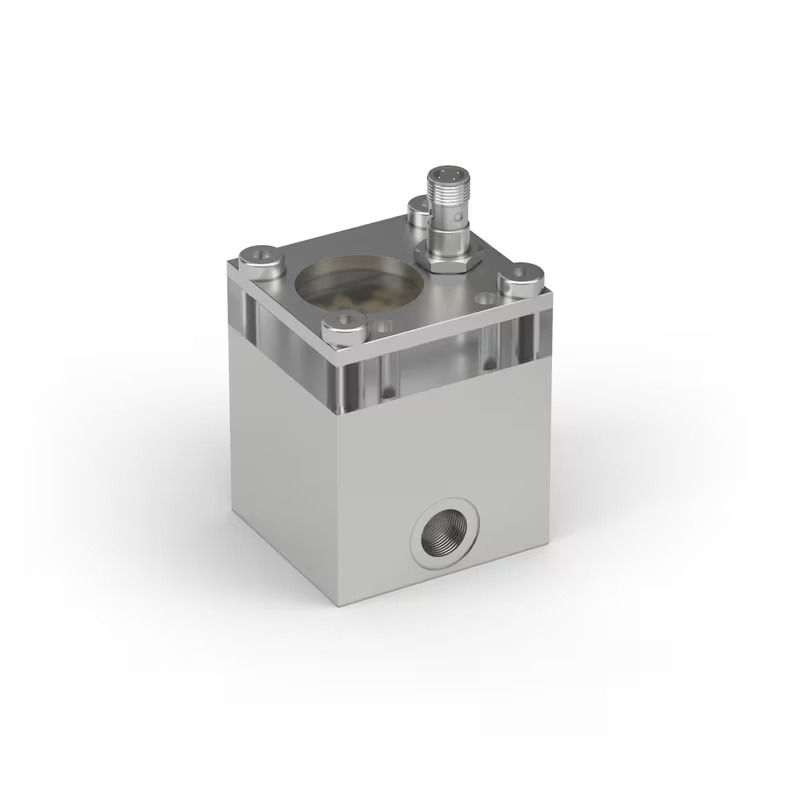

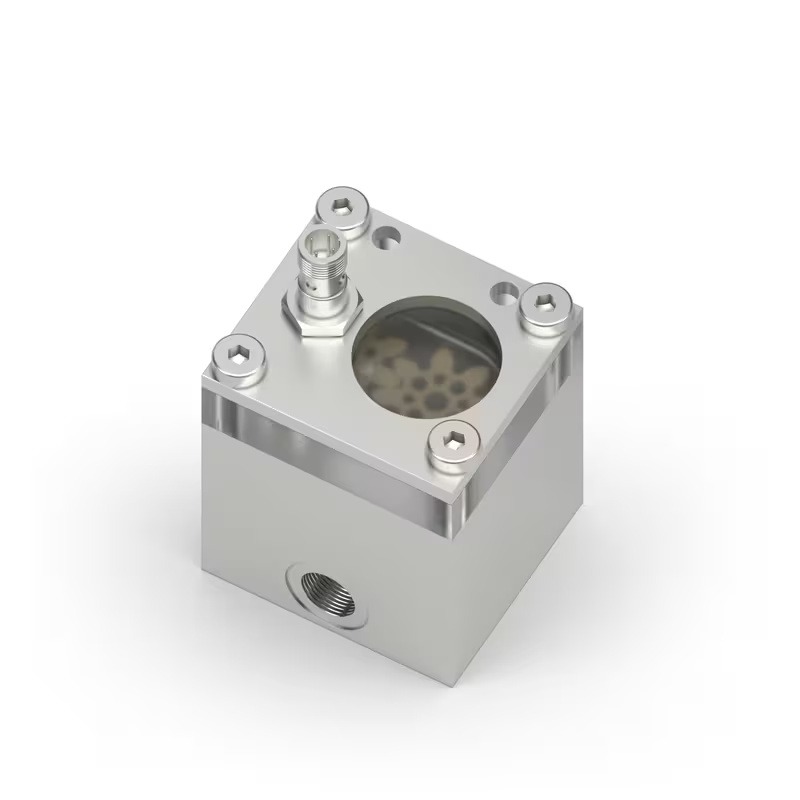

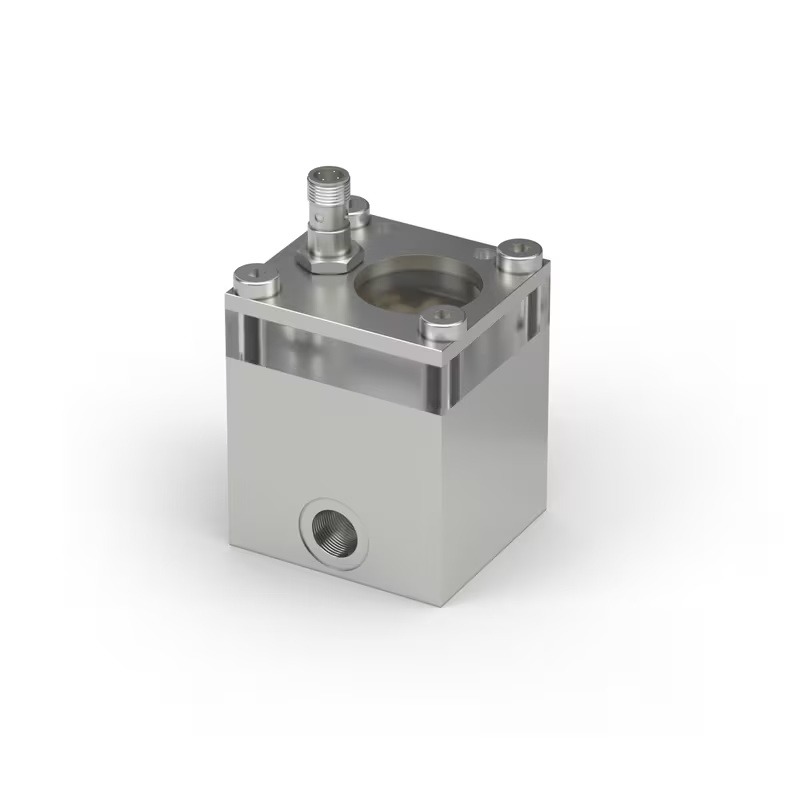

    Шестерёнчатый индикатор SFZM

    • For precise flow rate monitoring in oil circulation systems

      The SFZM gear wheel indicator is an oil flow monitoring device. It offers robust flow monitoring of lubrication points even under harsh environmental conditions. Its gear wheel measuring principle is based on the flow limiter technology. SFZM flow meters have a compact design and have small installation dimensions. At the same time, they allow a wide range of flow rates from 0,09 l/min to 8,0 l/min. This allows the use in a wide variety of applications. SFZM gear wheel indicators can also be used as monitoring device for self-adjusting circuits.

      Features and benefits

      • Compact and light weight design
      • Corrosion resistant, robust aluminum body
      • Three versions with different resolutions from 3, 6 to 12 ml/pulse
      • Upper-level process control connectivity
      • Gear-wheel-type measuring principle
      • Atex design available on request
      • Sight glass for visual monitoring

      applications

      • Pulp and paper industry
      • Automobile body presses
      • Mining and mineral processing
      • Metals industry
    +7 701 419 2752

    Gear wheel indicator SFZM

    Данный раздел:
    ИНФОРМАЦИЯ ДЛЯ ЗАКАЗА

    Technical data
    Function principle gear wheel indicator
    Lubricant mineral and synthetic oils
    viscosity 20–600 mm2/s
    Operating temperature -20 to +70 °C -4 to 158 °F
    Operating pressure max. 50 bar max. 725 psi
    Flow rate 0,09–8,0 l/min 0.19–16.90 pts/min
    Material Al, Cu, Mg, Si
    Connection inlet G3/8
    Connection inlet G3/8
    Dimensions
    SFZM-X0… 63 x 69 x 93 mm 2.48 x 2.71 x 3.66 in
    SFZM-X1… 63 x 69 x 108 mm 2.48 x 2.71 x 4.25 in
    Weight 0,9 kg 1.98 lbs
    Mounting position any
    Details pulse generator
    Switch function NO, PNP
    Output type inductive, 3-wire
    Installation flush-mounted
    Sensing distance 4 mm
    Secured sensing distance 0–3,24 mm
    Switching frequency max. 500 Hz
    Operating voltage 10–30 V DC
    Hysteresis typ. 5%
    Voltage drop ≦3 V
    Operating current 0–150 mA
    Residual current 0–0,5 mA, typ. 0,1 µA
    Circuit state display LED yellow
    Protection class IP 67
    Short circuit protection intermittent
    Polarity reversal protection yes
    Plug connector M12x1, 4-pin
    Order information
    Part number Designation Monitoring Resolution Pulse Connection (cable and plug) included Cable length
    ml/pulse pulse/l m/l ft
    6788-00000039 SFZM-X01XX-G visual 3 333 — — —
    6788-00000040 SFZM-X02XX-G visual 6 167 — — —
    6788-00000016 SFZM-X03XX-G visual 12 83 — — —
    6788-00000041 SFZM-X11XX-G visual/electrical 3 333 — — —
    6788-00000042 SFZM-X12XX-G visual/electrical 6 167 — — —
    6788-00000043 SFZM-X13XX-G visual/electrical 12 83 — — —
    6788-00000001 SFZM-X11CS-G visual/electrical 3 333 cable with straight connector 2,00 6.56
    6788-00000027 SFZM-X12CS-G visual/electrical 6 167 cable with straight connector 2,00 6.56
    6788-00000012 SFZM-X13CS-G visual/electrical 12 83 cable with straight connector 2,00 6.56
    6788-00000044 SFZM-X11CA-G visual/electrical 3 333 cable with angled connector 5,00 16.40
    6788-00000045 SFZM-X12CA-G visual/electrical 6 167 cable with angled connector 5,00 16.40
    6788-00000046 SFZM-X13CA-G visual/electrical 12 83 cable with angled connector 5,00 16.40
    6788-00000047 SFZM-X11XS-G visual/electrical 3 333 straight connector — —
    6788-00000048 SFZM-X12XS-G visual/electrical 6 167 straight connector — —
    6788-00000017 SFZM-X13XS-G visual/electrical 12 83 straight connector — —
    6788-00000049 SFZM-X11XA-G visual/electrical 3 333 angled connector — —
    6788-00000050 SFZM-X12XA-G visual/electrical 6 167 angled connector — —
    6788-00000051 SFZM-X13XA-G visual/electrical 12 83 angled connector — —
