Designation | TLGB 1886-E |
Display | Battery capacity gauge |
Alert of blocked fittings | |
Alert of loss of prime | |
Grease output | |
— Low speed setting | 100 ml/min. (3.5 oz/min.) at 70 bar pressure |
— High speed setting | 284 ml/min (10 oz/min) at 70 bar pressure |
Maximum operating pressure | 550 bar (8 000 psi) |
Maximum peak pressure | 700 bar (10 000 psi) |
Cartridges per battery charge | 8.6 cartridges (200 bar counter pressure, low speed) |
18 cartridges (free flow) | |
Length of hose | 1220 mm (48 in) |
Battery type | Li-Ion |
Battery output | 20V |
Battery capacity | 2 500 mAh |
Voltage charger, V/Hz | 200–240 V/50–60 Hz |
Carrying case dimensions | 650×140×393 mm (25.6×5.5×15.5 in) |
Weight | 3.4 kg (7.5 lb) |
Total weight (incl.case) | 7.86 kg (17.33 lb) |

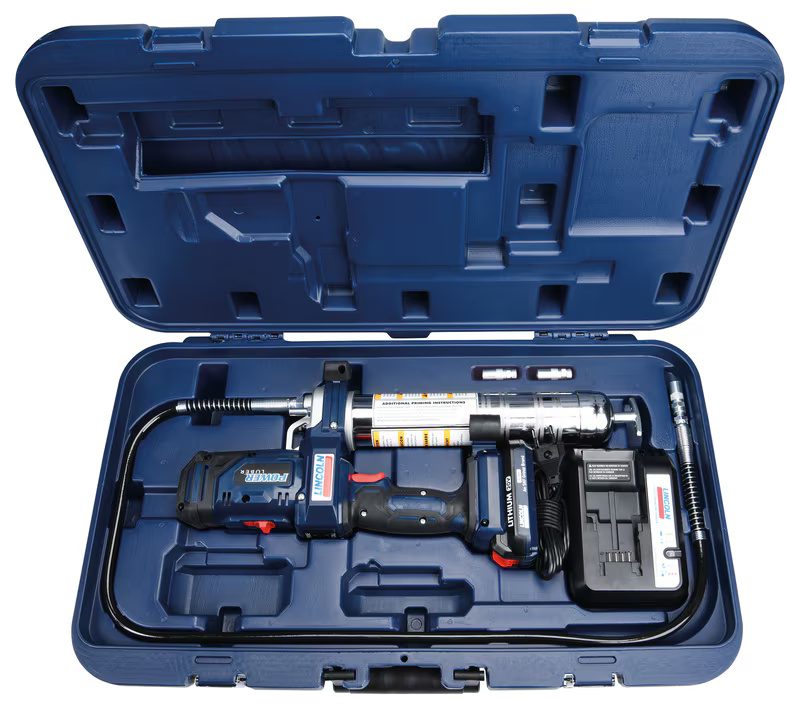

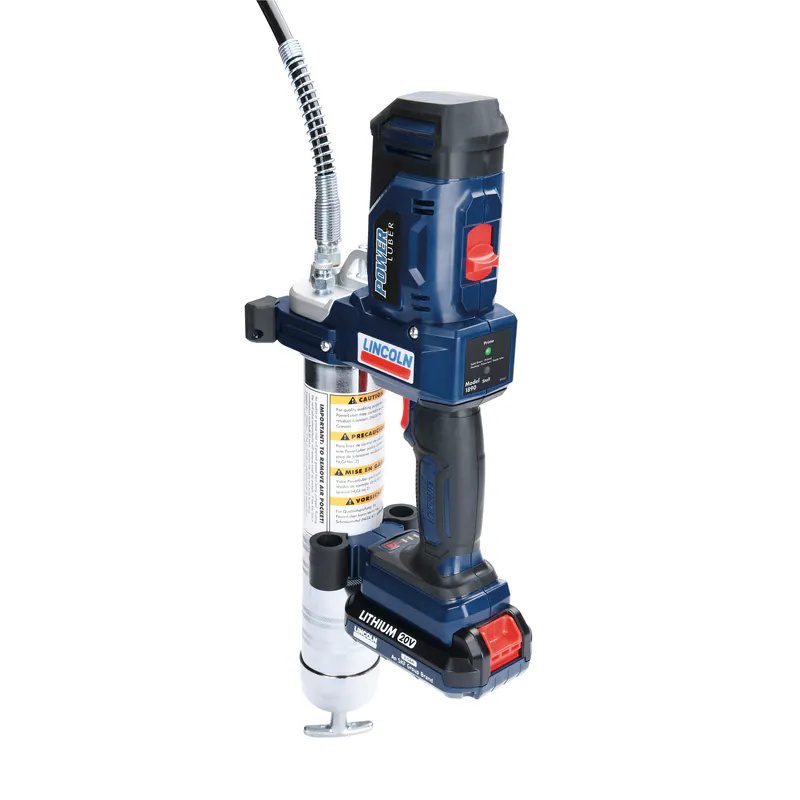

Battery-driven grease gun TLGB 1886-E
-
For intensive use in challenging environments
The TLGB 1886-E battery-driven grease gun offers the key features you need for tough jobs. The versatility of the two-speed design enables you to address all lubrication points with a single tool, protecting your equipment from costly repair and downtime. The tool’s high-ratio gearing will move large quantities of grease quickly when needed, while its low gearing supports deliveries of up to 700 bar.
Thanks to its ergonomic rugged design, high-performance motor positioning and efficient handling, the TLGB 1886-E has been designed to withstand the intensive use found in demanding industries such as agriculture, construction, automotive, trucking, heavy equipment and wind energy.
- High performance for intensive use
- Built-in LED illuminates the work area
- LED indicators identify loss of prime, empty cartridge or blocked fittings
- Trapped air inside of the grease gun can be easily removed with the vent valve to restore priming
- High-pressure hose with protective anti-kink spring guards on each end
- Heavy-duty composite body with protective rubber overmold
- Easily and cleanly filled from drums with filler pumps
- Battery charge LED indicator
Designation | Description |

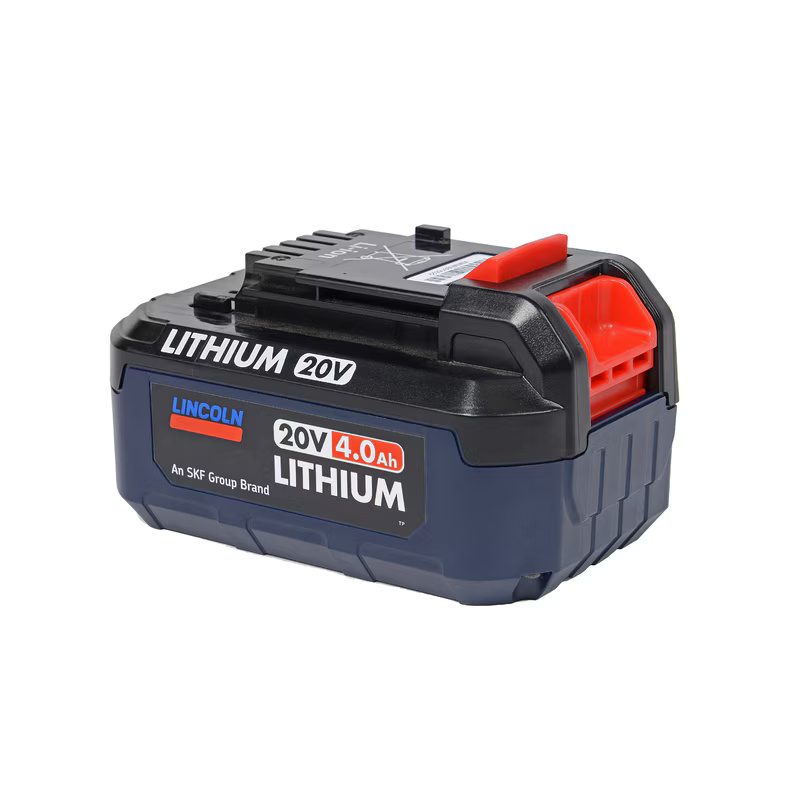

TLGB 21-9 | 20V 4.0 Ah Li-Ion battery |
TLGB 1875A | 12/24V battery charger for 12/20V (Li-Ion) grease guns (for battery charging in a car, truck or tractor with cigarette lighter plug). |

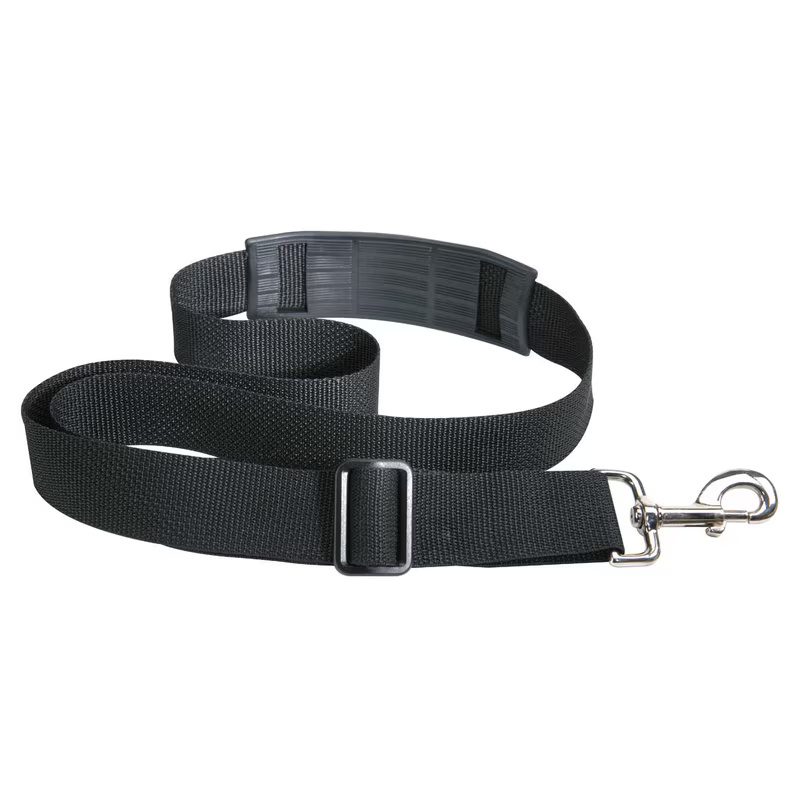

TLGB 21-1 | Shoulder strap |
TLGB 20-3 | High pressure hose 900 mm (36 in) with coupler for battery driven grease gun |
Designation | Description |
TLGB 1-1 | Filler nipple for filling the grease gun from LAGF 18 or LAGF 50 filler pumps |
TLGB 21-2 | 20V 2.5 Ah Li-Ion battery |
TLGB 20-4 | Grease tube assembly for battery-driven grease gun |
TLGB 21-5 | Charger 220-240V for battery-driven grease gun |
